1. Remove the second seat assembly (Refer to GROUP 52A - Second Seat Assembly

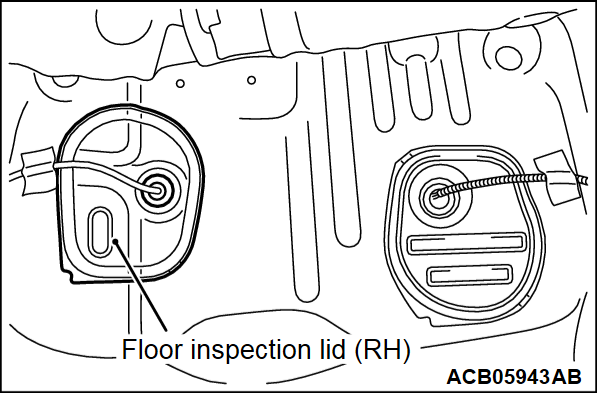

) and turn up the floor carpet. 2. Remove the floor inspection lid (RH).

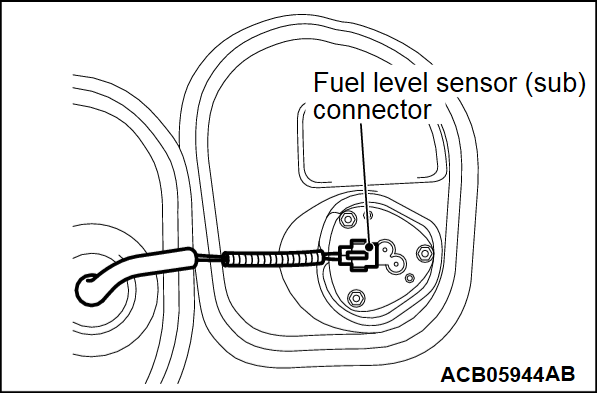

3. Disconnect the fuel level sensor (sub) connector.
4. | caution | Pay attention not to damage the fuel level sensor (sub) and the float of the fuel level sensor (sub) when withdrawing it from the service hole. |

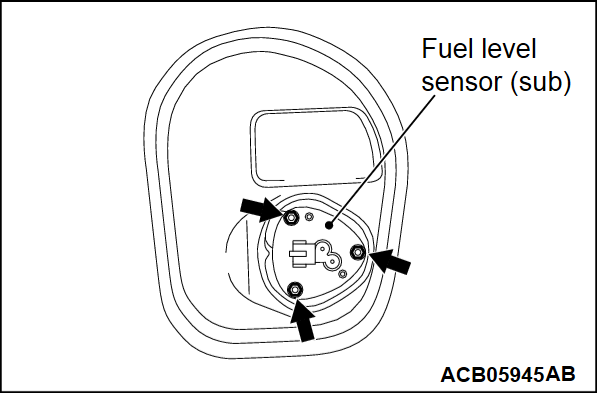

Remove the fuel level sensor (sub) mounting nuts, and remove the fuel level sensor (sub) from service hole. 5. Replace the fuel level sensor (sub) gasket with a new one.
6. | caution | Pay attention not to damage the fuel level sensor (sub) and the float of the fuel level sensor (sub) when installing it to the fuel tank through the service hole. |
Install the fuel level sensor (sub) to the fuel tank through the service hole, and tighten the mounting nuts to the specified torque.Tightening torque: 2.5 ± 0.4 N·m (22 ± 4 in-lb)
7. Connect the fuel level sensor (sub) connector.
8. Check the fuel leak of fuel tank.
9. Install the floor inspection lid (RH).
10. Return the floor carpet to the original condition and install the second seat assembly (Refer to GROUP 52A, Second Seat Assembly ). ![[Previous]](../../../buttons/fprev.png)
