REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
FCM Cap and FCM Cover Removal and Installation (Refer to GROUP 54A, FCM/LDW/AHB-ECU
) <Vehicles with Automatic Anti-dazzling Mirror>

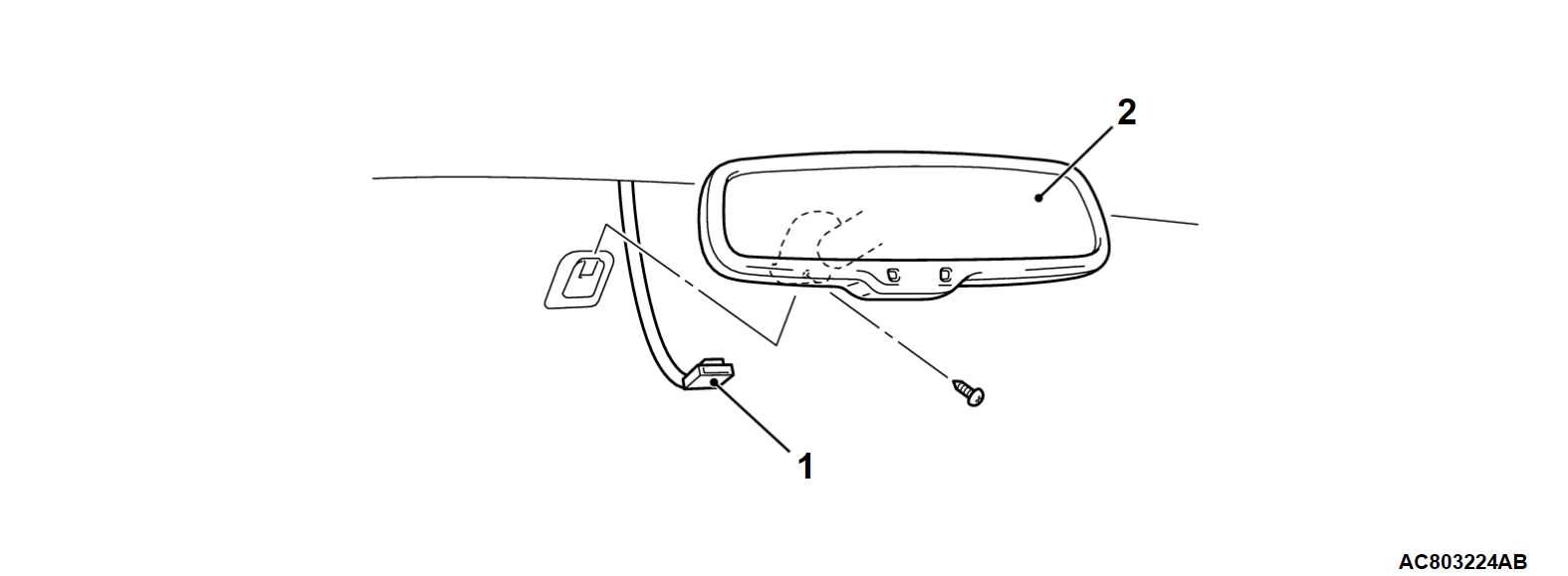

Removal steps
1.
Harness connector <Vehicles with automatic anti-dazzling mirror>
<<A>>
2.
Inside rear view mirror
REMOVAL SERVICE POINT

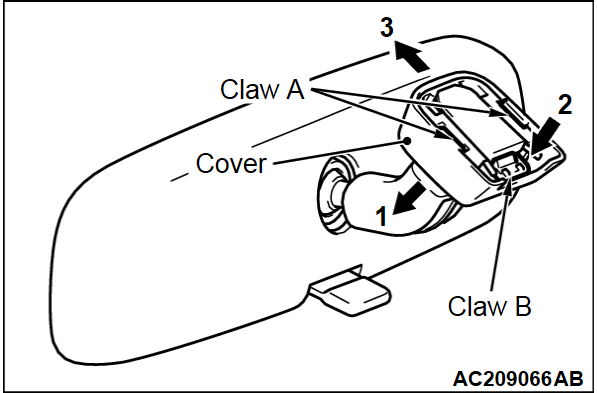

<<A>> INSIDE REAR VIEW MIRROR REMOVAL <VEHICLES WITHOUT AUTOMATIC ANTI-DAZZLING MIRROR>
Disengage the claw A and lower the cover toward arrow 1 direction.
Push the claw B toward arrow 2 direction to unlock, and pull out the mirror toward arrow 3 direction.
