DOOR LATCH ASSEMBLY INSPECTION


Check the door lock actuator operation in the following procedures:
1. Open a door that is supposed to be checked.
2. Remove a door trim assembly (Refer to GROUP 52A - Door Trim ).

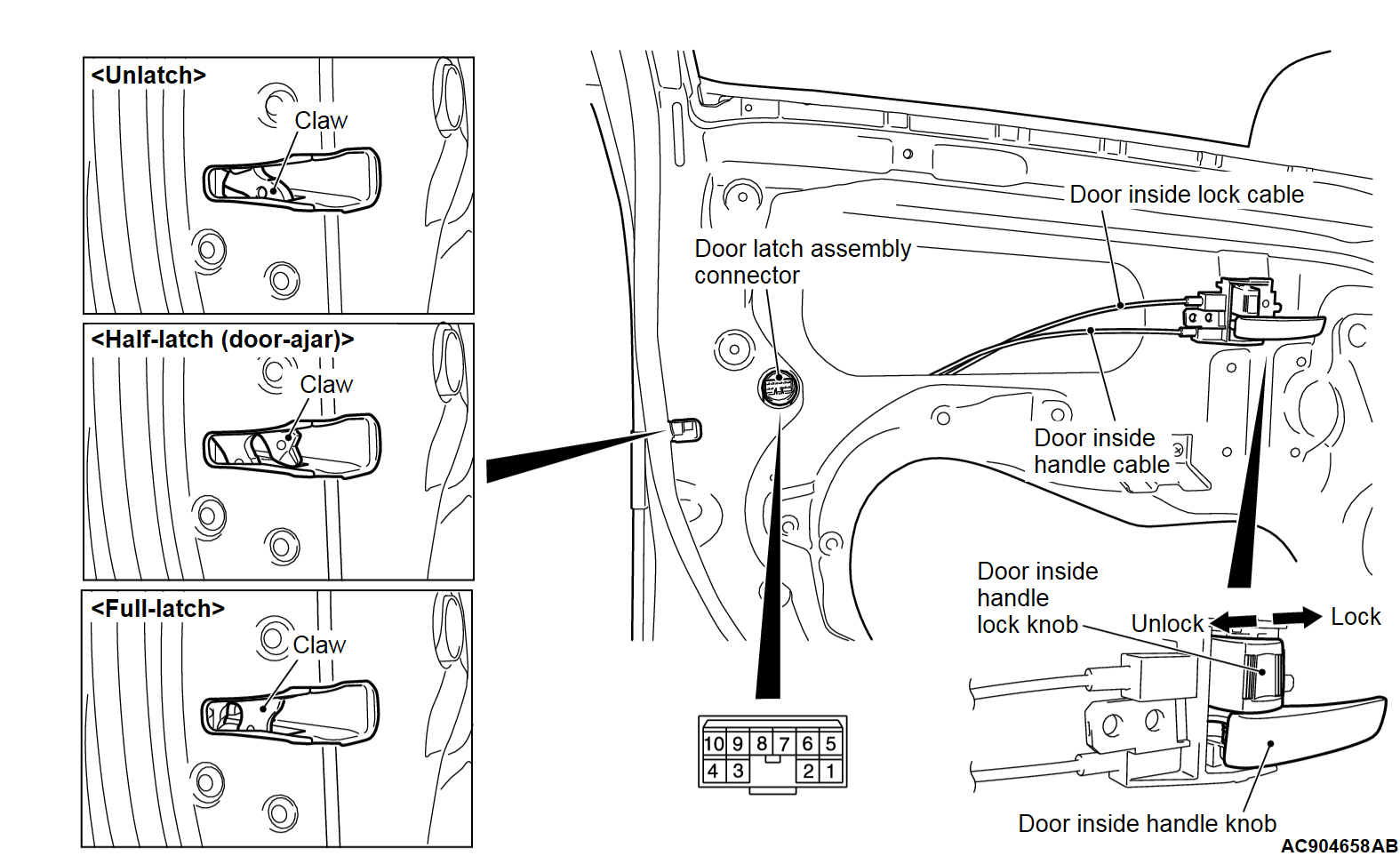

3. Use a screwdriver or the like to slide the door latch claw from unlatch to full-latch position (Set the door latch from door-open to door-closed condition).




ACTUATOR OPERATION CHECK <FRONT LH AND REAR LH>
Claw positionDoor inside handle lock knob positionBattery connectionDoor inside handle lock knob operation
Full-latchLock
  • Connect terminal 1 to negative battery terminal.
  • Connect terminal 2 to positive battery terminal.
Knob moves from "Lock" to "Unlock" position.
Full-latchUnlock
  • Connect terminal 1 to positive battery terminal.
  • Connect terminal 2 to negative battery terminal.
Knob moves from "Unlock" to "Lock" position.
ACTUATOR OPERATION CHECK <FRONT LH AND REAR LH>
Claw positionDoor inside handle lock knob positionBattery connectionDoor inside handle lock knob operation
Full-latchLock
  • Connect terminal 1 to negative battery terminal.
  • Connect terminal 2 to positive battery terminal.
Knob moves from "Lock" to "Unlock" position.
Full-latchUnlock
  • Connect terminal 1 to positive battery terminal.
  • Connect terminal 2 to negative battery terminal.
Knob moves from "Unlock" to "Lock" position.

ACTUATOR OPERATION CHECK <FRONT RH AND REAR RH>
Claw positionDoor inside handle lock knob positionBattery connectionDoor inside handle lock knob operation
Full-latchLock
  • Connect terminal 4 to negative battery terminal.
  • Connect terminal 3 to positive battery terminal.
Knob moves from "Lock" to "Unlock" position.
Full-latchUnlock
  • Connect terminal 4 to positive battery terminal.
  • Connect terminal 3 to negative battery terminal.
Knob moves from "Unlock" to "Lock" position.
ACTUATOR OPERATION CHECK <FRONT RH AND REAR RH>
Claw positionDoor inside handle lock knob positionBattery connectionDoor inside handle lock knob operation
Full-latchLock
  • Connect terminal 4 to negative battery terminal.
  • Connect terminal 3 to positive battery terminal.
Knob moves from "Lock" to "Unlock" position.
Full-latchUnlock
  • Connect terminal 4 to positive battery terminal.
  • Connect terminal 3 to negative battery terminal.
Knob moves from "Unlock" to "Lock" position.

ACTUATOR SWITCH CHECK <FRONT LH>
Claw positionDoor inside handle lock knob positionTester connectionSpecified condition
Full-latchLock6 - 8No continuity
Full-latchUnlock6 - 8Continuity exists (2 Ω or less)
ACTUATOR SWITCH CHECK <FRONT LH>
Claw positionDoor inside handle lock knob positionTester connectionSpecified condition
Full-latchLock6 - 8No continuity
Full-latchUnlock6 - 8Continuity exists (2 Ω or less)

ACTUATOR SWITCH CHECK <FRONT RH: VEHICLES WITH KOS>
Claw positionDoor inside handle lock knob positionTester connectionSpecified condition
Full-latchLock7 - 9No continuity
Full-latchUnlock7 - 9Continuity exists (2 Ω or less)
ACTUATOR SWITCH CHECK <FRONT RH: VEHICLES WITH KOS>
Claw positionDoor inside handle lock knob positionTester connectionSpecified condition
Full-latchLock7 - 9No continuity
Full-latchUnlock7 - 9Continuity exists (2 Ω or less)
