DOOR INSIDE HANDLE CHECK

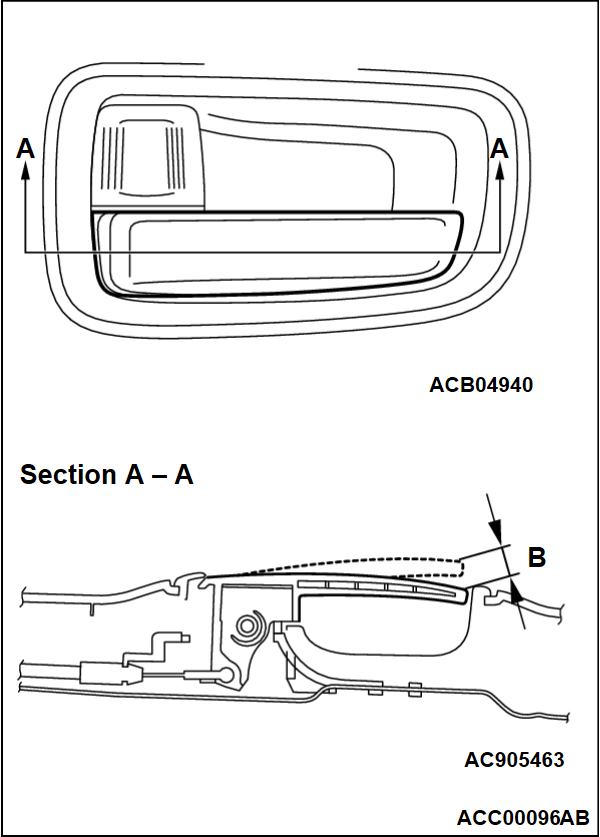

DOOR INSIDE HANDLE KNOB PLAY CHECK
1. Check that the door inside handle knob play (stroke until the door latch unlocks) meets the standard value.
Standard value (B): 13.6 - 27.2 mm (0.54 - 1.07in) [Target value: 20.4mm (0.80 in)]
2. Check the door inside handle knob and door latch assembly. Replace them if the play is out of the standard value.

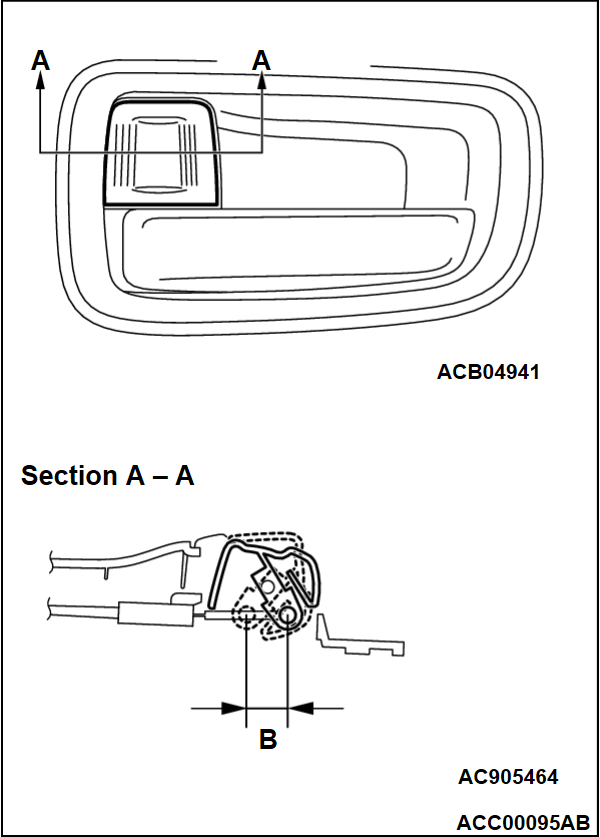

DOOR INSIDE HANDLE LOCK KNOB STROKE CHECK
1. Remove the door trim assembly (Refer to GROUP 52A - Door Trim ).
2. Check that the stroke of the door inside handle lock knob meets the standard value.
Standard value (B): 13.5 - 15.5 mm (0.53 - 0.61 in) [Target value: 14.5 mm (0.57 in)]
3. Check the door inside handle lock knob and door latch assembly. Replace them if the stroke is out of the standard value.
