REMOVAL AND INSTALLATION


Pre-removal and post-installation operation
  • Rear wiper blade and arm assembly removal and installation (Refer to GROUP 51 - Rear Wiper and Washer .)
  • Liftgate trim removal and installation (Refer to GROUP 52A - Liftgate Trim .)

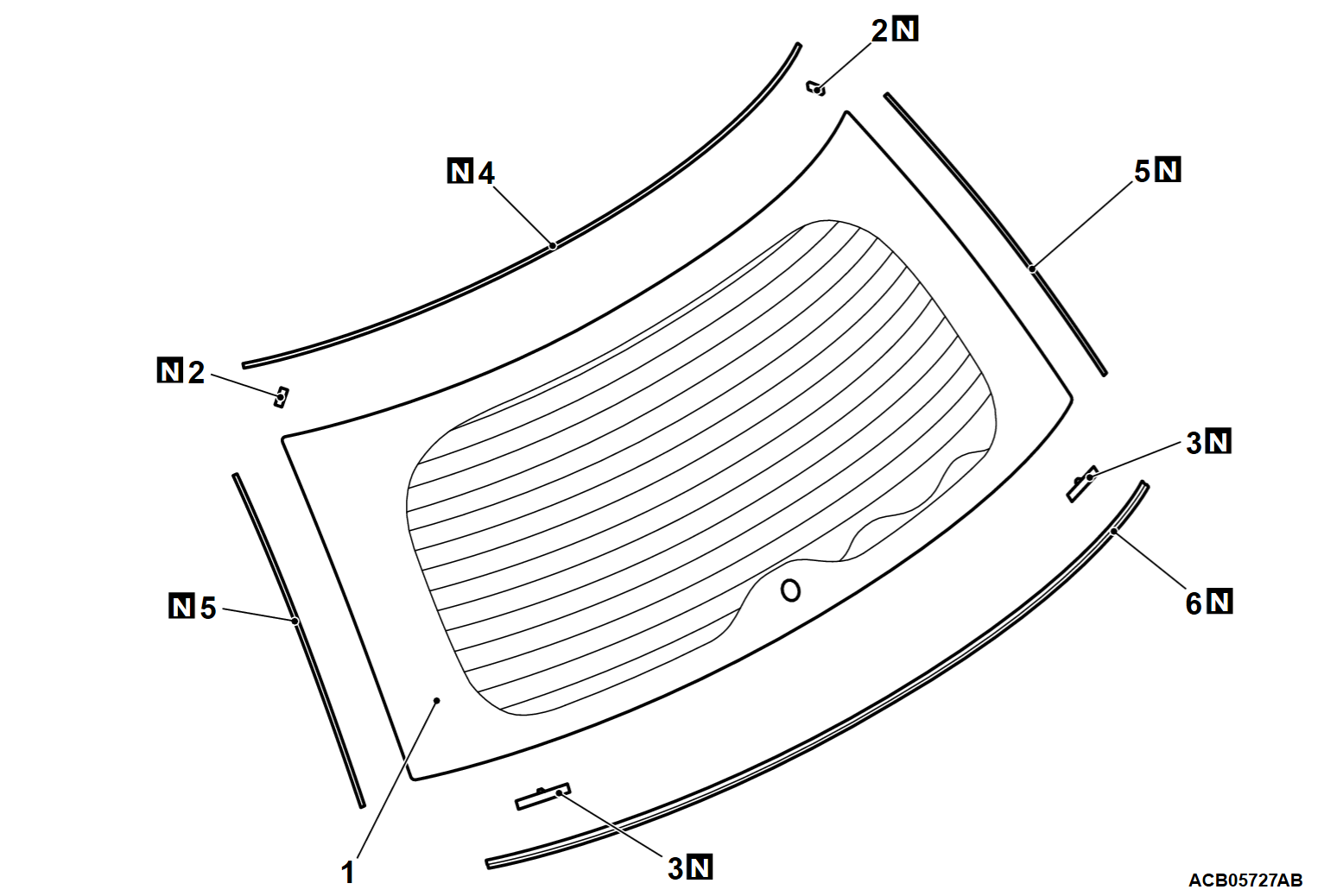

Removal steps
Harness connector
<<A>>>>B<<1.Liftgate window glass
>>A<<2.Fastener
>>A<<3.Glass stopper
>>A<<4.Liftgate dam upper
>>A<<5.Liftgate dam side
>>A<<6.Liftgate dam lower


REMOVAL SERVICE POINT


<<A>> LIFTGATE WINDOW GLASS REMOVAL
Remove the liftgate window glass by the same procedures as for the windshield glass (Refer to ).
noteUse a piano wire to remove the liftgate window glass.




INSTALLATION SERVICE POINTS


>>A<< LIFTGATE DAM/GLASS STOPPER/FASTENER INSTALLATION
1. Use the parts cleaner (3M™ AAD Part number 8906 or equivalent) to degrease the inside circumference of the liftgate window glass and liftgate flanges.
2.
Peel off the protection sheet on the back of the liftgate dam and paste it to the specified position on the liftgate window glass.

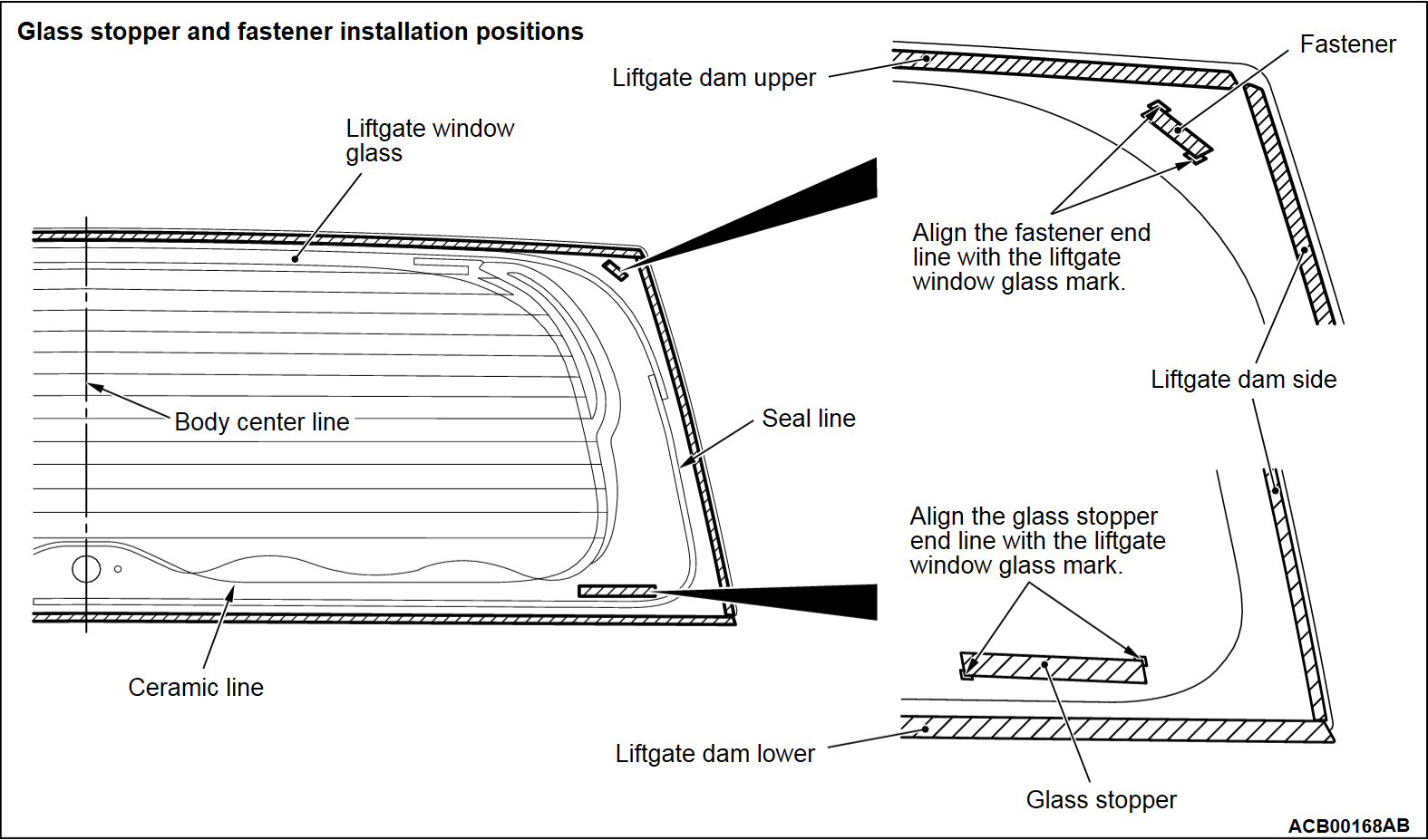

3. Install the glass stopper and fastener to the specified position on the liftgate window glass

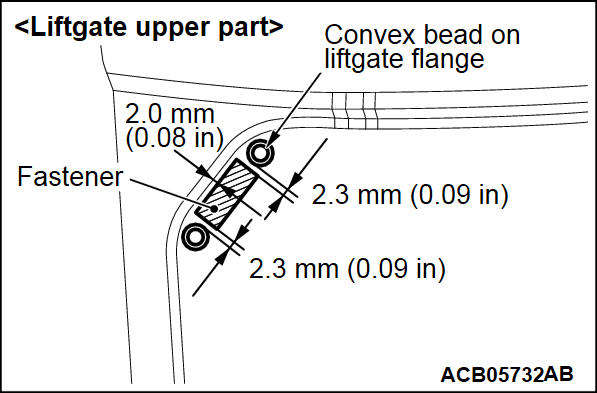

4. Install the fasteners to the specified positions on the liftgate flange.




>>B<< LIFTGATE WINDOW GLASS INSTALLATION

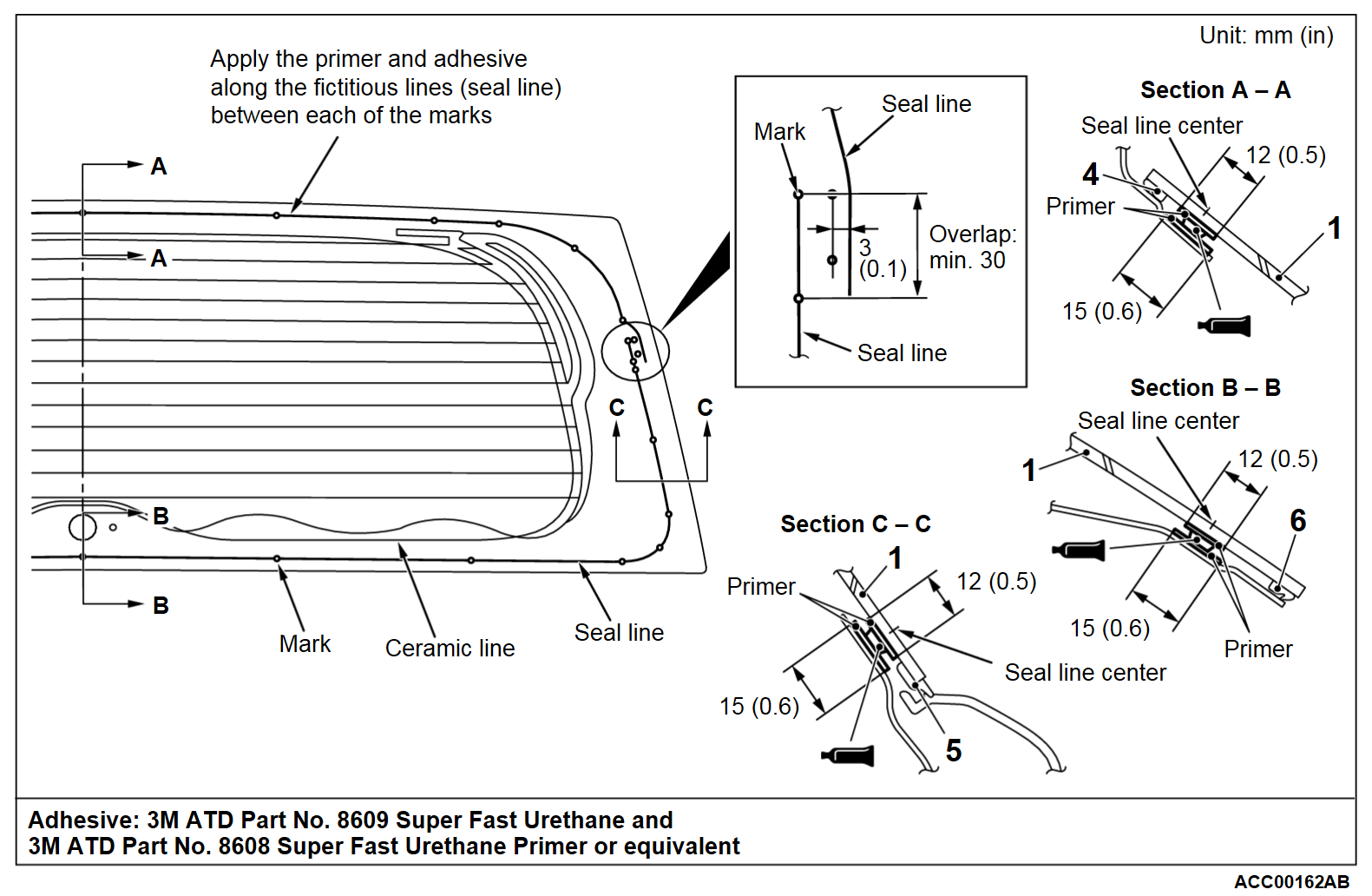

1. Apply the primer and adhesive.
2. Install the liftgate window glass by the same procedure as for the windshield glass (refer to ).
