REMOVAL AND INSTALLATION

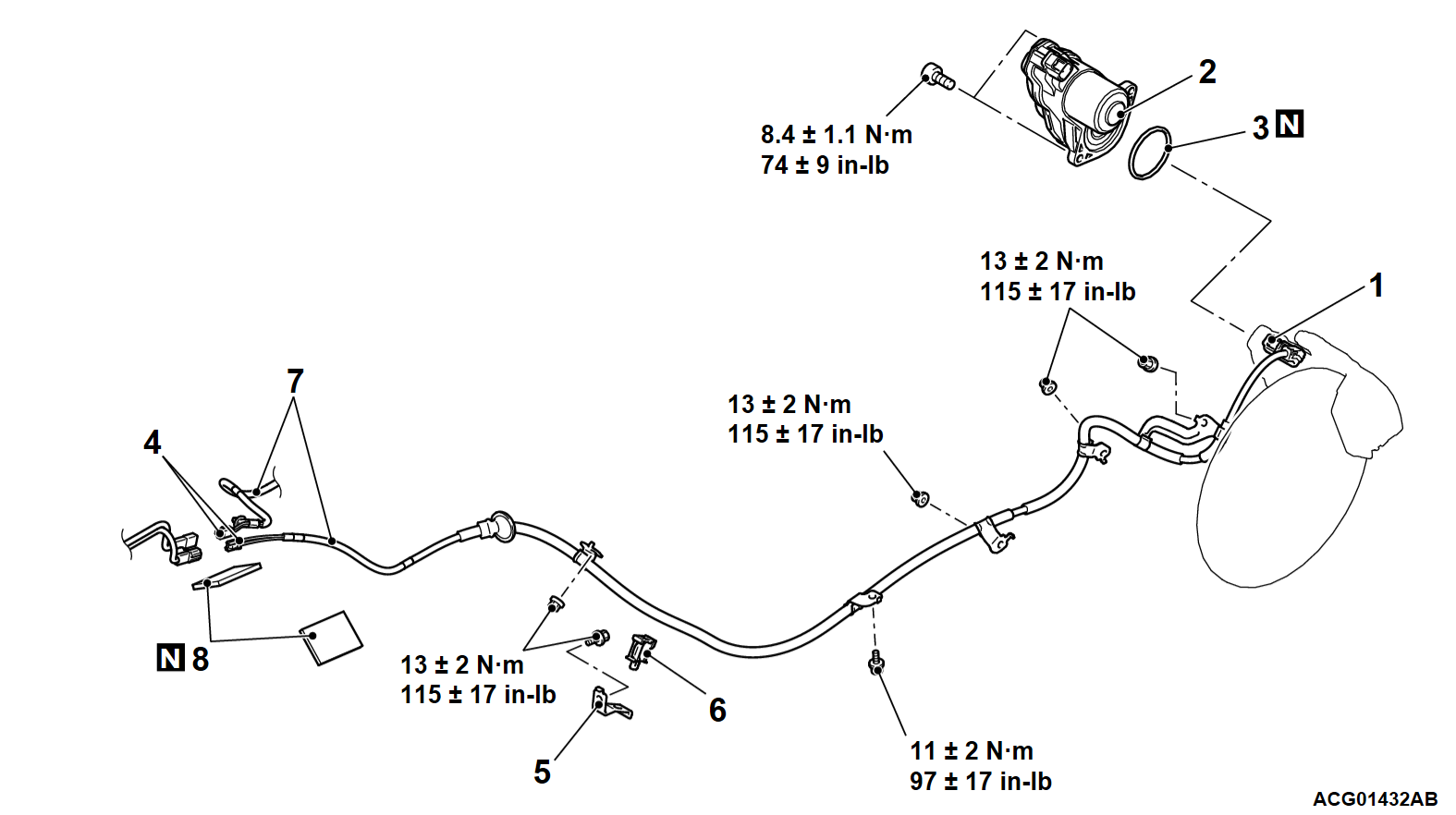

Electric parking brake actuator assembly removal steps
1.Electric parking brake actuator assembly connector connection.
2.Electric parking brake actuator assembly
>>B<<3.O-ring
Electric parking brake harness assembly removal steps
Rear floor console assembly (Refer to GROUP 52A - Rear Floor Console Assembly ).
4.Electric parking brake harness assembly connector connection.
1.Electric parking brake actuator assembly connector connection.
5.Bracket
6.Cable clamp
>>A<<7.Electric parking brake harness assembly
8.Electric wiring tape


INSTALLATION SERVICE POINTS


>>A<< ELECTRIC PARKING BRAKE HARNESS ASSEMBLY INSTALLATION

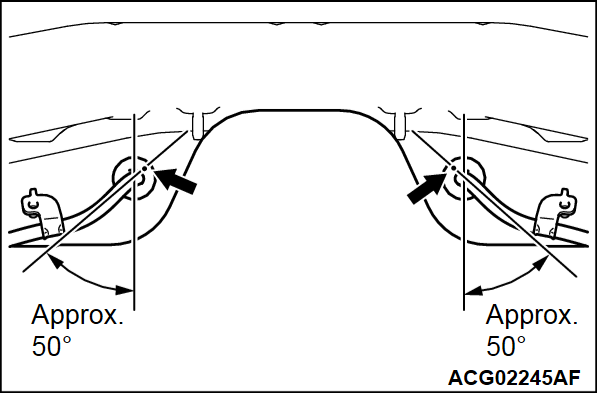

Guide the electric parking brake wiring harness assembly so that the markings on the grommets face as shown.



>>B<< O-RING INSTALLATION
Apply the specified grease to the O-ring.
Specified grease: Cosmo rubber grease or equivalent
