PARKING BRAKE SWITCH CHECK <LEVER TYPE PARKING BRAKE>


cautionDo not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.
1. Remove the rear floor console assembly (Refer to GROUP 52A - Rear Floor Console ).

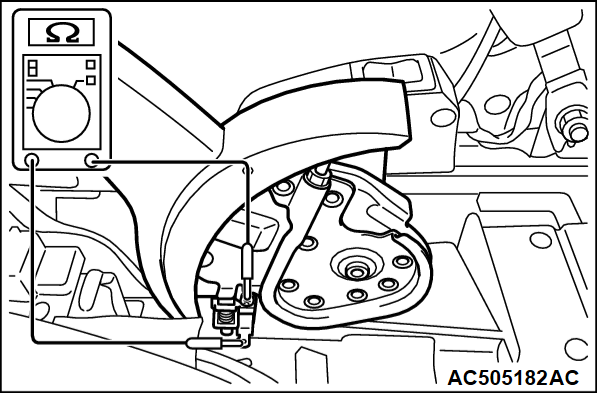

2. Check the continuity between the parking brake switch terminal and the switch mounting bolt.

Check conditionNormal condition
When parking brake lever is pulled.Continuity exists
(2 Ω or less)
When parking brake lever is released.No continuity
Check conditionNormal condition
When parking brake lever is pulled.Continuity exists
(2 Ω or less)
When parking brake lever is released.No continuity
