REMOVAL AND INSTALLATION
Pre-removal Operation
  • Rear Floor Console Assembly Removal (Refer to GROUP 52A - Rear Floor Console Assembly ).
  • Second Seat Assembly Removal (Refer to GROUP 52A - Second Seat Assembly ).
  • Rear Floor Under Cover Removal (Refer to GROUP 51, Under Cover ).
Post-installation Operation
  • Rear Floor Under Cover Removal (Refer to GROUP 51, Under Cover ).
  • Second Seat Assembly Installation (Refer to GROUP 52A - Second Seat Assembly ).
  • Rear Floor Console Assembly Installation (Refer to GROUP 52A - Rear Floor Console Assembly ).

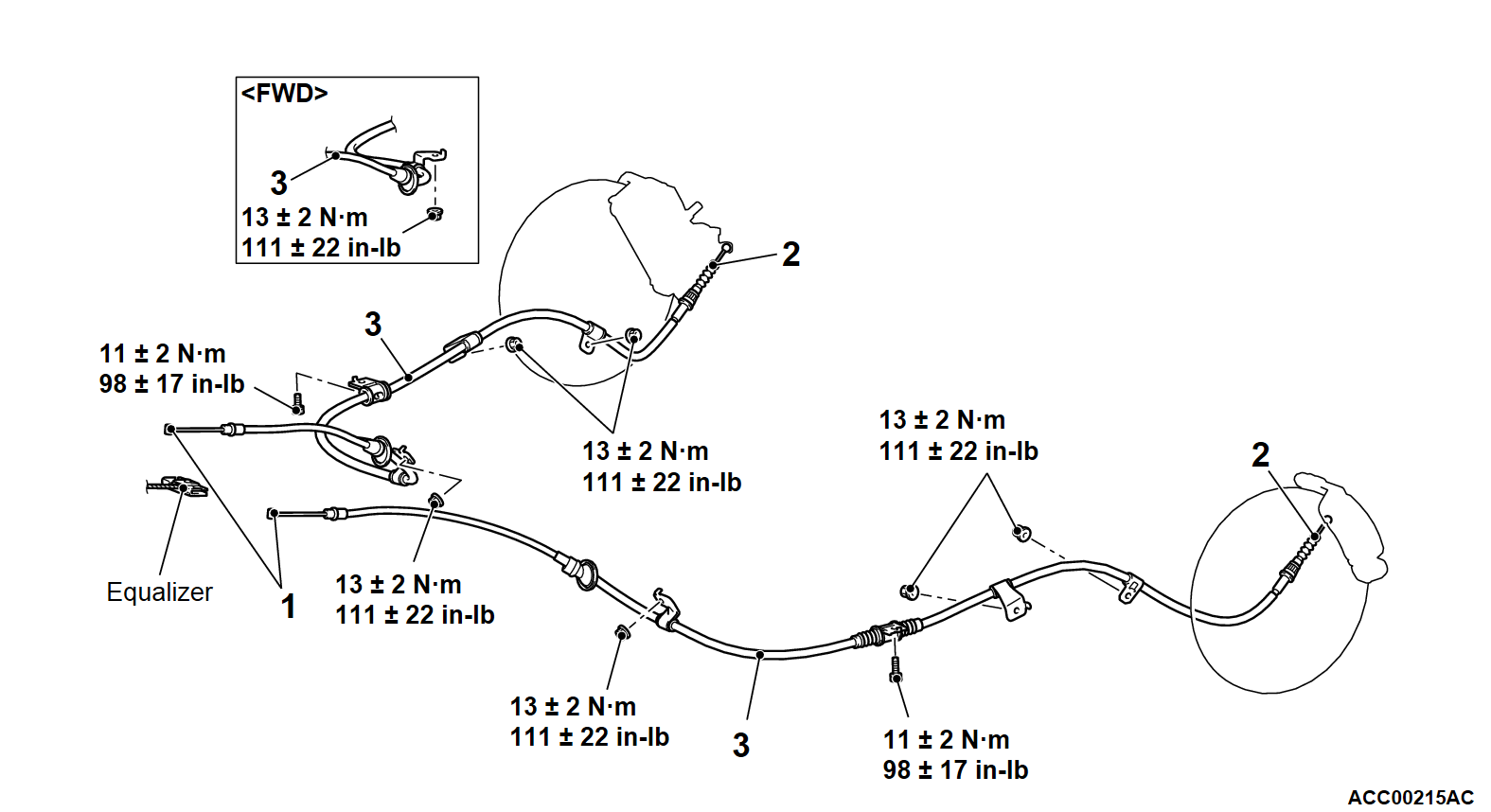

Removal steps
•Release the parking brake lever.
•Loosen the adjusting nut.
>>B<<1.Parking brake rear cable connection (Parking brake lever side)
•Parking brake rear cable clamp connection.
<<A>>>>A<<2.Parking brake rear cable connection (Rear brake caliper assembly side)
3.Parking brake rear cable



REMOVAL SERVICE POINT


<<A>> PARKING BRAKE REAR CABLE CONNECTION REMOVAL <REAR BRAKE CALIPER ASSEMBLY SIDE>

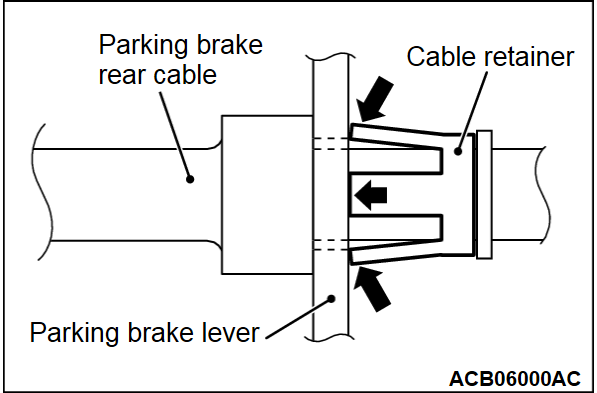

Compress the tabs on the cable retainer to pull out the parking rear cable through the parking lever hole of the rear brake caliper assembly.
note
  • When pulling out the parking rear cable, be careful not to damage the tab on the cable retainer.

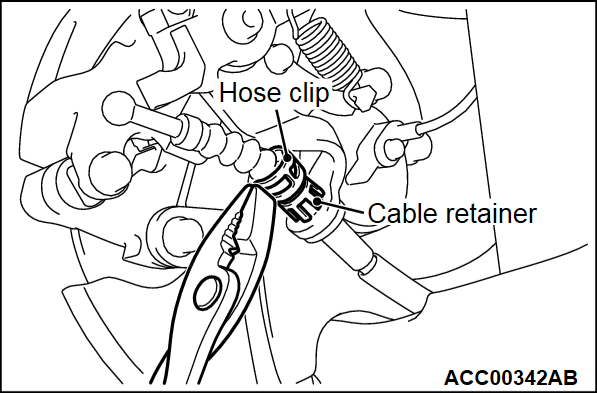

  • Example: Insert the 12.8-mm (0.5 inch) hose clip (MB248923) into the parking rear cable. Then push the clip over the cable retainer to protect the tabs.



INSTALLATION SERVICE POINTS


>>A<< PARKING BRAKE REAR CABLE CONNECTION INSTALLATION <REAR BRAKE CALIPER ASSEMBLY SIDE>

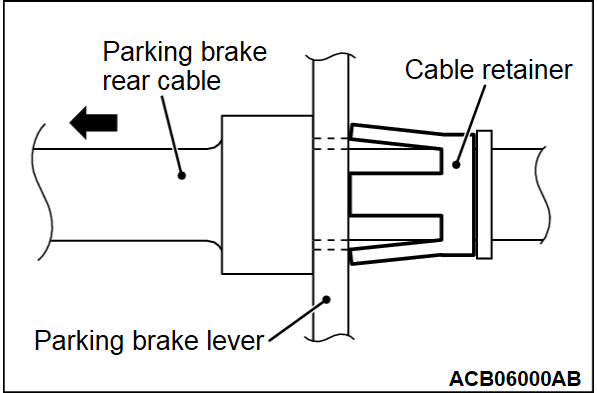

1. Guide the parking brake rear cable through the parking lever hole of the rear brake caliper assembly to the cable retainer.
2. Pull back the parking brake rear cable to assure it is tightly fastened to the cable retainer.




>>B<< PARKING BRAKE REAR CABLE CONNECTION INSTALLATION <PARKING BRAKE LEVER SIDE>
cautionCheck that the equalizer and the parking brake rear cable are connected correctly. If the parking brake is applied with the equalizer and the parking brake rear cable connected improperly, the equalizer may be damaged.

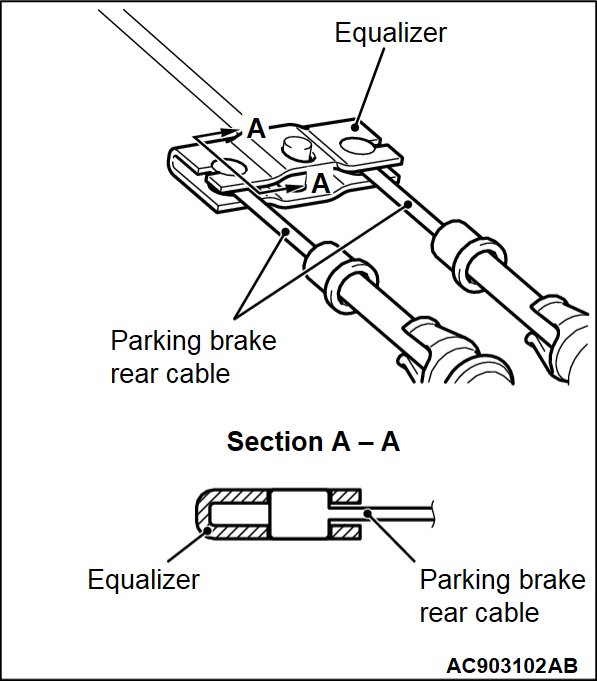

Connect the parking brake rear cable to the equalizer as shown in the figure.
