REMOVAL AND INSTALLATION


cautionDo not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.
Pre-removal Operation
Rear Floor Console Assembly Removal (Refer to GROUP 52A - Rear Floor Console ).
Post-installation Operation
  • Parking Brake Lever Stroke Check (Refer to ).
  • Rear Floor Console Assembly Installation (Refer to GROUP 52A - Rear Floor Console ).

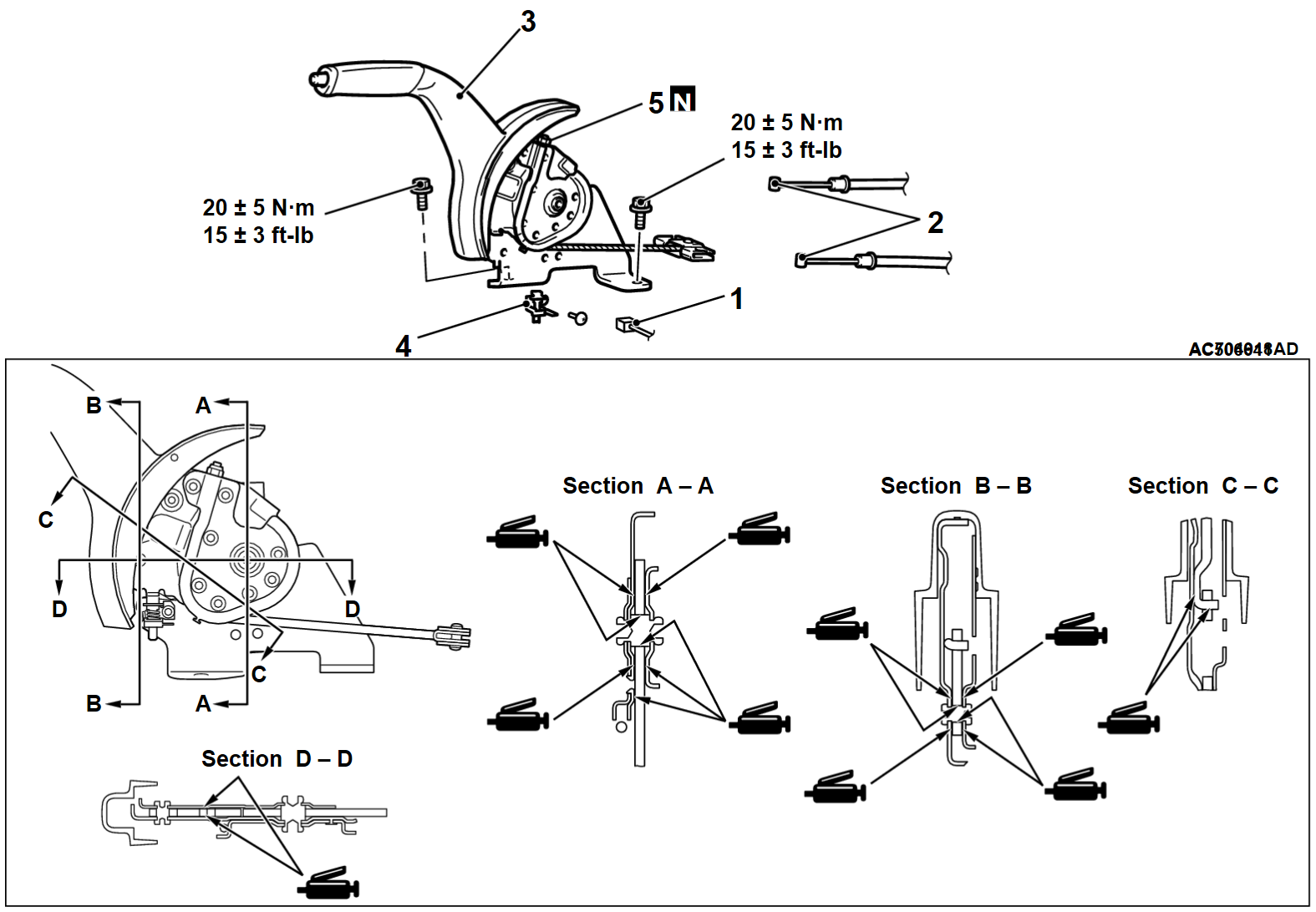

Removal steps
•Release the parking brake lever.
•Loosen the adjusting nut.
1.Parking brake switch connector connection
>>A<<2.Parking brake rear cable assembly connection
3.Parking brake lever assembly
4.Parking brake switch
5.Adjusting nut


INSTALLATION SERVICE POINT


>>A<< PARKING BRAKE REAR CABLE ASSEMBLY CONNECTION INSTALLATION
cautionCheck that the equalizer and the parking brake rear cable assembly are connected correctly. If the parking brake is applied with the equalizer and the parking brake rear cable assembly connected improperly, the equalizer may be damaged.

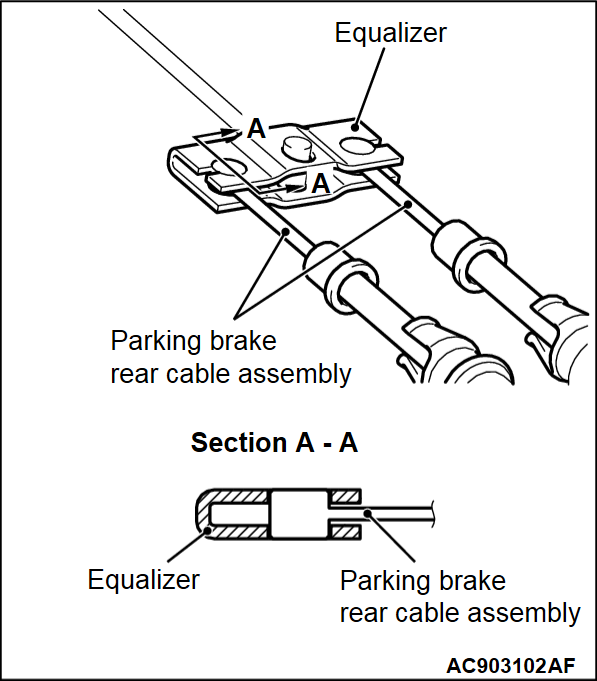

Connect the parking brake rear cable assembly to the equalizer as shown in the figure.
