REMOVAL AND INSTALLATION


cautionDo not apply lubricant (grease or silicon system sprayer etc.) to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have lubricant (grease or silicon system sprayer etc.) on them.
Pre-removal and Post-installation Operation
  • Front Scuff Plate <LH> and Cowl Side Trim <LH> Removal and Installation (Refer to GROUP 52A, Interior Trim .)
  • Steering Column Lower Cover and Side Lower Panel Removal and Installation (Refer to GROUP 52A, Instrument Panel Assembly .)

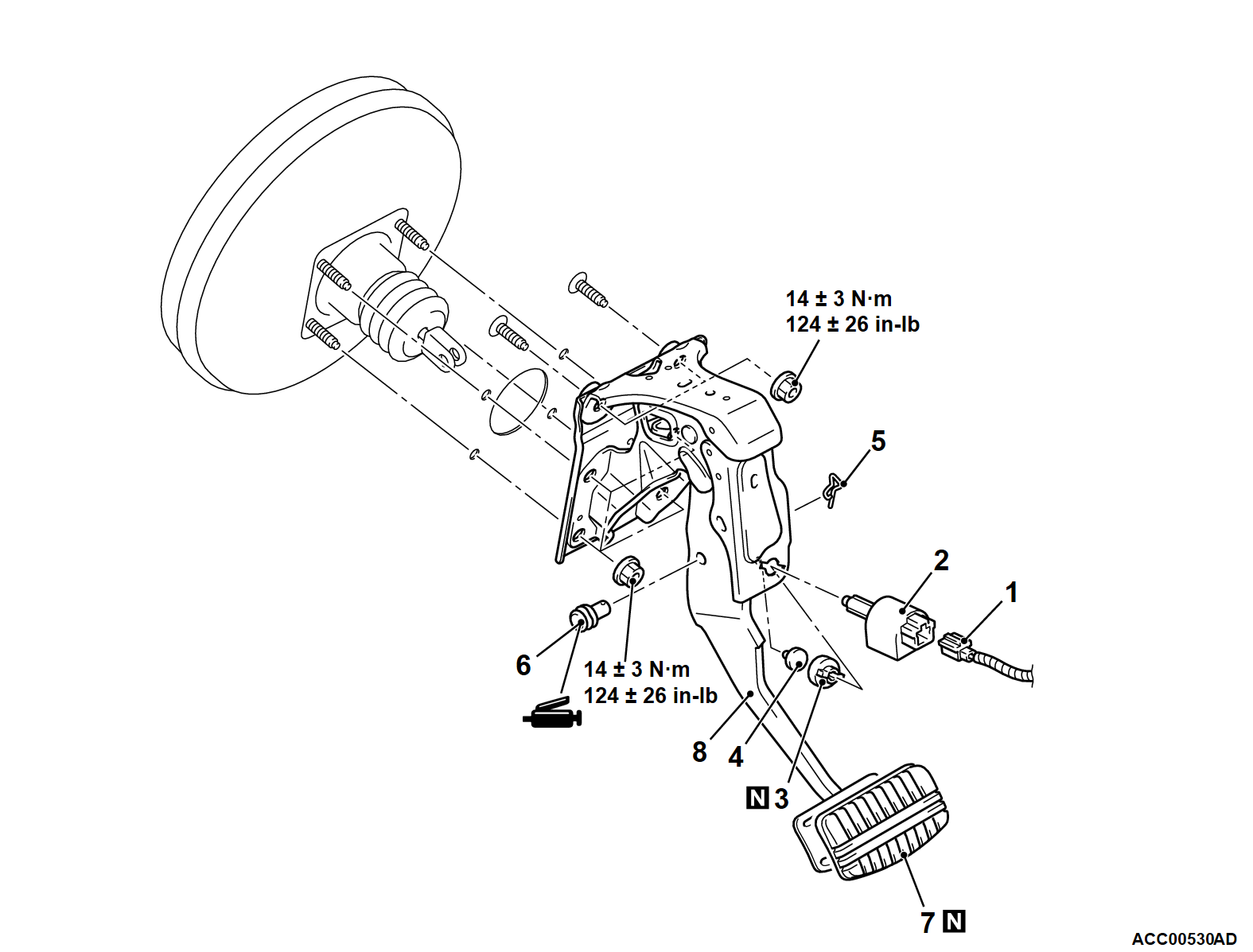

Removal steps
1.Stoplight switch connector connection
2.Stoplight switch
3.Pedal clip
4.Pedal stopper
5.Snap pin
6.Pin assembly
7.Pedal pad
<<A>>8.Brake pedal assembly


REMOVAL SERVICE POINT


<<A>> BRAKE PEDAL ASSEMBLY REMOVAL
From the engine compartment side, remove the brake pedal assembly while pulling the brake booster.
