REMOVAL AND INSTALLATION


caution
  • The parts indicated by *1 indicates parts which should be temporarily tightened, and then fully tightened with the vehicle standing on the ground at curb weight.
  • The parts indicated by *2 are the bolts/nuts with friction coefficient stabilizer. Prior to reinstallation, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
Pre-removal Operation
Engine Room Side Cover Removal (Refer to GROUP 51 - Under Cover ).
Post-installation Operation
  • Using Your Fingers, Press the Dust Cover to Check for a Crack or Damage.
  • Engine Room Side Cover Installation (Refer to GROUP 51 - Under Cover ).
  • Wheel Alignment Check and Adjustment (Refer to ).
  • Check the Beam Direction of the Headlight (Refer to 54A - Headlight Aiming ).
Removal steps
Stabilizer link and stabilizer bar connection at both sides (Refer to ).

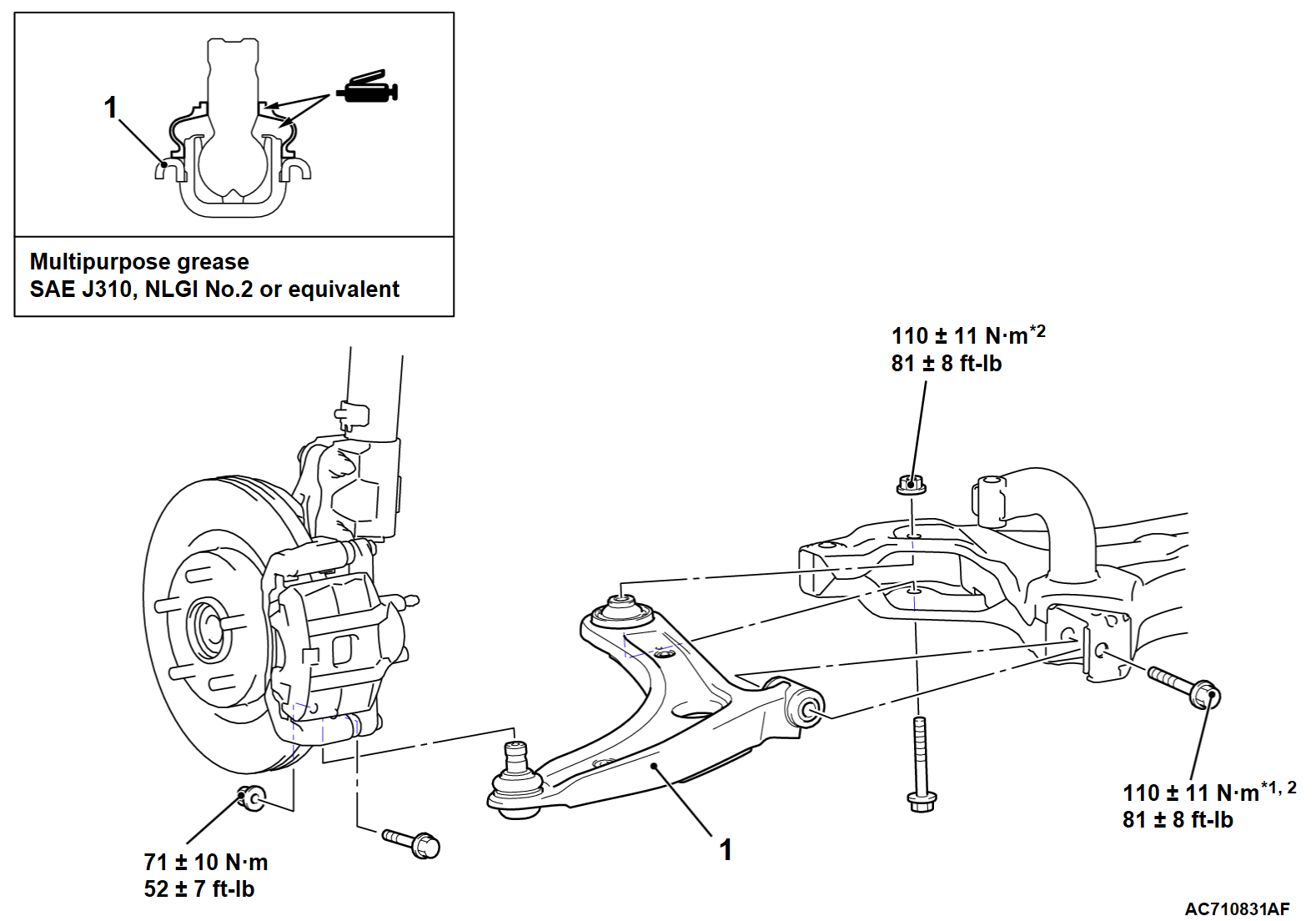

<<A>>1.Lower arm assembly


REMOVAL SERVICE POINT


<<A>> LOWER ARM ASSEMBLY REMOVAL

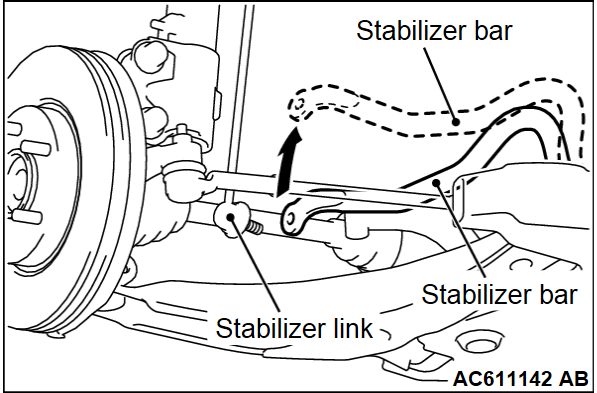

Rotate upward the stabilizer bar so as not to interfere the lower arm removal.
