REMOVAL AND INSTALLATION
Post-installation Operation
  • Check the Dust Cover for Cracks or Damage by Pushing it with your finger.
  • Front Wheel Alignment Check and Adjustment (Refer to ).

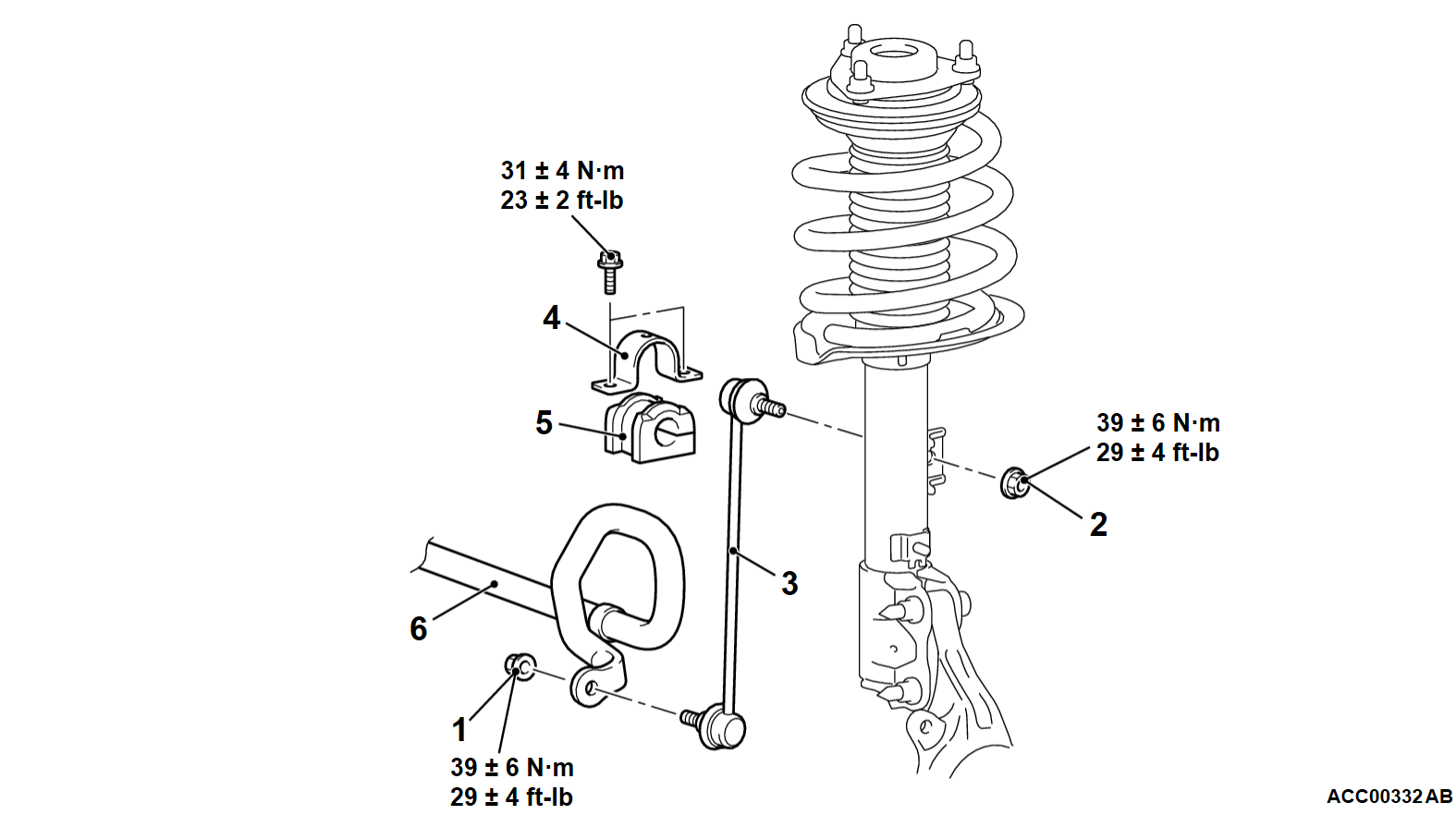

Stabilizer link removal steps
<<A>>>>C<<1.Stabilizer link and stabilizer bar connection nut
<<B>>>>D<<2.Stabilizer link and strut connection nut
3.Stabilizer link
Stabilizer bushing removal steps
<<A>>>>C<<1.Stabilizer link and stabilizer bar connection nut
4.Stabilizer bar bracket
>>B<<5.Stabilizer bushing
Stabilizer bar removal steps
<<A>>>>C<<1.Stabilizer link and stabilizer bar connection nut
4.Stabilizer bar bracket
>>B<<5.Stabilizer bushing
>>A<<6.Stabilizer bar



REMOVAL SERVICE POINTS

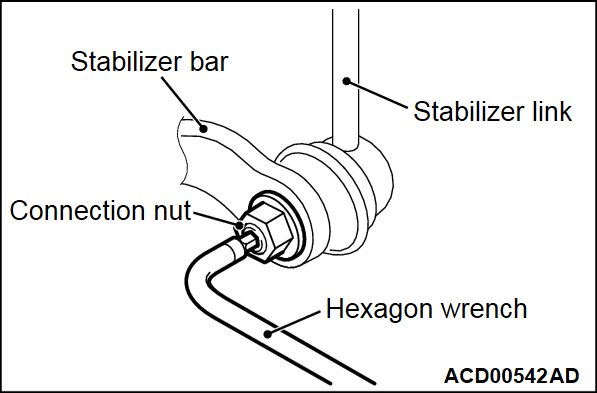

<<A>> STABILIZER LINK AND STABILIZER BAR CONNECTION NUT REMOVAL
Use a hexagon wrench to remove the stabilizer link and stabilizer bar connection nut as shown in the figure.

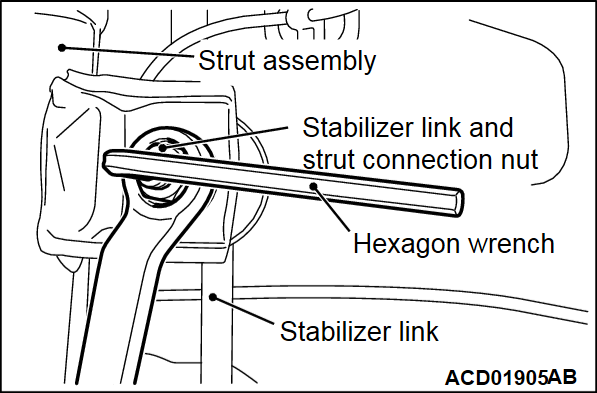

<<B>> STABILIZER LINK AND STRUT CONNECTION NUT REMOVAL
Use a wrench to counterhold the stabilizer link as shown. Then use a hexagon wrench to remove the nut securing the stabilizer link to the strut.




INSTALLATION SERVICE POINTS

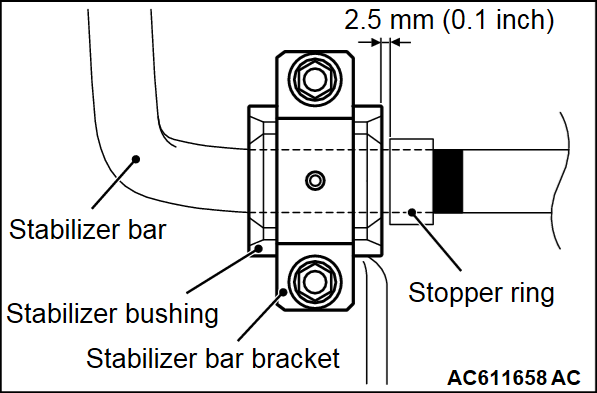

>>A<< STABILIZER BAR INSTALLATION
Install the stabilizer bar as shown in the figure.

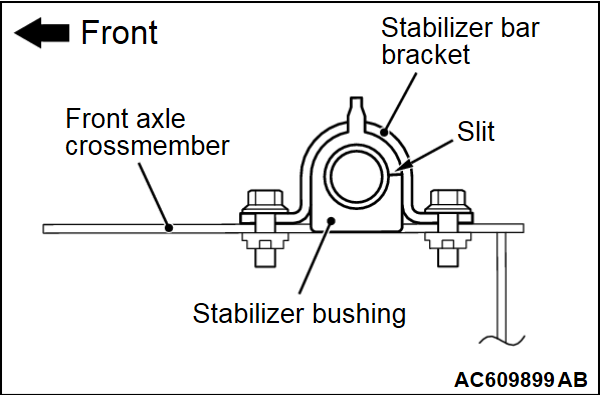

>>B<< STABILIZER BUSHING INSTALLATION
Install the stabilizer bushing as shown in the figure.




>>C<< STABILIZER LINK AND STABILIZER BAR CONNECTION NUT INSTALLATION
Use a hexagon wrench to install the stabilizer link and stabilizer bar connection nut as shown in the figure.




>>D<< STABILIZER LINK AND STRUT CONNECTION NUT INSTALLATION
Use a wrench to counterhold the stabilizer link as shown. Then use a hexagon wrench to install the nut securing the stabilizer link to the strut.
