REMOVAL AND INSTALLATION


Pre-removal Operation
  • Battery and Battery Tray Removal (Refer to GROUP 54A - Battery ).
  • Air Cleaner Assembly Removal (Refer to GROUP 15 - Air Cleaner ) <2.4 L Engine>.
  • Air Cleaner Assembly Removal (Refer to GROUP 15 - Air Cleaner ) <3.0 L Engine>.
  • Engine Control Module Removal (Refer to GROUP 13A - Engine Control Module ) <2.4 L Engine>.
  • Engine Control Module Removal (Refer to GROUP 13B - Engine Control Module ) <3.0 L Engine>.
Post-installation Operation
  • Engine Control Module Installation (Refer to GROUP 13A - Engine Control Module ) <2.4 L Engine>.
  • Engine Control Module Installation (Refer to GROUP 13B - Engine Control Module ) <3.0 L Engine>.
  • Air Cleaner Assembly Installation (Refer to GROUP 15 - Air Cleaner ) <2.4 L Engine>.
  • Air Cleaner Assembly Installation (Refer to GROUP 15 - Air Cleaner ) <3.0 L Engine>.
  • Battery and Battery Tray Installation (Refer to GROUP 54A - Battery ).
Removal

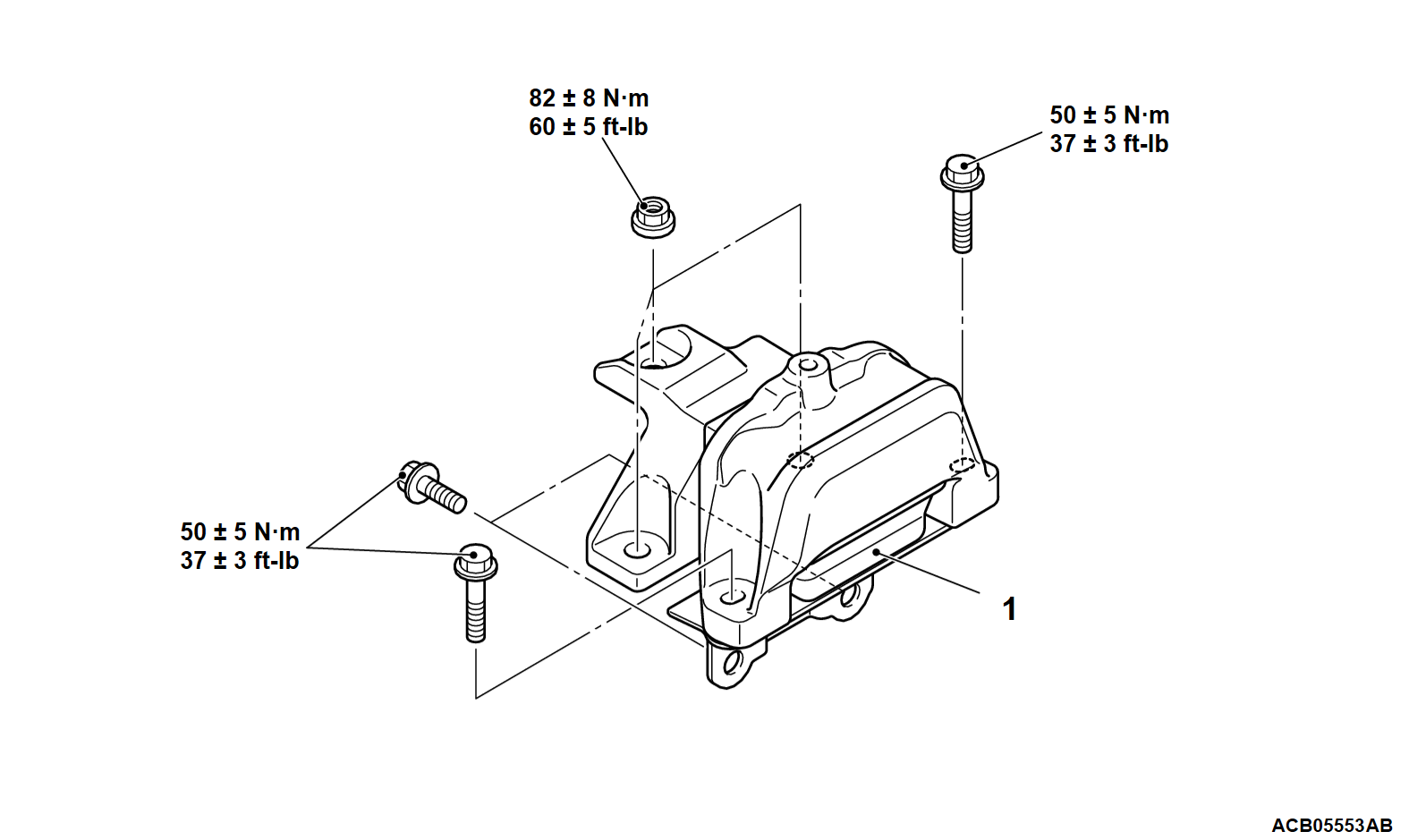

<<A>>>>A<<1.Transmission mounting bracket


REMOVAL SERVICE POINT


<<A>> TRANSMISSION MOUNTING BRACKET REMOVAL
1. Place a garage jack against the transmission case with a piece of wood in between to support the engine and transmission assembly.
2. Operate a garage jack so that the transmission weight is not applied to the transmission mounting bracket, and remove the transmission mounting bracket.




INSTALLATION SERVICE POINT


>>A<< TRANSMISSION MOUNTING BRACKET INSTALLATION
cautionDo not remove small tapping screw on the back side.

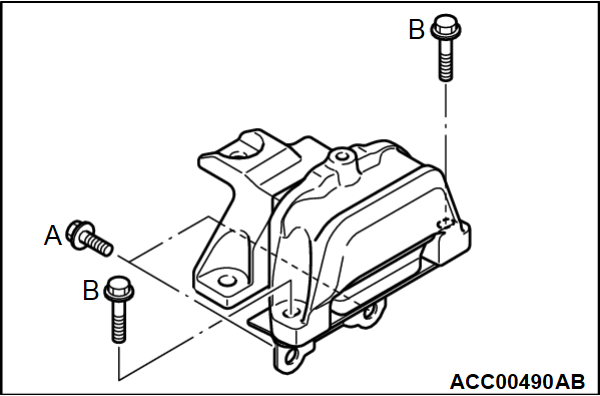

Tighten the transmission mounting bracket mounting bolts by the following procedure.

OrderBoltTightening torque
1stAApproximately 0 - 5.0 N·m
2ndB50 ± 5 N·m
3rdA50 ± 5 N·m
OrderBoltTightening torque
1stAApproximately 0 - 5.0 N·m
2ndB50 ± 5 N·m
3rdA50 ± 5 N·m
