REMOVAL AND INSTALLATION

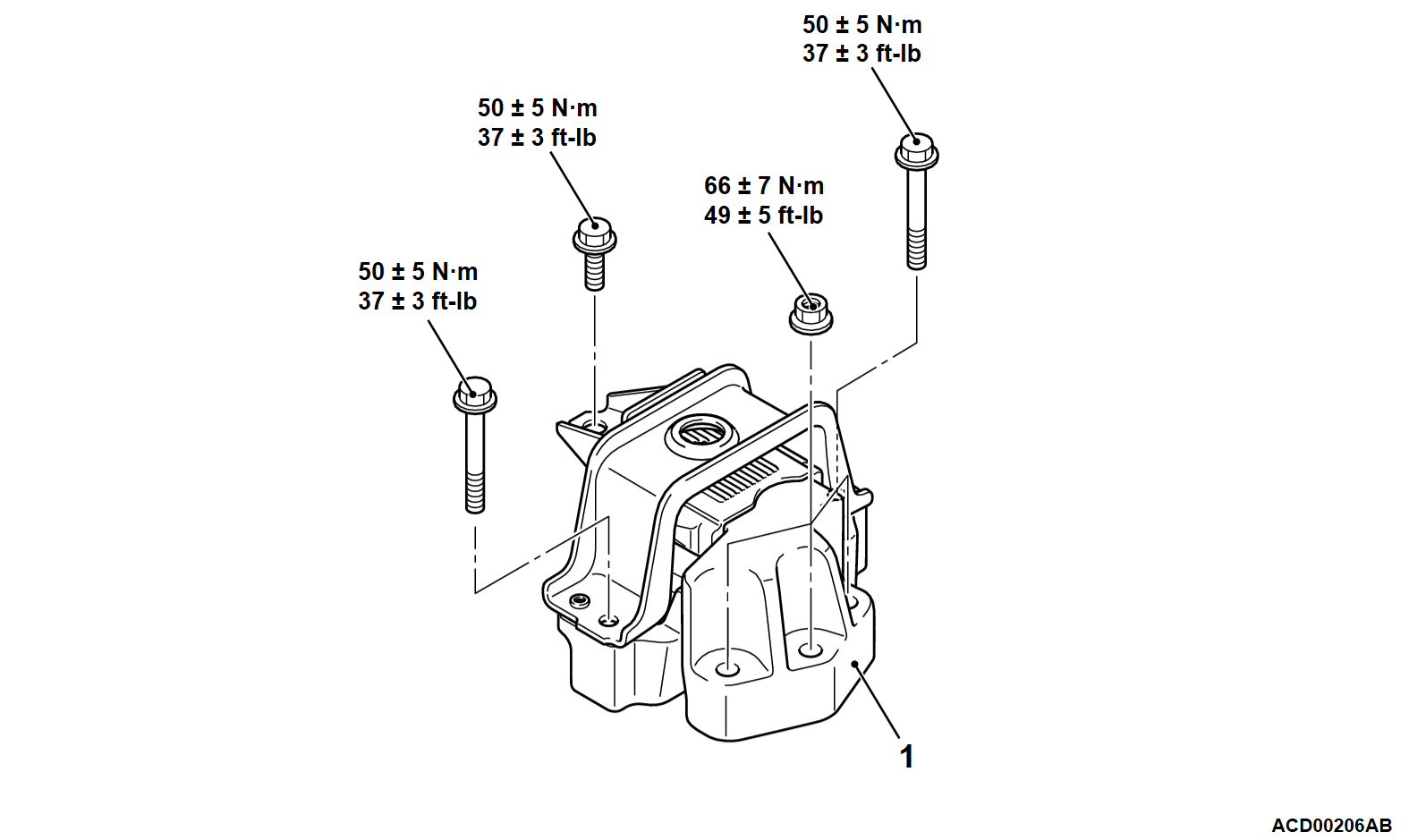

<2.4 L Engine>
Pre-removal Operation
  • Valve Lift-ECU Removal (Refer to GROUP 13A - Valve Lift-ECU ).
Post-installation Operation
  • Valve Lift-ECU Installation (Refer to GROUP 13A - Valve Lift-ECU ).
Removal
<<A>>>>A<<1.Engine mounting bracket

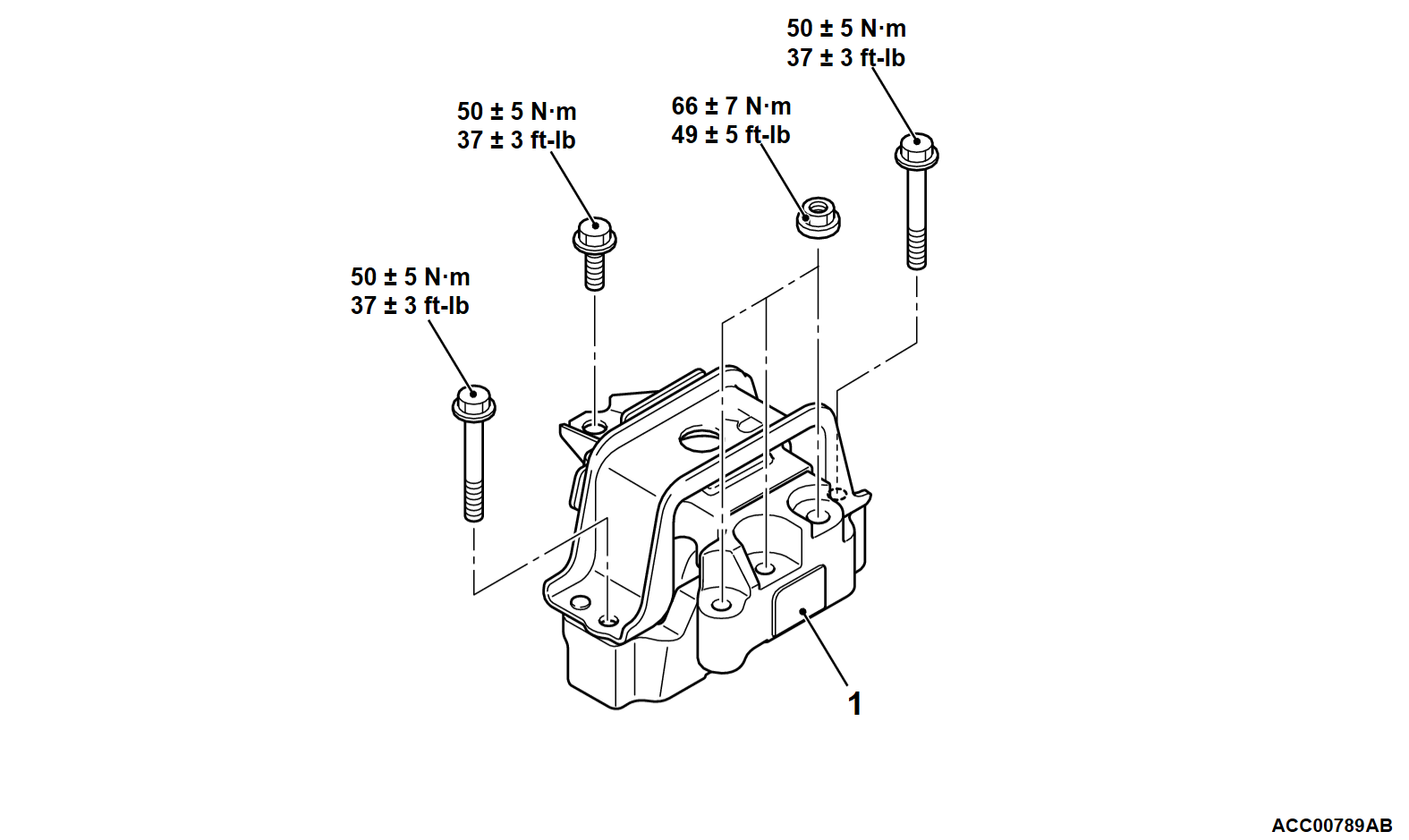

<3.0 L Engine>
Removal
<<A>>>>A<<1.Engine mounting bracket


REMOVAL SERVICE POINT


<<A>> ENGINE MOUNTING BRACKET REMOVAL
1.
cautionWhen supporting the engine and transmission assembly with a garage jack, be careful not to deform the engine oil pan.
Place a garage jack against the engine oil pan with a piece of wood in between to support the engine and transmission assembly.
2. Operate a garage jack so that the engine weight is not applied to the engine mounting bracket, and remove the engine mounting bracket.




INSTALLATION SERVICE POINT

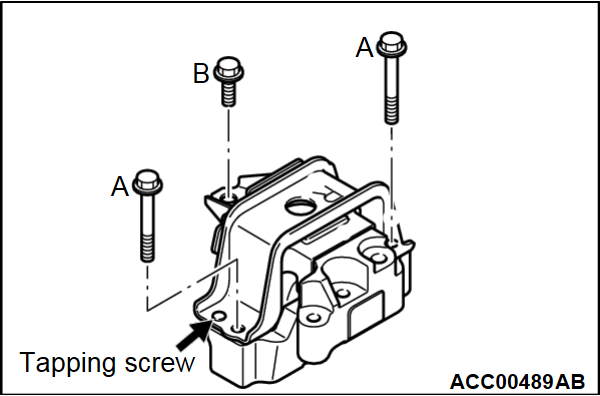

>>A<< ENGINE MOUNTING BRACKET INSTALLATION
cautionDo not remove small tapping screw.
Tighten the engine mounting bracket mounting bolts by the following procedure.

OrderBoltTightening torque
1stAApproximately 0 - 5.0 N·m (0 - 44 in-lb)
2ndB50 ± 5 N·m (37 ± 3 ft-lb)
3rdA50 ± 5 N·m (37 ± 3 ft-lb)
OrderBoltTightening torque
1stAApproximately 0 - 5.0 N·m (0 - 44 in-lb)
2ndB50 ± 5 N·m (37 ± 3 ft-lb)
3rdA50 ± 5 N·m (37 ± 3 ft-lb)
