REMOVAL AND INSTALLATION
caution
If the valve lift-ECU is replaced, use the scan tool (M.U.T.-III) to initialize the learning value, which is stored in the engine-ECM (Refer to GROUP 00 - Precautions Before Service, Initialization procedure for learning value in MFI engine
).

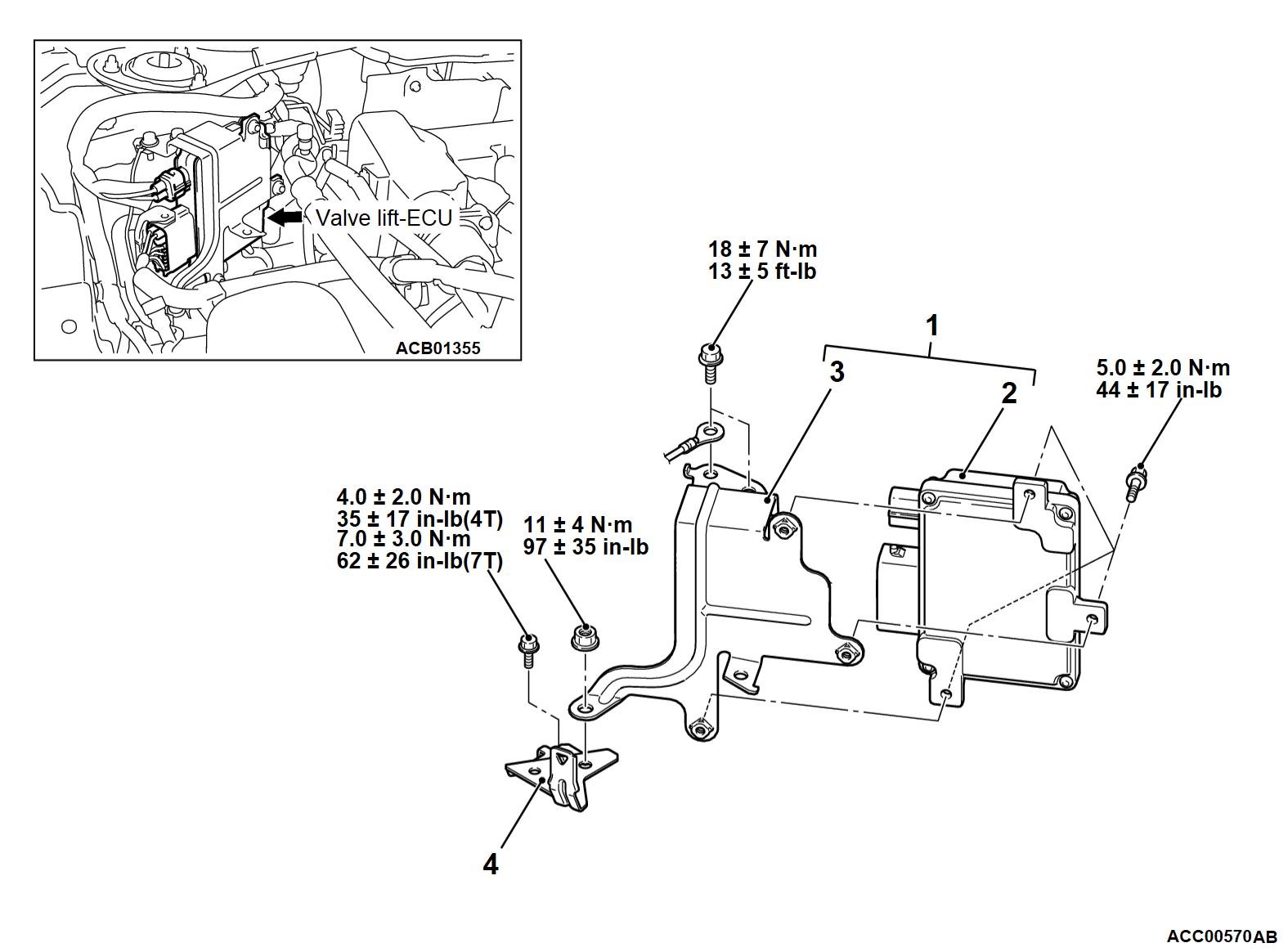

Removal steps
1.
Valve lift-ECU and bracket assembly
2.
Valve lift-ECU
3.
Valve lift-ECU bracket
4.
Valve lift-ECU stay
