DTC P1798: Malfunction of G Sensor Signal




DIAGNOSTIC FUNCTION
The TCM determines that the system is defective when it receives a G sensor abnormality signal from the ASC-ECU.


DESCRIPTIONS OF MONITOR METHODS
After the system has detected that the power supply voltage is 10 V or more, the engine speed is 450 r/min or more and the vehicle speed is 5 km/h (3 mph) or more, the system receives a malfunction signal from the G sensor for five seconds.


MONITOR EXECUTION
  • Voltage of battery: 10 volts or more.


MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
  • P0712, P0713: Malfunction of the transmission fluid temperature sensor
  • P0715: Malfunction of primary pulley speed sensor
  • P0720: Malfunction of secondary pulley speed sensor
  • P0730: Incorrect gear ratio
  • P0966, P0967: Malfunction of secondary pressure solenoid valve
  • P0970, P0971: Malfunction of primary pressure solenoid valve
  • P2720, P2721: Malfunction of select pressure solenoid valve
  • P2763, P2764: Malfunction of lock-up solenoid valve
  • P2765: Malfunction of turbine speed sensor
Sensor (The sensor below is determined to be normal)
  • Transmission fluid temperature sensor
  • Primary pulley speed sensor
  • Secondary pulley speed sensor
  • Turbine speed sensor

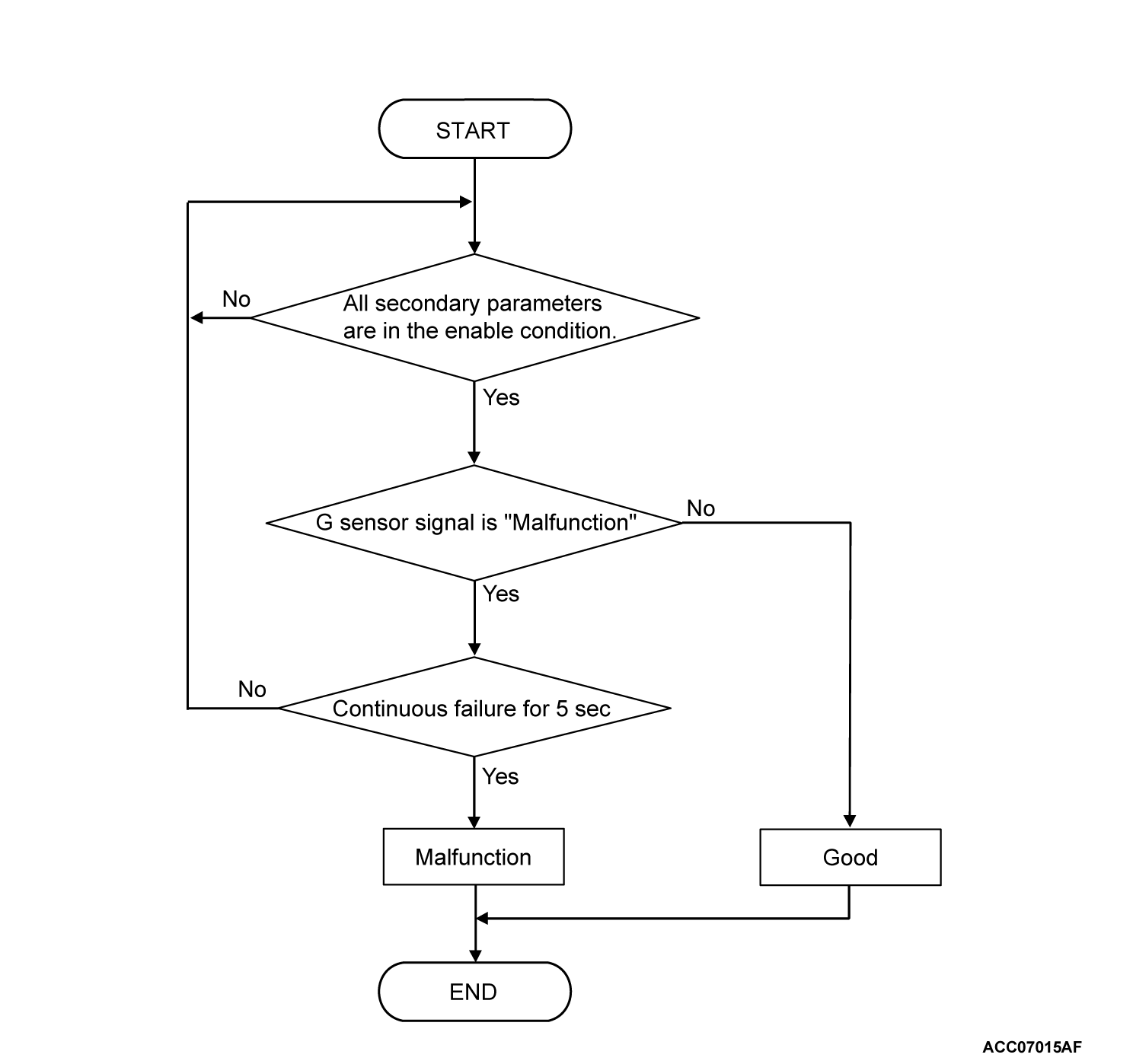

LOGIC FLOW CHARTS (Monitor Sequence)


DTC SET CONDITIONS
Check Conditions
  • Voltage of battery: 10 volts or more.
  • Engine speed: 450 r/min or more.
  • After the following conditions are approved time since normal value receipt: More than 2 seconds.
    • Vehicle speed: 5 km/h (3 mph) or more.
Judgment Criteria
  • G sensor signal: malfunction. (5 seconds)


OBD-II DRIVE CYCLE PATTERN
Transmission range: D (Drive the vehicle for 10 seconds or more while the accelerator opening angle is 20% or more.)


PROBABLE CAUSES
  • Malfunction of ASC-ECU
  • Malfunction of TCM


DIAGNOSTIC
STEP 1. M.U.T.-III diagnostic trouble code
Check if the ASC-related diagnostic trouble code is set.
Is the ASC-related diagnostic trouble code set?
Carry out the appropriate troubleshooting.
Go to Step 2.

STEP 2. Symptom recheck after erasing diagnostic trouble code
Drive the vehicle at 5 km/h (3 mph) or more, and check again.
Is the diagnostic trouble code set?
Replace the TCM.
Intermittent malfunction (Refer to GROUP 00 - How to Cope with Intermittent Malfunctions ).
