DIAGNOSTIC FUNCTION
TCM detects the ABS/ASC abnormality.
DESCRIPTIONS OF MONITOR METHODS
When the ABS/ASC error signal reception continues for 0.5 seconds.
MONITOR EXECUTION
- When 1.05 seconds have elapsed after TCM started (not during scan tool communication)
MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- P0712, P0713: Malfunction of the transmission fluid temperature sensor
- P0715: Malfunction of primary pulley speed sensor
- P0720: Malfunction of secondary pulley speed sensor
- P0730: Incorrect gear ratio
- P0966, P0967: Malfunction of secondary pressure solenoid valve
- P0970, P0971: Malfunction of primary pressure solenoid valve
- P2720, P2721: Malfunction of select pressure solenoid valve
- P2763, P2764: Malfunction of lock-up solenoid valve
- P2765: Malfunction of turbine speed sensor
Sensor (The sensor below is determined to be normal)
- Transmission fluid temperature sensor
- Primary pulley speed sensor
- Secondary pulley speed sensor
- Turbine speed sensor

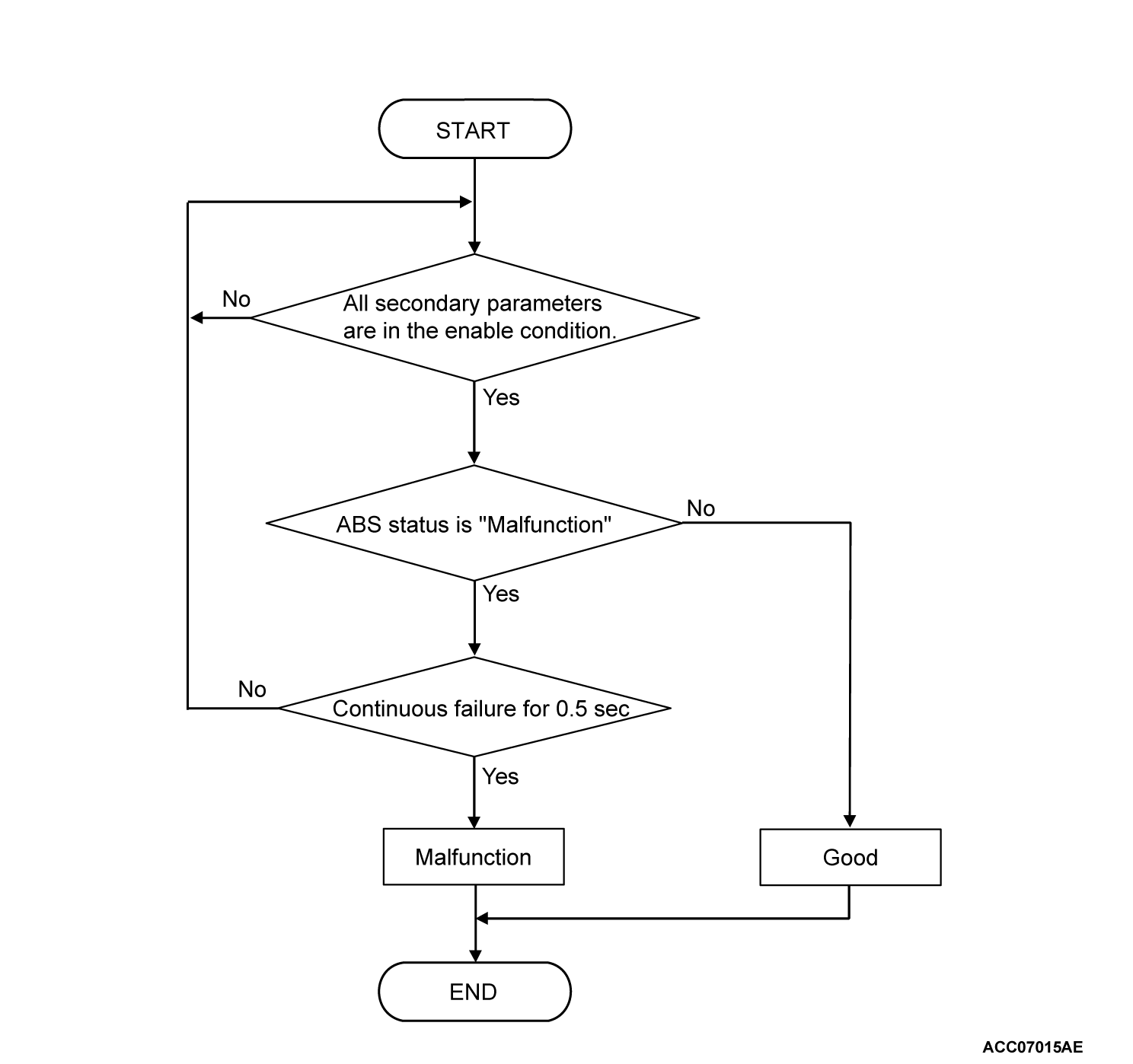

LOGIC FLOW CHARTS (Monitor Sequence)
DTC SET CONDITIONS
Check Conditions
- Time after TCM start: More than 1.05 seconds.
Judgment Criteria
- ABS status: Malfunction (0.5 second)
OBD-II DRIVE CYCLE PATTERN
Ignition switch: ON (start the engine and keep it for 10 seconds or more, not during scan tool communication)
PROBABLE CAUSES
- Malfunction of the ABS/ASC system
- Malfunction of TCM
![[Previous]](../../../buttons/fprev.png)
![[Next]](../../../buttons/fnext.png)
)
Carry out the appropriate troubleshooting.
Go to Step 2
.
