DTC P0711: Malfunction of Transmission Fluid Temperature Sensor (Abnormality in transmission fluid temperature sensor function)




DIAGNOSTIC FUNCTION
TCM conducts fault detection by monitoring the terminal voltage of the transmission fluid temperature sensor.


DESCRIPTIONS OF MONITOR METHODS
The CVT fluid temperature does not reach 20°C (68°F) after the vehicle is driven for at least 15 minutes under the following condition.
  • Selector lever position: D
  • Vehicle speed: 50 km/h (32 mph) or more
  • Accelerator opening angle: 12.5 % or more
  • Engine speed: 450 r/min or more


MONITOR EXECUTION
  • Transmission range switch position: D
  • Vehicle speed: 50 km/h (32 mph) or more
  • Accelerator opening angle: 12.5 % or more
  • Engine speed: 450 r/min or more


MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)
Other Monitor (There is no temporary DTC set in memory for the item monitored below)
  • P0842, P0843: Malfunction of the secondary pressure sensor
  • P0847, P0848: Malfunction of primary pressure sensor
  • P2720, P2721: Malfunction of select pressure solenoid valve
Sensor (The sensor below is determined to be normal)
  • Secondary pressure sensor
  • Primary pressure sensor


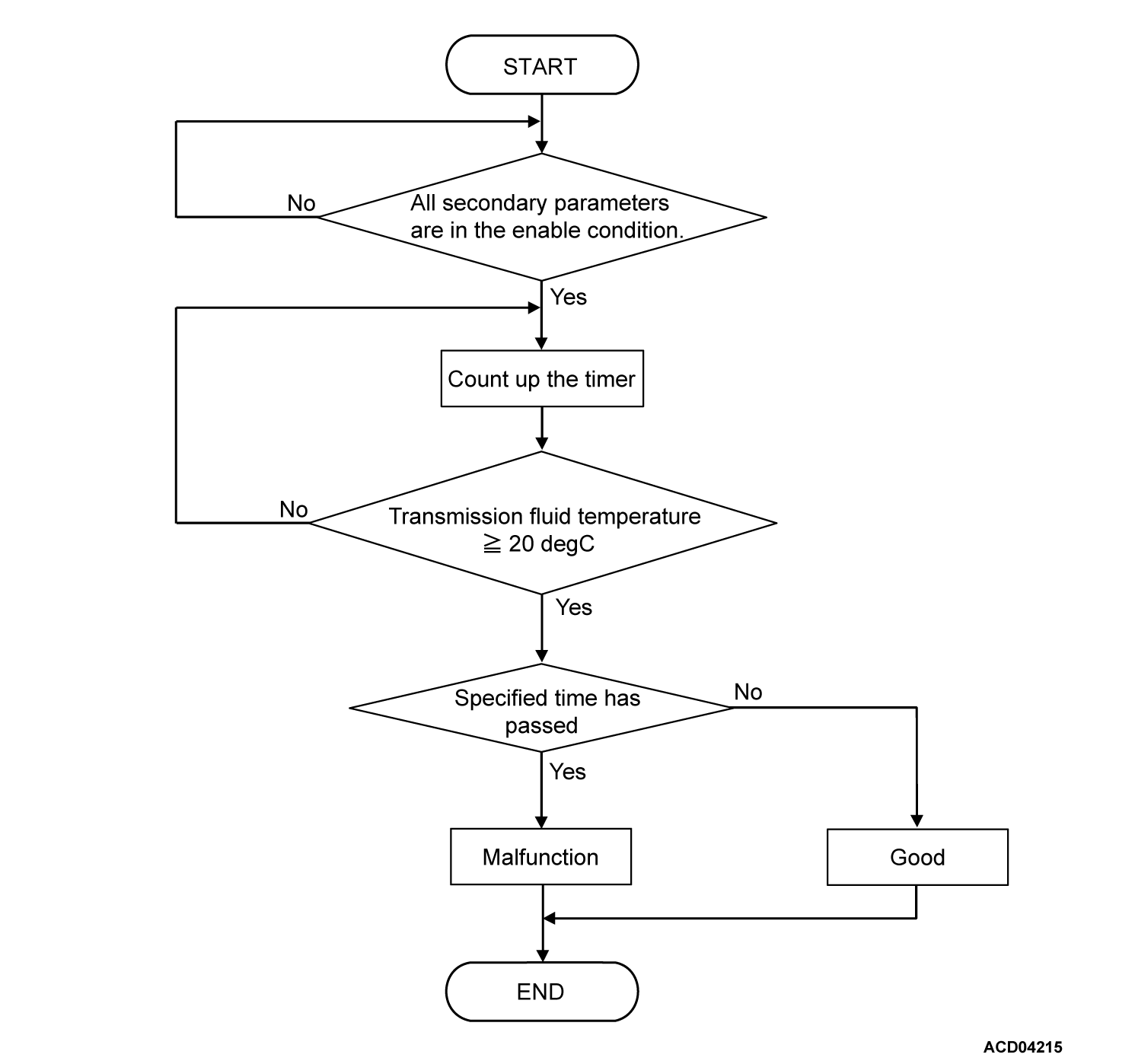

LOGIC FLOW CHARTS (Monitor Sequence)


DTC SET CONDITIONS
Check Conditions
  • Transmission fluid temperature: Less than 20°C (68°F)
  • Transmission range switch position: D
  • Vehicle speed: 50 km/h (32 mph) or more.
  • Accelerator pedal position sensor voltage: 1.19 V or more.
  • Engine speed: 450 r/min or more.
Judgment Criteria
  • The transmission fluid temperature does not rise to 20°C (68°F) within the specified period (200 - 1,000 seconds) after the engine is started.


OBD-II DRIVE CYCLE PATTERN
Warm up the engine in order to increase the Transmission fluid temperature: 20 °C (68°F) or more


PROBABLE CAUSES
  • Malfunction of transmission fluid temperature sensor
  • Damaged wiring harness and connectors
  • Malfunction of TCM


DIAGNOSIS
STEP 1. Transmission fluid temperature sensor check
Refer to .
Is the check result normal?
Go to Step 2.
Replace the transmission fluid temperature sensor (valve body harness). (Refer to ).

STEP 2. Symptom recheck after erasing diagnostic trouble code
Is the diagnostic trouble code set?
Replace TCM.
Intermittent malfunction (Refer to GROUP 00 - How to Cope with Intermittent Malfunctions ).
