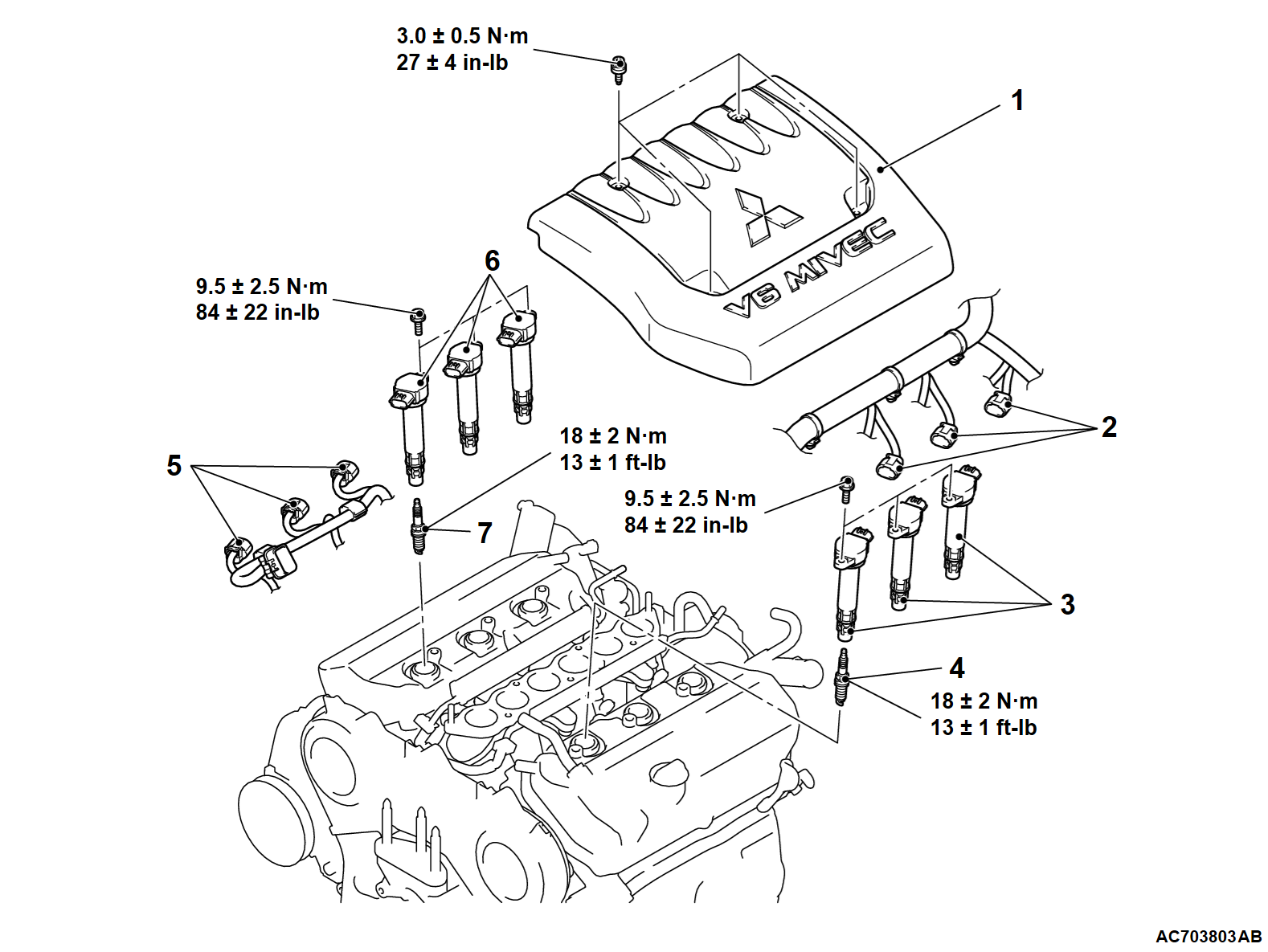

REMOVAL AND INSTALLATION <3.0L Engine>


Removal steps
1.Engine cover
2.Ignition coil connector connection (Left bank)
3.Ignition coil (Left bank)
4.Spark plug (Left bank)
Intake manifold plenum (Refer to GROUP 15, Intake Manifold Plenum ).
5.Ignition coil connector connection (Right bank)
6.Ignition coil (Right bank)
7.Spark plug (Right bank)
