REMOVAL AND INSTALLATION


Pre-removal Operation
  • Engine Coolant Draining (Refer to GROUP 14 - On-vehicle Service, Engine Coolant Change ).
  • Engine Cover Removal (Refer to GROUP 16 - Ignition System, Ignition coil ).
  • Air Cleaner Assembly Removal (Refer to ).
  • Throttle Body Assembly Removal (Refer to GROUP 13B - Throttle Body Assembly ).
Post-installation Operation
  • Throttle Body Assembly Installation (Refer to GROUP 13B - Throttle Body Assembly ).
  • Air Cleaner Assembly Installation (Refer to ).
  • Engine Cover Installation (Refer to GROUP 16 - Ignition System, Ignition coil ).
  • Engine Coolant Refilling (Refer to GROUP 14 - On-vehicle Service, Engine Coolant Change ).

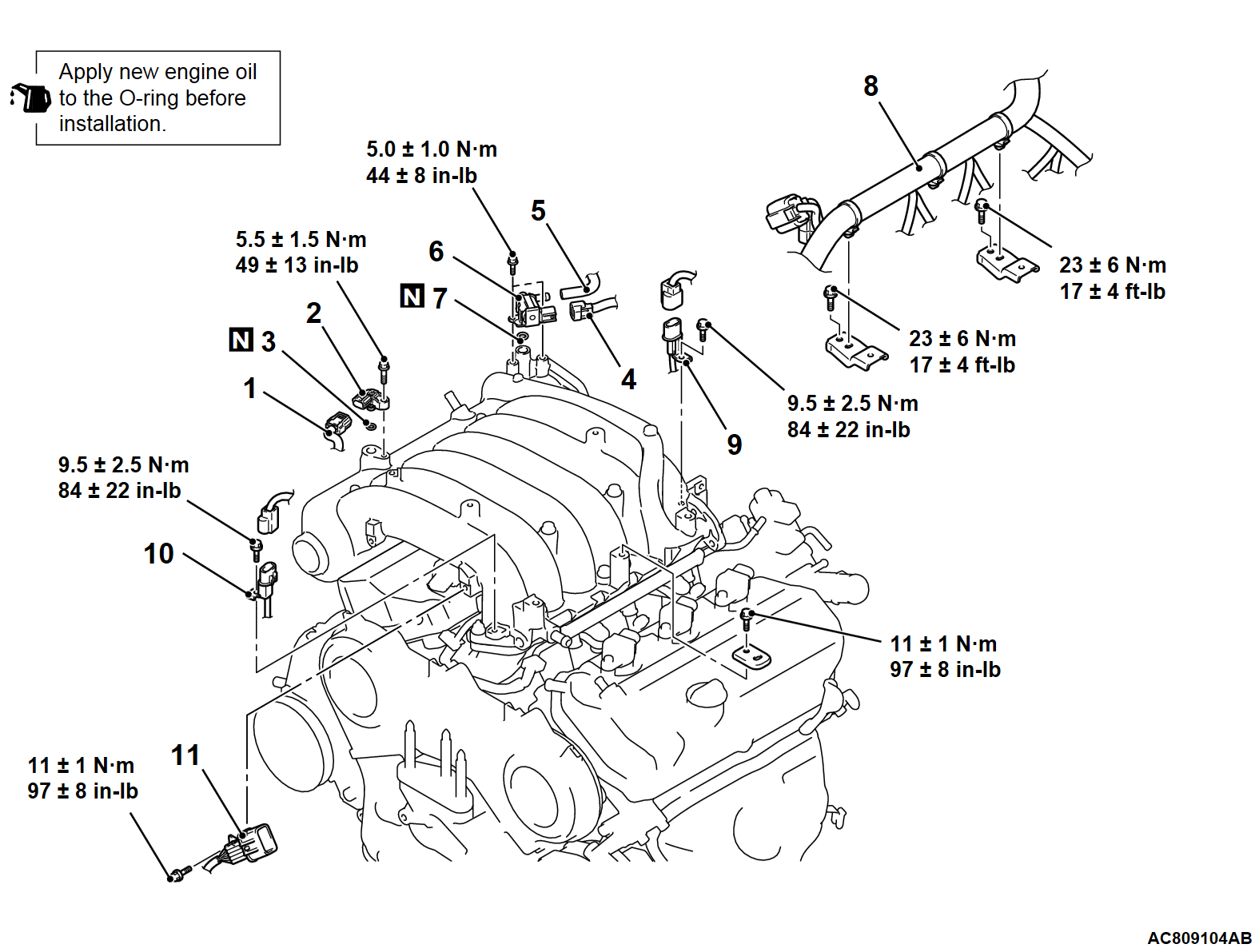

Removal steps
1.Manifold absolute pressure sensor connector
>>A<<2.Manifold absolute pressure sensor
3.O-ring
4.Evaporative emission purge solenoid connector
5.Purge hose connection
6.Evaporative emission purge solenoid
7.O-ring
8.Control wiring harness connection
9.Right bank knock sensor connector
10.Left bank knock sensor connector
11.Control wiring harness and injector wiring harness combination connector

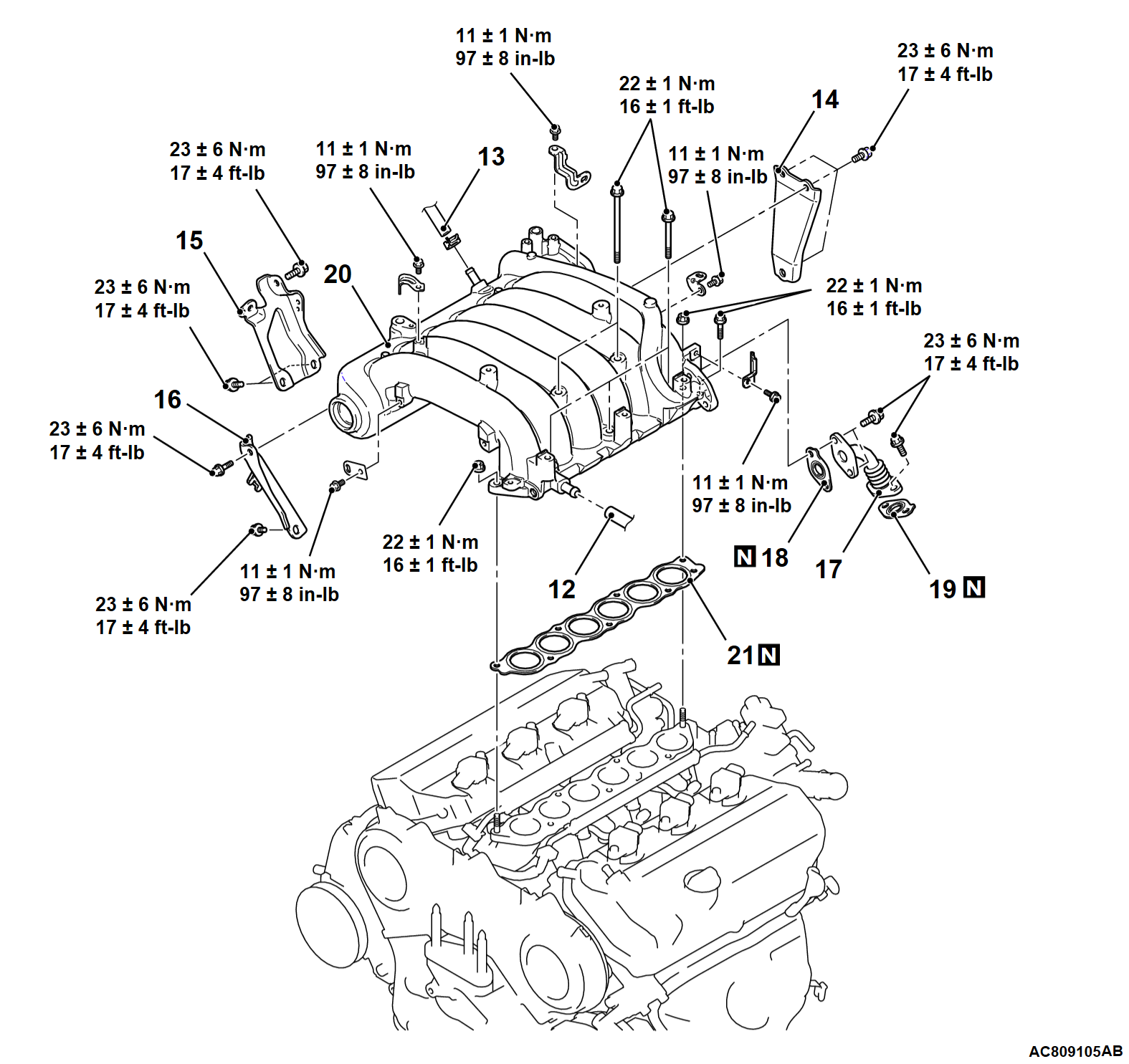

Removal steps
12.PCV hose connection
13.Brake booster vacuum hose connection
14.Throttle body stay
15.Intake manifold plenum stay (rear)
16.Intake manifold plenum stay (front)
17.EGR valve pipe
18.EGR valve pipe gasket
19.EGR valve pipe gasket
20.Intake manifold plenum
21.Intake manifold plenum gasket


INSTALLATION SERVICE POINT


>>A<< MANIFOLD ABSOLUTE PRESSURE SENSOR INSTALLATION
caution
  • Install the manifold absolute pressure sensor, taking care not to give a shock to it.
  • Do not use a manifold absolute pressure sensor that has fallen down.
