REMOVAL AND INSTALLATION <3.0L Engine>


Pre-removal Operation
  • Engine Room Under Cover Front A and Engine Room Side Cover (RH) Removal (Refer to GROUP 51 - Under Cover ).
Post-installation Operation
  • Generator Drive Belt Tension Check (Refer to GROUP 11C - On-vehicle Service, Drive Belt Tension Check ).
  • Engine Room Under Cover Front A and Engine Room Side Cover (RH) Installation (Refer to GROUP 51 - Under Cover ).

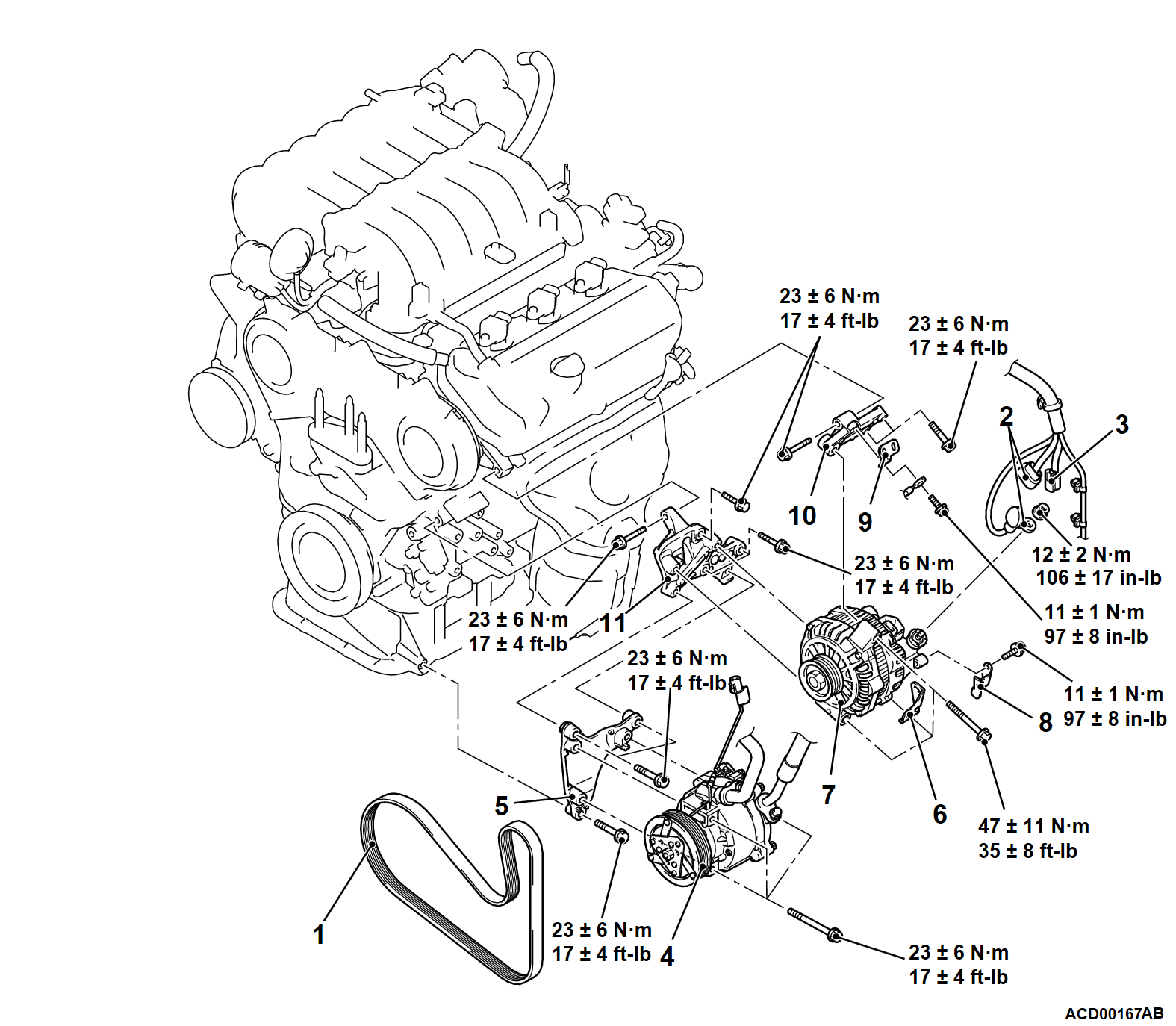

Removal steps
<<A>>1.Generator drive belt
2.Generator connector and terminal connection
3.A/C compressor and clutch assembly connector connection
<<B>>>>B<<4.A/C compressor and clutch assembly
5.Compressor bracket
6.Harness bracket
<<C>>>>A<<7.Generator assembly
8.Harness bracket
9.Harness bracket
10.Generator upper bracket
11.Generator lower bracket


REMOVAL SERVICE POINTS


<<A>> GENERATOR DRIVE BELT REMOVAL
1.
cautionWhen the generator drive belt is reused, draw an arrow indicating the rotating direction on the back of the generator drive belt using chalk to install the same direction.

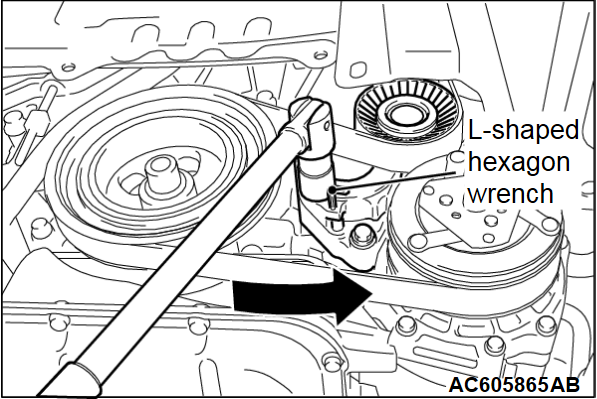

Turn the generator drive belt auto-tensioner to counterclockwise, and insert the L-shaped hexagon wrench to the generator drive belt auto-tensioner hole in order to fix the generator drive belt auto-tensioner.
2. Remove the generator drive belt.




<<B>> A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL
1. Remove the A/C compressor and clutch assembly from the A/C compressor bracket with the hose still attached.
2. Place the removed A/C compressor and clutch assembly where it will not be a hindrance when removing and installing the generator assembly, and secure it with a cord or wire.



<<C>> GENERATOR ASSEMBLY REMOVAL
Move the A/C compressor and clutch assembly to one side, and then remove the generator assembly from under the vehicle.



INSTALLATION SERVICE POINTS


>>A<< GENERATOR ASSEMBLY INSTALLATION
1. Temporarily tighten the generator assembly to the generator bracket.

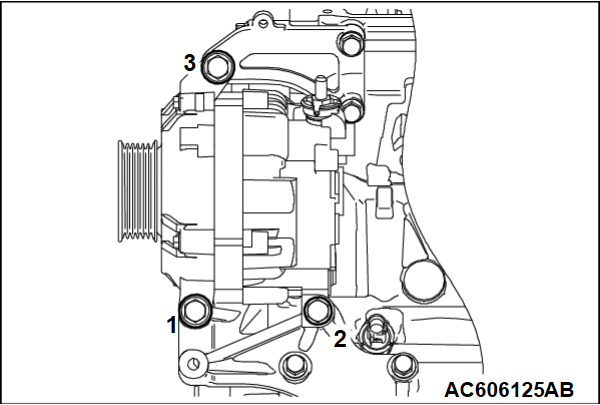

2. In accordance with the tightening order shown in the illustration, tighten the installation bolts for the generator bracket to the specified torque.
Tightening torque: 47 ± 11 N·m (35 ± 8 ft-lb)




>>B<< A/C COMPRESSOR AND CLUTCH ASSEMBLY INSTALLATION

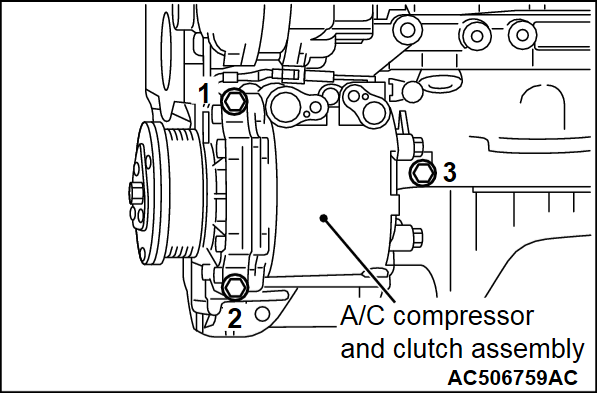

Tighten A/C compressor and clutch assembly mounting bolts to the specified torque in the order of number shown in the illustration.
Tightening torque: 23 ± 6 N·m (17 ± 4 ft-lb)
