DTC P0133: Linear Air-Fuel Ratio Sensor Circuit Slow Response (bank 1, sensor 1)




TECHNICAL DESCRIPTION
  • The ECM effects air/fuel ratio feedback control in accordance with the signals from the right bank linear air-fuel ratio sensor.
  • If the right bank linear air-fuel ratio sensor has deteriorated, corrections will be made by the heated oxygen sensor (rear).


DESCRIPTIONS OF MONITOR METHODS
  • If the response speed of the right bank linear air-fuel ratio sensor to the change in the air-fuel ratio is too slow, the DTC is set as the right bank linear air-fuel ratio sensor deterioration.


MONITOR EXECUTION
  • Continuous


MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC set in memory for the item monitored below)
  • Right bank linear air-fuel Ratio Sensor heater monitor
  • Misfire monitor
  • Fuel system monitor
Sensor (The sensor below is determined to be normal)
  • Mass airflow sensor
  • Engine coolant temperature sensor
  • Intake air temperature sensor
  • Barometric pressure sensor
  • Throttle position sensor
  • Accelerator pedal position sensor


DTC SET CONDITIONS

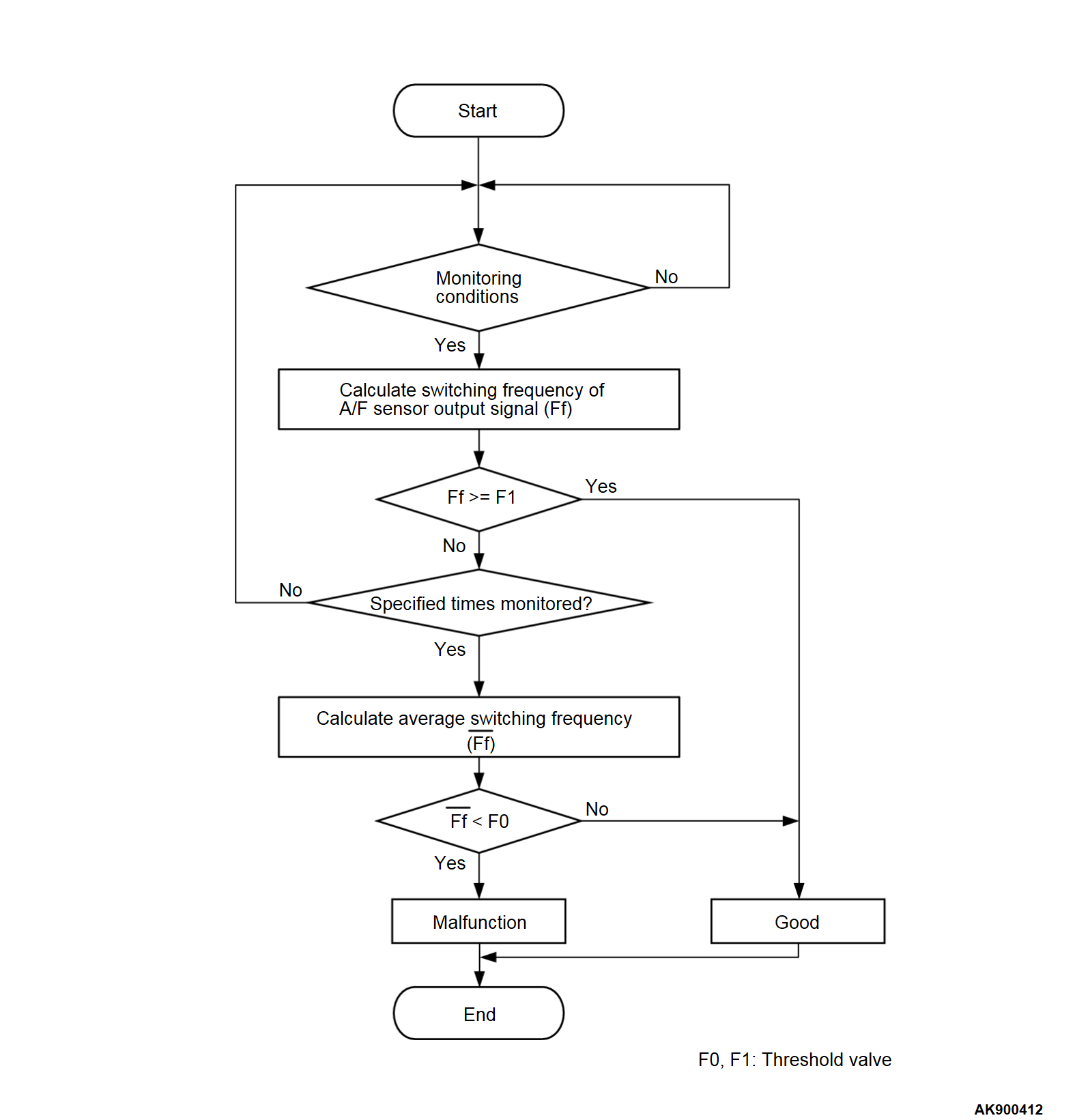

Logic Flow Chart


Check Conditions
  • Engine speed is between 1,188 and 3,000 r/min.
  • Volumetric efficiency is between 21.8 and 68.8 percent.
  • Mass airflow sensor output is 8 g/sec or more.
  • Engine coolant temperature is more than 60°C (140°F).
  • Under the closed loop air/fuel control.
  • The accelerator pedal is depressed.
  • Short-term fuel trim is between -25 and +25 percent.
  • More than 3 seconds have passed after the above mentioned conditions have been met.
  • During the drive cycle, the ECM performs monitoring with the accumulated total time of 10 seconds, 5 times.
Judgment Criteria
  • The average frequency is less than 8 times.
  • The frequency is less than 13 times.


FAIL-SAFE AND BACKUP FUNCTION
  • None


OBD-II DRIVE CYCLE PATTERN
  • Refer to Diagnosis Function - OBD-II Drive Cycle - Pattern 1 .


TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
  • Right bank linear air-fuel Ratio Sensor failed.
  • Connector damage.



DIAGNOSIS
Required Special Tools:
  • MB992744: Vehicle Communication Interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite Main Harness A
  • MB992747: V.C.I.-Lite USB Cable Short
  • MB992748: V.C.I.-Lite USB Cable Long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
STEP 1. Test the OBD-II drive cycle.
cautionTo prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).
(1) Connect scan tool (M.U.T.-III). Refer to HOW TO CONNECT THE SCAN TOOL (M.U.T.-III) .
(2) Turn the ignition switch to the "ON" position and delete the DTC.
(3) Carry out the test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 1 .
(4) Check the diagnostic trouble code (DTC).
Is DTC P0133 set?
Replace the right bank linear air-fuel ratio sensor. Then go to Step 2.
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/ Inspection Service Points - How to Cope with Intermittent Malfunctions .

STEP 2. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 1 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P0133 set?
Retry the troubleshooting.
The inspection is complete.
