DTC P0456: Evaporative Emission Control System Leak Detected (very small leak) <Except vehicles for Mexico>




TECHNICAL DESCRIPTION
  • The ECM monitors the Evaporative Emission (EVAP) System pressure.
  • The ECM controls the evaporative emission ventilation solenoid. It closes the evaporative emission ventilation solenoid to seal the evaporative emission canister side of the system.
  • The evaporative emission purge solenoid is opened to allow manifold vacuum to create low pressure (vacuum) in the EVAP system.
  • When the EVAP system develops a vacuum of 2 kPa (0.29 psi), the evaporative emission purge solenoid is closed and the fuel system vacuum is maintained at 2 kPa (0.29 psi).
  • The ECM determines whether there is a leak in the EVAP system by monitoring the vacuum inside the fuel tank.
  • The test is stopped when fuel vapor pressure exceeds predetermined limits.


DESCRIPTIONS OF MONITOR METHODS
  • Measure reverting pressure after depressurizing by intake manifold negative pressure and detect malfunction if reverting pressure rises largely.


MONITOR EXECUTION
  • Once per driving cycle.


MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)
Other Monitor (There is no temporary DTC set in memory for the item monitored below)
  • Evaporative emission purge solenoid monitor
  • Evaporative emission purge system monitor
  • Fuel tank differential pressure sensor monitor
  • Evaporative emission ventilation solenoid monitor
  • Fuel level sensor monitor
  • Fuel temperature sensor monitor
Sensor (The sensors below are determined to be normal)
  • Mass airflow sensor
  • Barometric pressure sensor
  • Intake air temperature sensor
  • Engine coolant temperature sensor


DTC SET CONDITIONS
Logic Flow Chart (Monitor Sequence)


Check Conditions
Conditions
  • Engine coolant temperature is 36°C (97°F) or less when the engine is started.
  • Intake air temperature is 36°C (97°F) or less when the engine is started.
  • Engine coolant temperature is higher than 20°C (67°F).
  • When the evaporative emission purge solenoid and evaporative emission ventilation solenoid are closed, the pressure in the fuel tank is less than 324 Pa (0.09 in.Hg).
  • Amount of remaining fuel is 40 - 85 percent of capacity.
  • Barometric pressure is higher than 76 kPa (22.4 in.Hg).
  • Intake air temperature is higher than -10°C (14°F)
  • Fuel tank temperature is less than 33°C (91°F).
  • Fuel tank differential pressure sensor output voltage is 1.0 - 4.0 volts.
  • At least 10 seconds have passed since the last monitor was complete.
Judgment Criterion
  • Internal pressure of the fuel tank has changed more than 1,177 - 1,497 Pa (0.34 - 0.44 in.Hg) in 88 seconds after the tank and vapor line were closed.


FAIL-SAFE AND BACKUP FUNCTION
  • None


OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 6 .


TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THIS CODE TO BE SET ARE:)
  • Loose fuel cap.
  • Fuel cap relief pressure is incorrect.
  • Malfunction of the evaporative emission canister seal.
  • Malfunction of the fuel tank, purge line or vapor line seal.
  • Malfunction of the evaporative emission ventilation solenoid.



DIAGNOSIS
Required Special Tools:
  • MB992744: Vehicle Communication Interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite Main Harness A
  • MB992747: V.C.I.-Lite USB Cable Short
  • MB992748: V.C.I.-Lite USB Cable Long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
STEP 1. Using scan tool (M.U.T.-III), check the evaporative emission system monitor test.
caution
  • To prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).
  • During this test, the ECM will automatically increase the engine speed to 1,600 r/min or greater. Check that the transaxle is set to "P" position.
(1) Connect scan tool (M.U.T-III). Refer to HOW TO CONNECT THE SCAN TOOL (M.U.T.-III) .
(2) Turn the ignition switch to the "ON" position.
(3) Erase the DTCs using scan tool (M.U.T.-III).
(4) Check that the fuel cap is securely closed (Tighten until three clicks are heard).
(5) Start the engine.
(6) Select "Special Function".
(7) Select "Evap Leak Monitor."
(8) During this test, keep the accelerator pedal at the idle position.
(9) Keep the engine speed and engine load within the specified range. When the monitor test starts, the "In Progress" item on scan tool (M.U.T.-III) will change from "NO" to "YES".
(10) Turn the ignition switch to the "LOCK" (OFF) position.
Is "Evap Leak was detected." displayed on scan tool (M.U.T-III)?
A malfunction has been detected during the monitor test. Refer to the Diagnostic Trouble Code Chart and diagnose any other DTCs that are set . If no other DTCs have been set, go to Step 2.
: The evaporative emission system is working properly at this time. Explain to the customer that an improperly tightened fuel cap can cause the MIL to illuminate. Return the vehicle to the customer.
: The EVAP monitor has been interrupted during the test. Turn the ignition switch to the "LOCK" (OFF) position once, and repeat the monitoring from Step 1.

STEP 2. Check the evaporative emission purge solenoid for leaks.
Refer to GROUP 17, Emission Control - Evaporative Emission Control System - Evaporative Emission Purge Solenoid Check .
Does the evaporative emission purge solenoid hold pressure?
Go to Step 3.
Replace the evaporative emission purge solenoid. Then go to Step 14.

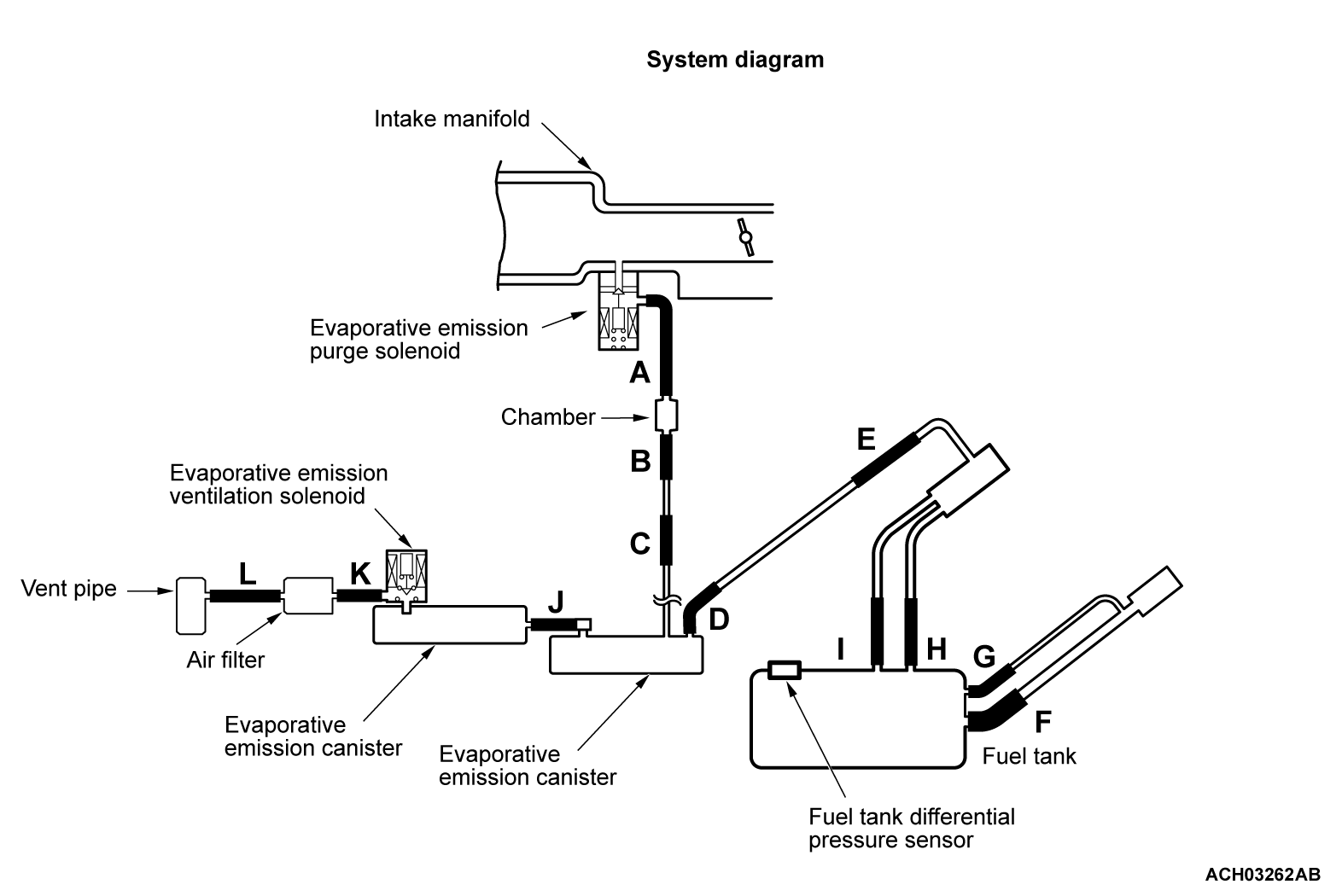

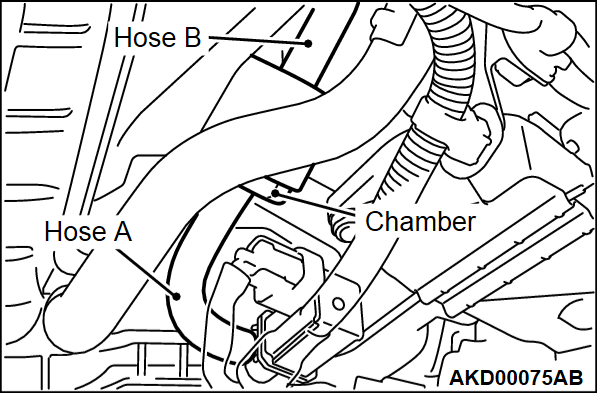

STEP 3. Check for leaks in evaporative emission hose A, chamber and hose B.
Use a hand vacuum pump to check hose A, chamber and hose B.
Do the hoses and chamber hold vacuum?
Go to Step 4.
Replace any damaged hose. Then go to Step 14.

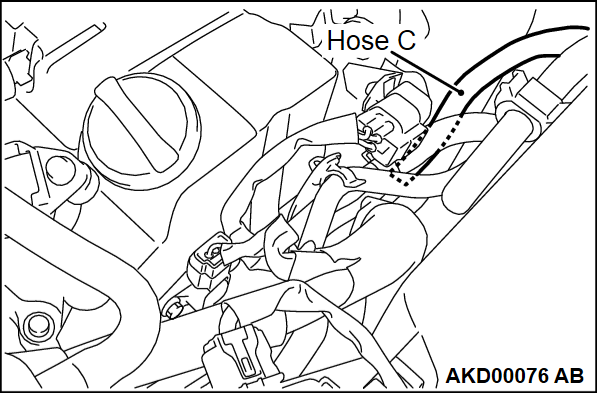

STEP 4. Check for leaks in evaporative emission hose C.
Use a hand vacuum pump to check hose C.
Does hose C hold vacuum?
Go to Step 5.
Replace any damaged hose. Then go to Step 14.

STEP 5. Perform the pressure test on the evaporative emission system.

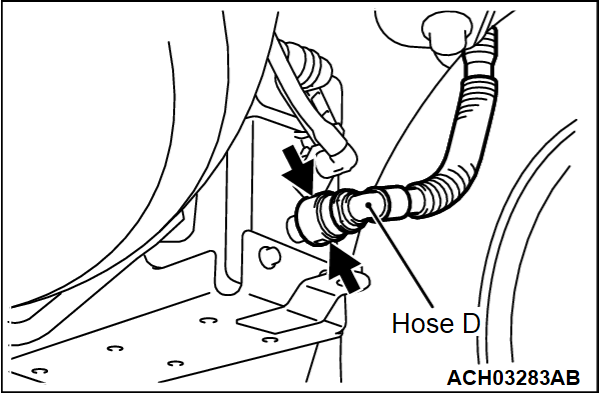

(1) Disconnect hose D from the evaporative emission canister while holding the release buttons indicated in the illustration pressed by fingers.

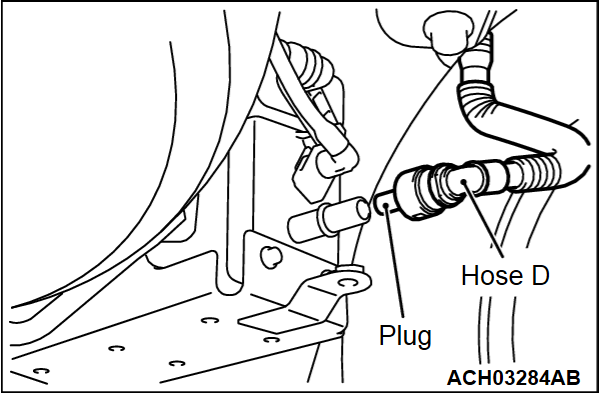

(2) Plug the disconnected end of hose D.
(3) Confirm that the evaporative emission system pressure pump (Miller number 6872A) is operating properly. Perform the self-test as described in the pump manufacturer's instructions.
(4) Remove the fuel cap.
(5) Connect the evaporative emission system pressure pump (Miller number 6872A) to the fuel tank filler tube by using fuel tank adapter (MLR-8382).
(6) Pressure test the system to determine whether any leaks are present.
noteThe "Pressure test" in this procedure refers to the I/M240 Simulation Test. The eight steps of this test are described in the manufacturer's instructions for the evaporative emission system pressure pump, Miller number 6872A.
(7) Remove the evaporative emission system pressure pump (Miller number 6872A) and the fuel tank adapter (MLR-8382), and reinstall the fuel cap.
(8) Connect hose D to the evaporative emission canister.
Is the evaporative emission system line free of leaks?
Go to Step 10.
Go to Step 6.

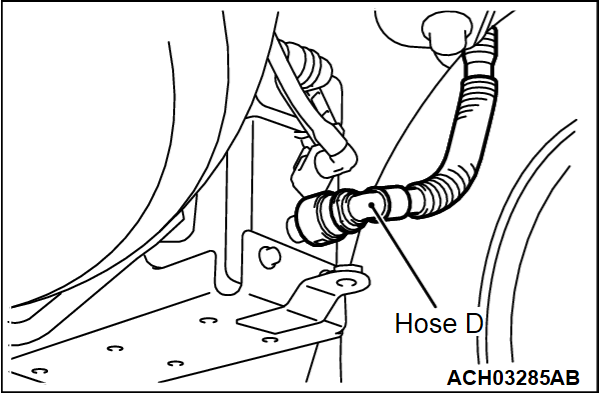

STEP 6. Check for leaks in evaporative emission hose D.
Use a hand vacuum pump to check hose D.
Does hose D hold vacuum?
Go to Step 7.
Replace any damaged hose. Then go to Step 14.

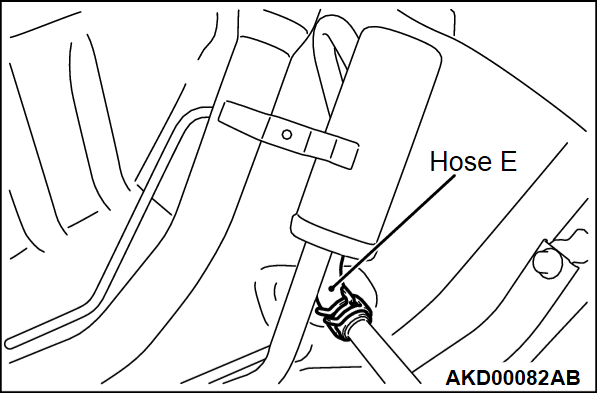

STEP 7. Check for leaks in evaporative emission hose E.
Use a hand vacuum pump to check hose E.
Does hose E hold vacuum?
Go to Step 8.
Replace any damaged hose. Then go to Step 14.

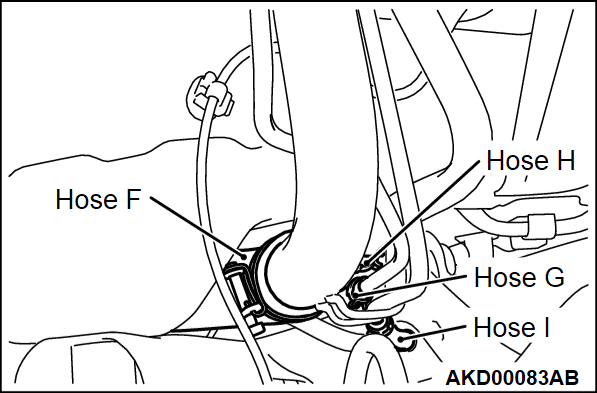

STEP 8. Check for leaks in evaporative emission hoses F, G, H and I.
(1) Drain the fuel from the fuel tank.
(2) Use a hand vacuum pump to check each hose F, G, H and I.
Does the hose hold vacuum?
Go to Step 9.
Replace any damaged hose. Then go to Step 14.

STEP 9. Check for leaks in the fuel tank.
(1) Visually check for cracks or other leaks in the fuel tank.
noteCarefully check the fuel pump module and the fuel tank differential pressure sensor installation in the fuel tank.
(2) Connect the evaporative emission system pressure pump (Miller number 6872A) to the fuel filler hose.
(3) Plug the hose and the nipple shown in the illustration.
noteIf these items are not securely plugged now, the fuel could leak in the next step.
(4) Pressurize the fuel tank with the evaporative emission system pressure pump.
(5) In the pressurized state, check for leaks by applying a soapy water solution to each section and look for bubbles.
Are any leaks found?
: Repair or replace the leaked parts and check again that there are no leaks. Then reinstall the fuel tank. Then go to Step 14.
: Replace the fuel tank. Go to Step 14.
When there is no leak, reinstall the fuel tank. Then go to Step 10.

STEP 10. Check the evaporative emission canister for vacuum leaks.
(1) Connect a hand vacuum pump to the evaporative emission canister and plug the other nipples.
(2) Apply a pressure on the hand vacuum pump, and confirm that air is maintained.
(3) Disconnect the hand vacuum pump and remove the plugs.
Is the evaporative emission canister in good condition?
Go to Step 11.
Replace the evaporative emission canister. Then go to Step 14.

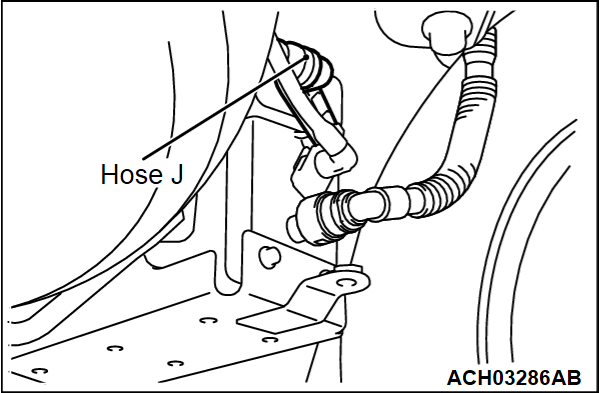

STEP 11. Check for leaks in evaporative emission hose J.
Use a hand vacuum pump to check hose J.
Does hose J hold vacuum?
Go to Step 12.
Replace any damaged hose. Then go to Step 14.

STEP 12. Check the evaporative emission ventilation solenoid for leaks.
Refer to GROUP 17, Emission Control - Evaporative Emission Canister and Fuel Tank Pressure Relief Valve - Inspection .
Does the evaporative emission ventilation solenoid hold pressure?
Go to Step 13.
Replace the evaporative emission canister and evaporative emission ventilation solenoid assembly. Then go to Step 14.

STEP 13. Using scan tool (M.U.T.-III), check the evaporative emission system monitor test.
caution
  • During this test, the ECM automatically increases the engine speed to 1,600 r/min or greater. Check that the transaxle is set to "P" position.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the DTCs using scan tool (M.U.T.-III).
(3) Check that the fuel cap is securely closed (Tighten until three clicks are heard).
(4) Start the engine.
(5) Select "Special Function."
(6) Select "Evap Leak Monitor."
(7) During the test, keep the accelerator pedal at the idle position.
(8) Keep the engine speed and engine load within the specified range. When the monitor test starts, the "In Progress" item on scan tool (M.U.T.-III) will change from "NO" to "YES".
(9) Turn the ignition switch to the "LOCK" (OFF) position.
Is "Evap Leak was detected." displayed on scan tool (M.U.T-III)?
Replace the ECM (Refer to Removal and Installation ). Then go to Step 14.
: The evaporative emission system is working properly at this time. Go to Step 14 .
: The EVAP monitor has been interrupted during the test. Turn the ignition switch to the "LOCK" (OFF) position once, and repeat the monitoring from Step 13.

STEP 14. Perform the OBD-II drive cycle.
(1) Confirm the repair by performing the appropriate drive cycle (Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 6 ).
(2) Read the DTC.
Is DTC P0456 set?
Repeat the troubleshooting.
The procedure is complete.
