EVAPORATIVE EMISSION VENTILATION SOLENOID CHECK


<2.4L Engine - Except vehicles for Mexico>

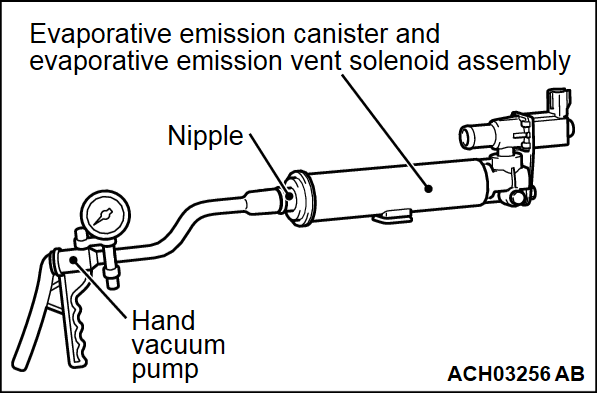

1. Connect a hand vacuum pump to nipple of the evaporative emission canister and evaporative emission ventilation solenoid assembly.

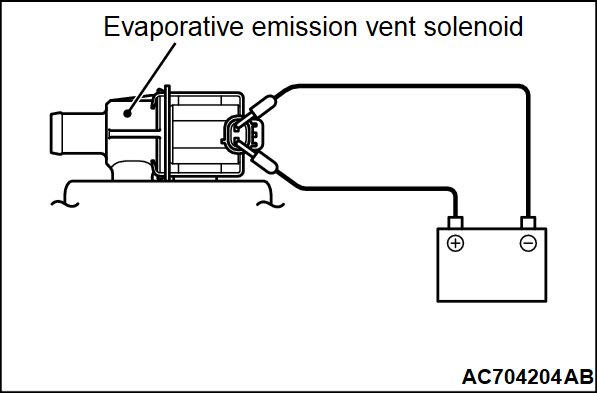

2. Check air tightness by applying a vacuum with voltage applied directly from the battery to the evaporative emission ventilation solenoid and without applying voltage.

Battery voltageNormal condition
AppliedVacuum maintained
Not appliedVacuum leaks
Battery voltageNormal condition
AppliedVacuum maintained
Not appliedVacuum leaks

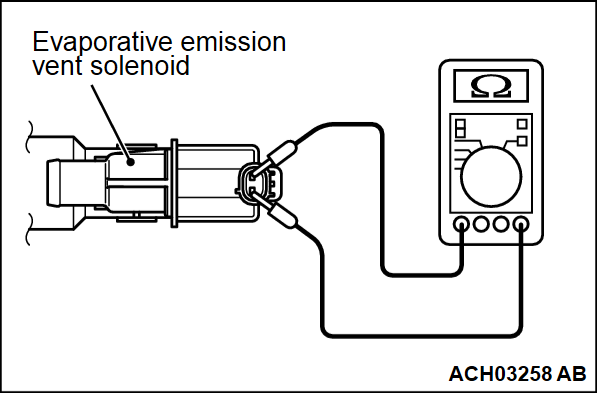

3. Measure the resistance between the terminals of the solenoid.
Standard value: 55 - 63 Ω [at 20°C (68°F)]




<2.4L Engine - Vehicles for Mexico, 3.0L Engine>

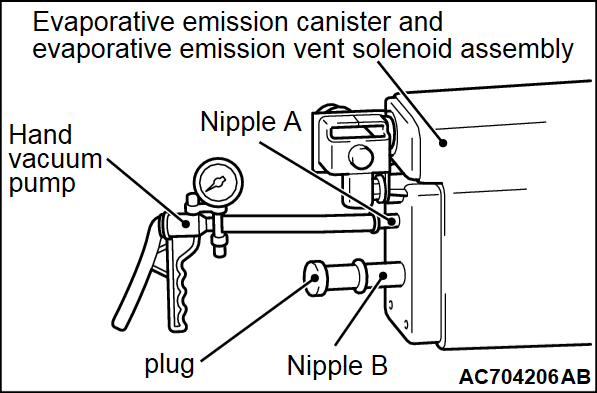

1. Connect a hand vacuum pump to nipple (A) of the evaporative emission canister and evaporative emission ventilation solenoid assembly.
2. Connect a plug to nipple (B) of the evaporative emission canister and evaporative emission ventilation solenoid assembly.

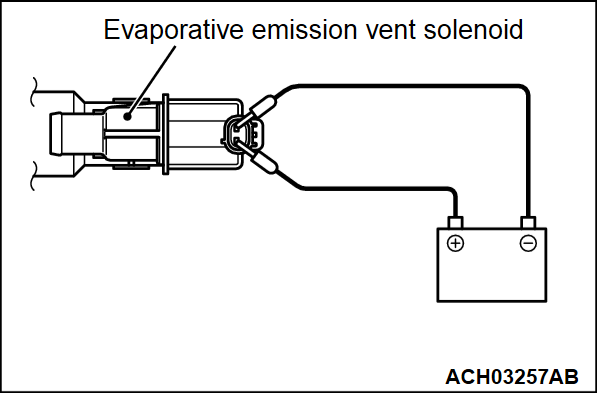

3. Check air tightness by applying a vacuum with voltage applied directly from the battery to the evaporative emission ventilation solenoid and without applying voltage.

Battery voltageNormal condition
AppliedVacuum maintained
Not appliedVacuum leaks
Battery voltageNormal condition
AppliedVacuum maintained
Not appliedVacuum leaks

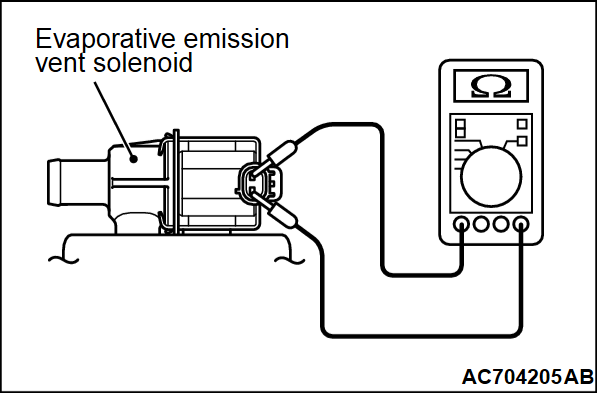

4. Measure the resistance between the terminals of the solenoid.
Standard value: 17 - 21 Ω [at 20°C (68°F)]
