DTC P0333: Left Bank Knock Sensor Circuit High (Bank 2)




CIRCUIT OPERATION
  • The left bank knock sensor sends a signal voltage to the ECM terminal K/S.
  • The ground terminal is grounded with ECM terminal K/SE.


TECHNICAL DESCRIPTION
  • The left bank knock sensor converts the vibration of the cylinder block into a voltage and outputs it.
  • The ECM checks whether the voltage is within a specified range.


DESCRIPTIONS OF MONITOR METHODS
  • Left bank knock sensor output voltage is out of specified range.


MONITOR EXECUTION
  • Continuous


MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
  • Not applicable
Sensor (The sensor below is determined to be normal)
  • Not applicable


DTC SET CONDITIONS

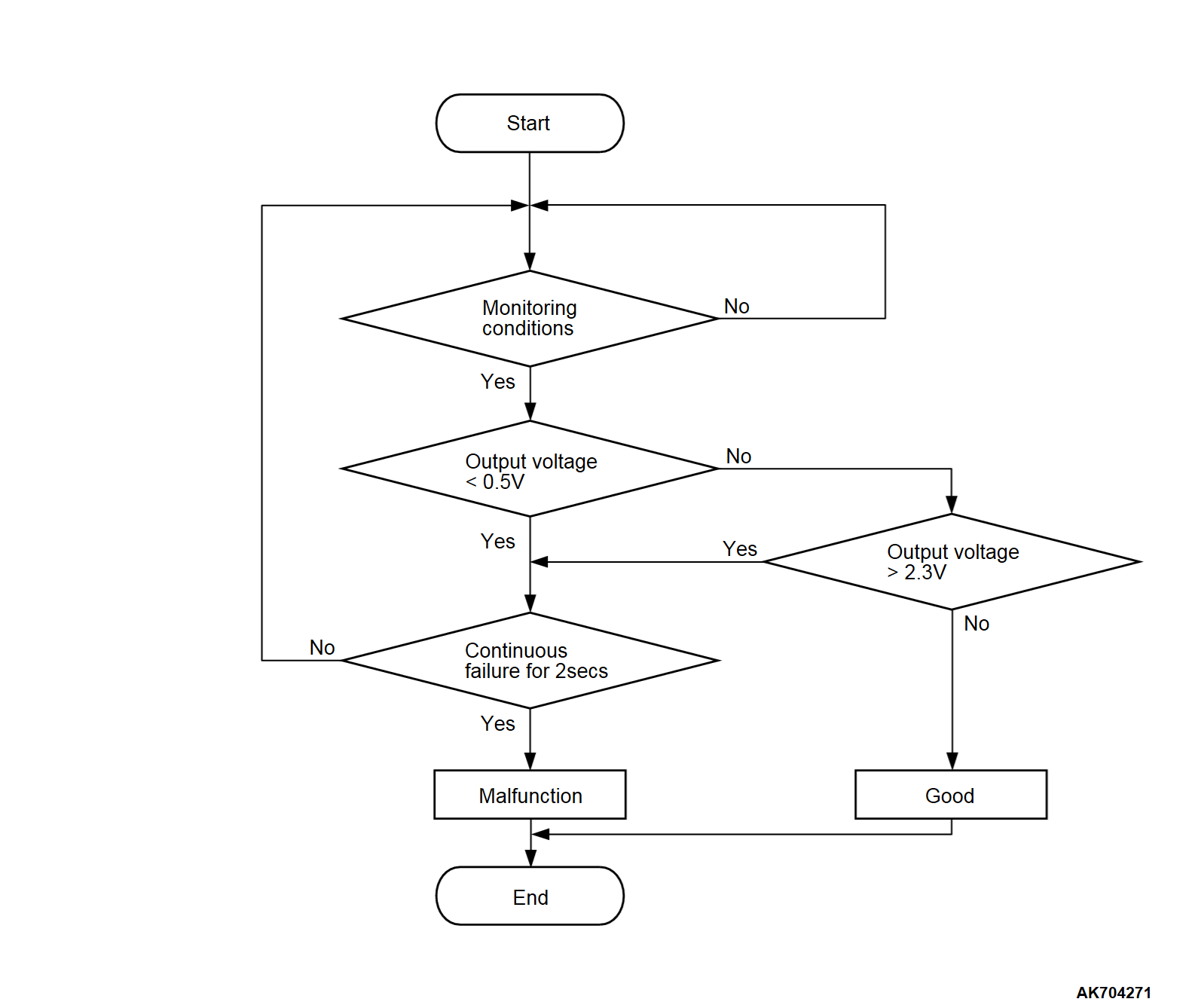

Logic Flow Chart


Check Condition
  • 2 seconds or more have passed since the engine starting sequence was completed.
Judgment Criterion
  • Left bank knock sensor output voltage has continued to be higher than 2.3 volts for 2 seconds.


FAIL-SAFE AND BACKUP FUNCTION
  • Fix the ignition timing with an allowance against knock.


FAIL-SAFE AND BACKUP FUNCTION
  • Fix the ignition timing with an allowance against knock.


OBD-II DRIVE CYCLE PATTERN
  • Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 22 .


TROUBLESHOOTING HINTS (The most likely causes for this code to be stored are: )
  • Shorted left bank knock sensor circuit or connector damage.
  • ECM failed.



DIAGNOSIS
STEP 1. Check of short circuit to power supply in K/S line between left bank knock sensor connector and ECM connector.
Is the harness wire in good condition?
Go to Step 2.
Repair the connector(s) or wiring harness. Then go to Step 2.

STEP 2. Check of short circuit to power supply in K/SE line between left bank knock sensor connector and ECM connector.
Is the harness wire in good condition?
Go to Step 3.
Repair the connector(s) or wiring harness. Then go to Step 4.

STEP 3. Check the trouble symptoms.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 22 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P0328 stored?
Replace the ECM (Refer to, Removal and Installation ). Then go to Step 4.
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions .

STEP 4. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 22 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P0328 stored?
Retry the troubleshooting.
The inspection is complete.
