DTC P0630: Vehicle Identification Number (VIN) Malfunction




TECHNICAL DESCRIPTION
  • The Vehicle Identification Number (VIN) is stored in the ECM by the vehicle manufacturer.


DESCRIPTIONS OF MONITOR METHODS
  • The ECM checks whether the VIN is being entered or not.


MONITOR EXECUTION
  • Continuous


MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
  • Not applicable
Sensor (The sensor below is determined to be normal)
  • Not applicable


DTC SET CONDITIONS

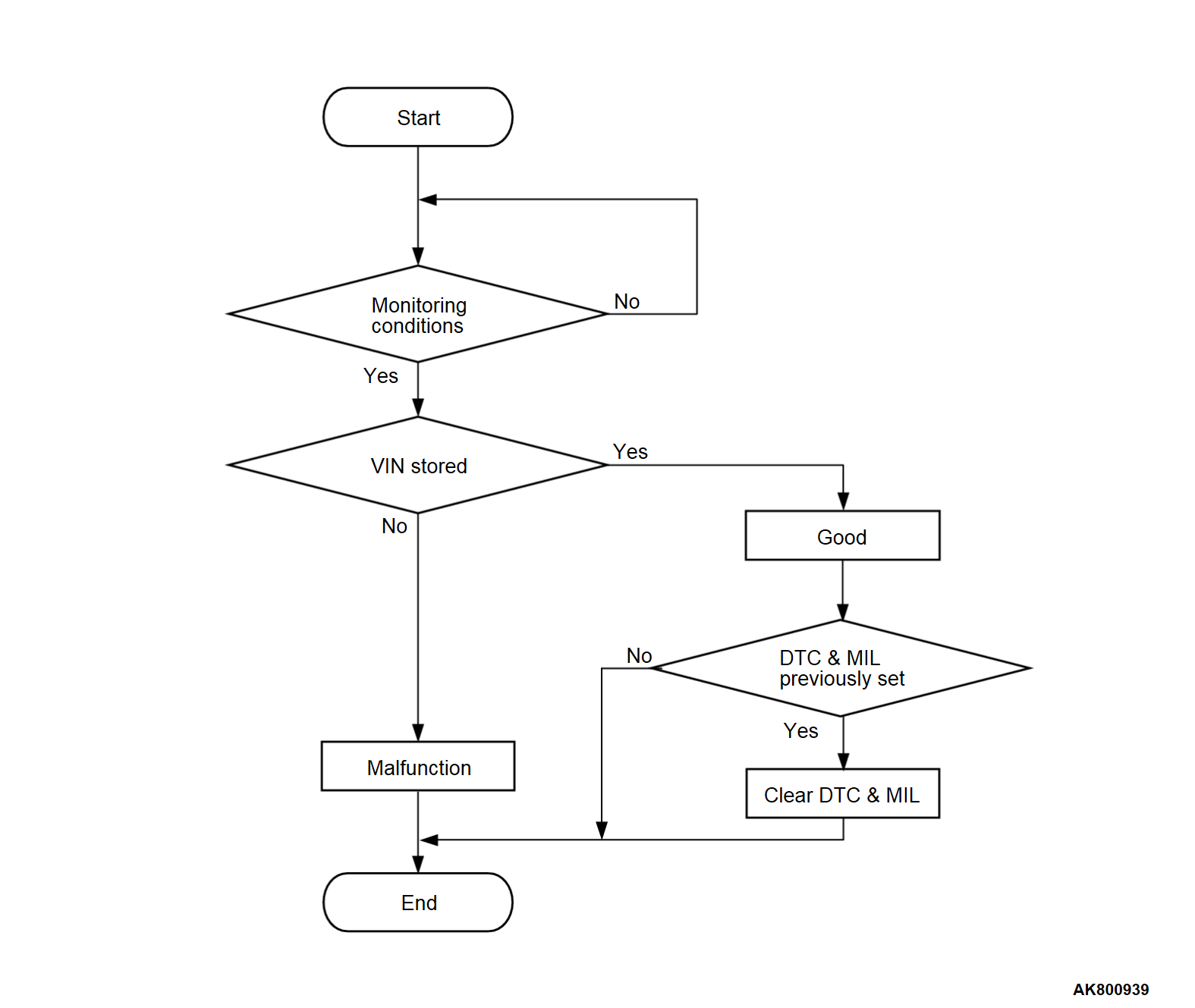

Logic Flow Chart
Check Conditions
  • Ignition switch is in "ON" position.
Judgment Criterion
  • VIN (current) has not been written.


FAIL-SAFE AND BACKUP FUNCTION
  • None


OBD-II DRIVE CYCLE PATTERN
  • None


TROUBLESHOOTING HINTS (The most likely causes for this code to be stored are: )
  • ECM failed.



DIAGNOSIS
Required Special Tools:
  • MB992744: Vehicle Communication Interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite Main Harness A
  • MB992747: V.C.I.-Lite USB Cable Short
  • MB992748: V.C.I.-Lite USB Cable Long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
STEP 1. Using scan tool (M.U.T.-III), check VIN Information.
cautionTo prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).
(1) Connect scan tool (M.U.T.-III). Refer to HOW TO CONNECT THE SCAN TOOL (M.U.T.-III) .
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool (M.U.T.-III) to the coding mode for VIN Information.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Has VIN (current) been written?
Go to Step 2.
Write VIN. Then go to Step 3.

STEP 2. Using scan tool (M.U.T.-III), read the diagnostic trouble code (DTC)
(1) Turn the ignition switch to the "ON" position.
(2) After the DTC has been deleted, read the DTC again.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Is DTC P0630 stored?
Replace the ECM (Refer to Removal and Installation ).
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions .

STEP 3. Using scan tool (M.U.T.-III), read the diagnostic trouble code (DTC)
(1) Turn the ignition switch to the "ON" position.
(2) After the DTC has been deleted, read the DTC again.
(3) Turn the ignition switch to the "LOOK" (OFF) position.
Is DTC P0630 stored?
Replace the ECM (Refer to Removal and Installation ).
The inspection is complete.
