DTC P0103: Mass Airflow Circuit High Input




CIRCUIT OPERATION
  • The mass airflow sensor power is supplied from the MFI relay, and the ground is provided on the ECM terminal AFSE.
  • Sensor reference voltage (5-volt voltage) is applied to the mass airflow sensor terminal from the ECM terminal AFS5.
  • A voltage that is according to the mass airflow rate is sent to the ECM terminal AFS from the mass airflow sensor output terminal.


TECHNICAL DESCRIPTION
  • While the engine is running, the mass airflow sensor outputs voltage which corresponds to the mass airflow rate.
  • The ECM checks whether the voltage output by the mass airflow sensor while the engine is running is within a specified range.


DESCRIPTIONS OF MONITOR METHODS
  • Mass airflow sensor output voltage is out of specified range.


MONITOR EXECUTION
  • Continuous


MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
  • Not applicable
Sensor (The sensor below is determined to be normal)
  • Not applicable


DTC SET CONDITIONS

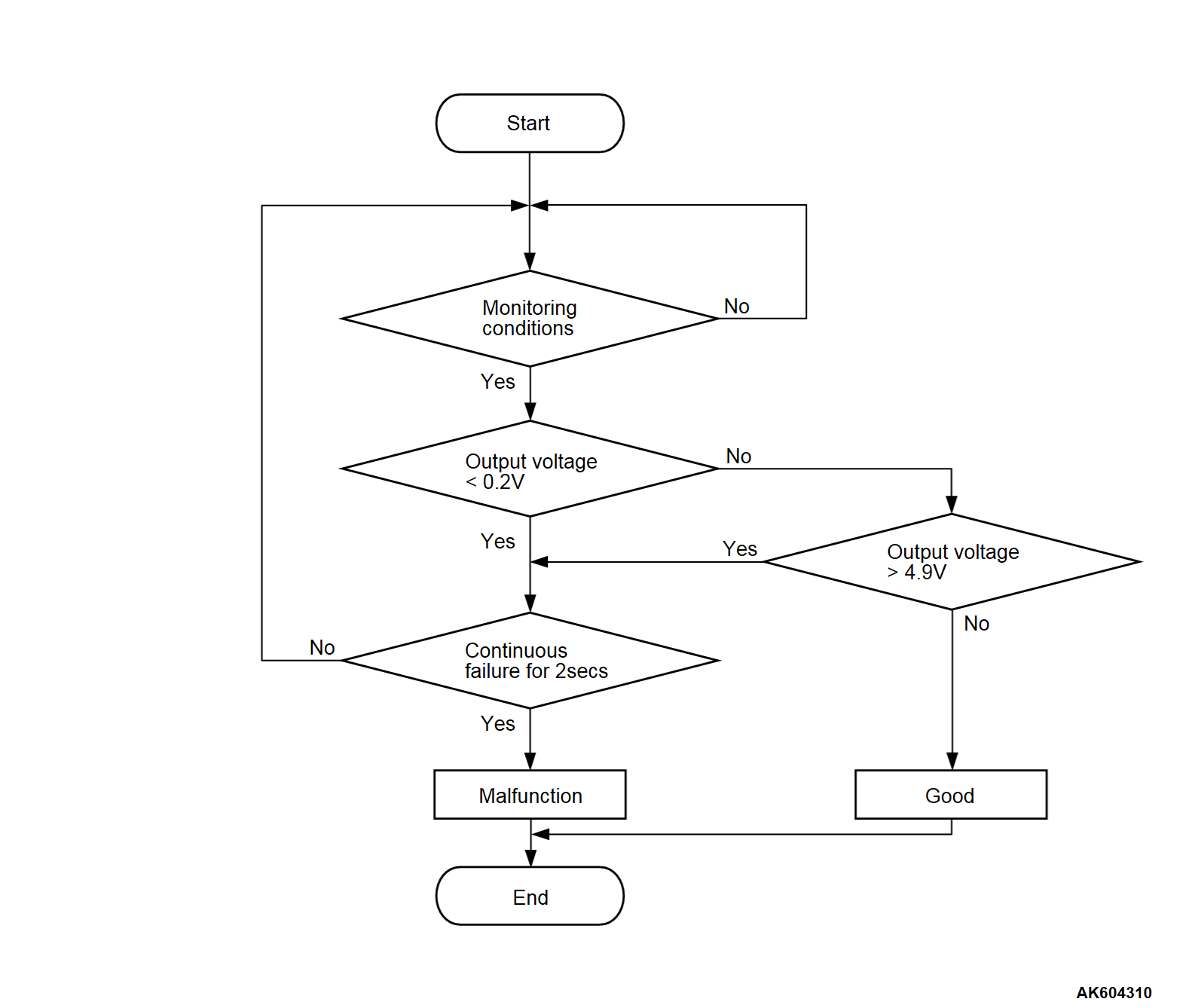

Logic Flow Chart
Check Condition
  • 3 seconds or more have passed since the ignition switch was turned to "ON" position.
Judgment Criterion
  • Mass airflow sensor output voltage has continued to be higher than 4.9 volts (corresponding to an air flow rate of 300 g/sec) for 2 seconds.


FAIL-SAFE AND BACKUP FUNCTION
  • Fuel control is carried out using throttle opening degree and engine speed in accordance with preset map.


OBD-II DRIVE CYCLE PATTERN
  • Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23 .


TROUBLESHOOTING HINTS (The most likely causes for this code to be stored are: )
  • Mass airflow sensor failed.
  • Open mass airflow sensor circuit, or connector damage.
  • ECM failed.



DIAGNOSIS
Required Special Tools:
  • MB992744: Vehicle Communication Interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite Main Harness A
  • MB992747: V.C.I.-Lite USB Cable Short
  • MB992748: V.C.I.-Lite USB Cable Long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
STEP 1. Using scan tool (M.U.T.-III), check data list item 10: Mass Airflow Sensor.
cautionTo prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).
(1) Connect scan tool (M.U.T.-III) to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool (M.U.T.-III) to the data reading mode for item 10, Mass Airflow Sensor.
(4) Warm up the engine to normal operating temperature: 80°C to 95°C (176°F to 203°F).
  • The standard value during idling should be between 700 and 1,100 millivolts.
  • When the engine is revved, the mass airflow rate should increase according to the increase in engine speed.
(5) Turn the ignition switch to the "LOCK" (OFF) position.
Is the sensor operating properly?
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions .
Go to Step 2.

STEP 2. Check the continuity at mass airflow sensor harness side connector.
(1) Disconnect the mass airflow sensor connector and measure at the harness side.
(2) Check for the continuity between terminal AFSE line and ground.
  • Continuity (2 ohms or less)
Does continuity exist?
Go to Step 5.
Go to Step 3.

STEP 3. Check of open circuit in AFSE line between mass airflow sensor connector and ECM connector.
Is the harness wire in good condition?
Go to Step 4.
Repair the connector(s) or wiring harness. Then go to Step 6.

STEP 4. Using scan tool (M.U.T.-III), check data list item 10: Mass Airflow Sensor.
(1) Start the engine and run at idle.
(2) Set scan tool (M.U.T.-III) to the data reading mode for item 10, Mass Airflow Sensor.
(3) Warm up the engine to normal operating temperature: 80°C to 95°C (176°F to 203°F).
  • The standard value during idling should be between 700 and 1,100 millivolts.
  • When the engine is revved, the mass airflow rate should increase according to the increase in engine speed.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the sensor operating properly?
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions .
Replace the ECM (Refer to Removal and Installation ). Then go to Step 6.

STEP 5. Replace the mass airflow sensor.
(1) Replace the mass airflow sensor.
(2) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 22 .
(3) Check the diagnostic trouble code (DTC).
Is DTC P0103 stored?
Replace the ECM (Refer to, Removal and Installation ). Then go to Step 6.
The inspection is complete.

STEP 6. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 23 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P0103 stored?
Retry the troubleshooting.
The inspection is complete.
