DTC P0507: Idle Control System RPM Higher Than Expected




TECHNICAL DESCRIPTION
  • The amount of air taken in during idling is regulated by the opening and closing of the throttle valve.
  • The ECM checks the difference between the actual engine speed and the target engine speed.


DESCRIPTIONS OF MONITOR METHODS
Difference between actual and target idle speed is over the specified value.


MONITOR EXECUTION
  • Continuous


MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC set in memory for the item monitored below)
  • Misfire monitor
  • Exhaust gas recirculation (EGR) system monitor
  • Fuel system monitor
Sensor (The sensor below is determined to be normal)
  • Mass airflow sensor
  • Engine coolant temperature sensor
  • Intake air temperature sensor
  • Barometric pressure sensor
  • Throttle position sensor



DTC SET CONDITIONS

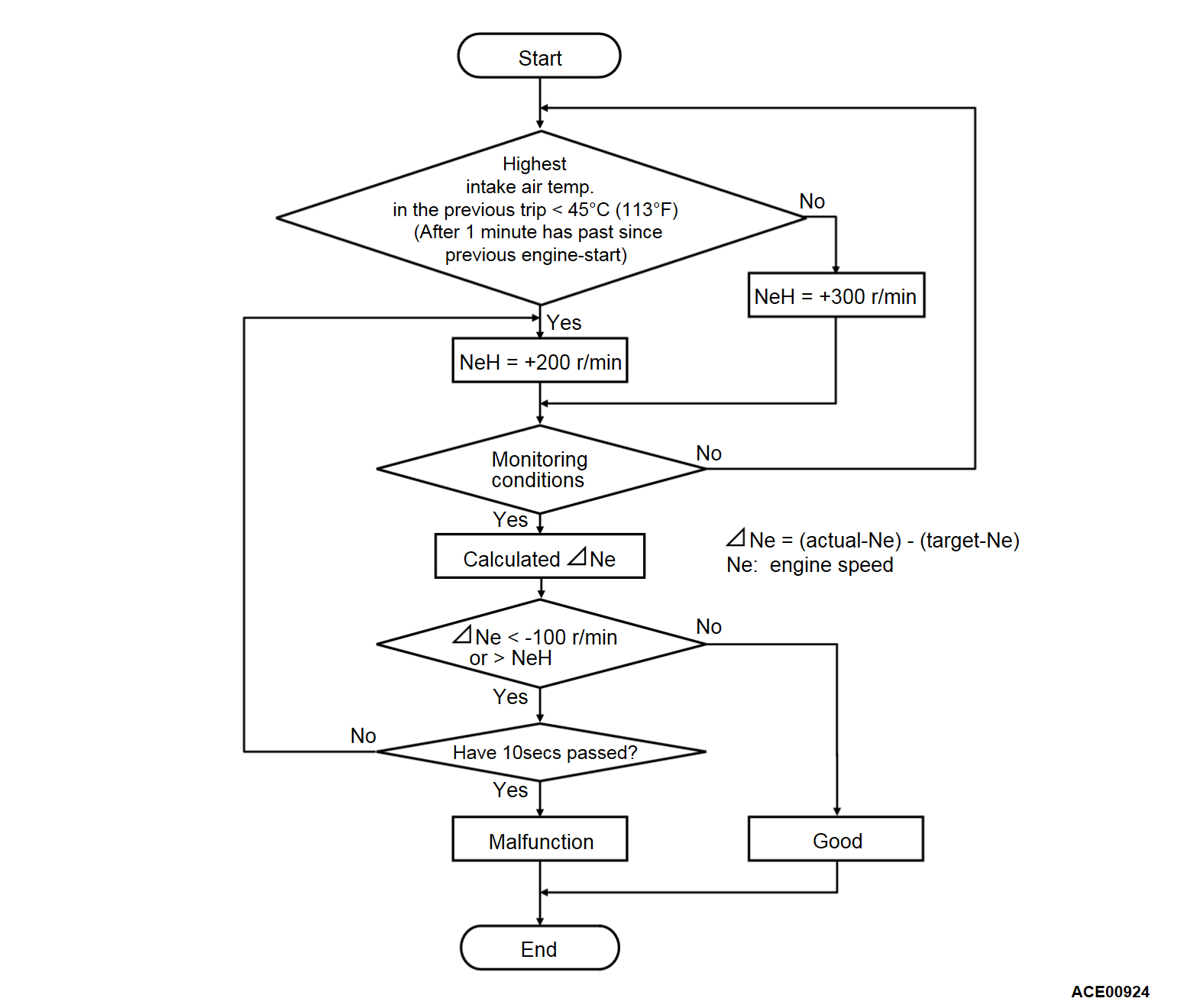

Logic Flow Chart


Check Conditions
  • Under the closed loop idle speed control.
  • Engine coolant temperature is higher than 41°C (105°F).
  • Battery positive voltage is higher than 10 volts.
  • Barometric pressure is higher than 76 kPa (22.4 in.Hg).
  • Intake air temperature is higher than -10°C (14°F).
  • 3 seconds have elapsed from the start of the previous monitoring.
  • Target air flow rate is 0 g/sec (0 L/sec).
Judgment Criterion
  • Actual idle speed has continued to be higher than the target idle speed by 200 r/min (300 r/min*) or more for 10 seconds.
    • *: Specs in parentheses are applicable if the maximum air temperature during the previous operation was more than 45°C (113°F).


FAIL-SAFE AND BACKUP FUNCTION
  • None


OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 18 .


TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
  • Intake system vacuum leak.
  • Throttle body assembly failed.
  • ECM failed.



DIAGNOSIS
Required Special Tools:
  • MB992744: Vehicle Communication Interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite Main Harness A
  • MB992747: V.C.I.-Lite USB Cable Short
  • MB992748: V.C.I.-Lite USB Cable Long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
STEP 1. Using scan tool (M.U.T.-III), read the diagnostic trouble code (DTC).
cautionTo prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).
(1) Connect scan tool (M.U.T.-III). Refer to HOW TO CONNECT THE SCAN TOOL (M.U.T.-III) .
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the diagnostic trouble code other than P0507 set?
Refer to Diagnostic Trouble Code Chart .
Go to Step 2.

STEP 2. Check the intake system vacuum leak.
Are there any abnormalities?
Repair or replace it. Then go to Step 4.
Go to Step 3.

STEP 3. Replace the throttle body assembly.
(1) Replace the throttle body assembly
(2) Carry out test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 18 .
(3) Check the diagnostic trouble code (DTC).
Is DTC P0507 set?
Replace the ECM (Refer to Removal and Installation ). Then go to Step 4.
The inspection is complete.

STEP 4. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 18 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P0507 set?
Retry the troubleshooting.
The inspection is complete.
