DTC P0108: Manifold Absolute Pressure Circuit High Input




CIRCUIT OPERATION
  • A 5-volt voltage is supplied to the manifold absolute pressure sensor power terminal from ECM terminal MAP5. The ground terminal is grounded with ECM terminal MAPE.
  • A voltage that is proportional to the intake manifold pressure is sent to the ECM terminal MAP from the manifold absolute pressure sensor output terminal.


TECHNICAL DESCRIPTION
  • The manifold absolute pressure sensor outputs a voltage which corresponds to the intake manifold pressure.
  • The ECM checks whether this voltage is within a specified range.


DESCRIPTIONS OF MONITOR METHODS
  • Manifold absolute pressure sensor output voltage is out of specified range.


MONITOR EXECUTION
  • Continuous


MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC set in memory for the item monitored below)
  • Not applicable
Sensor (The sensor below is determined to be normal)
  • Engine coolant temperature sensor
  • Throttle position sensor
  • Mass airflow sensor
  • Intake air temperature sensor
  • Barometric pressure sensor


DTC SET CONDITIONS Range/Performance problem - low input

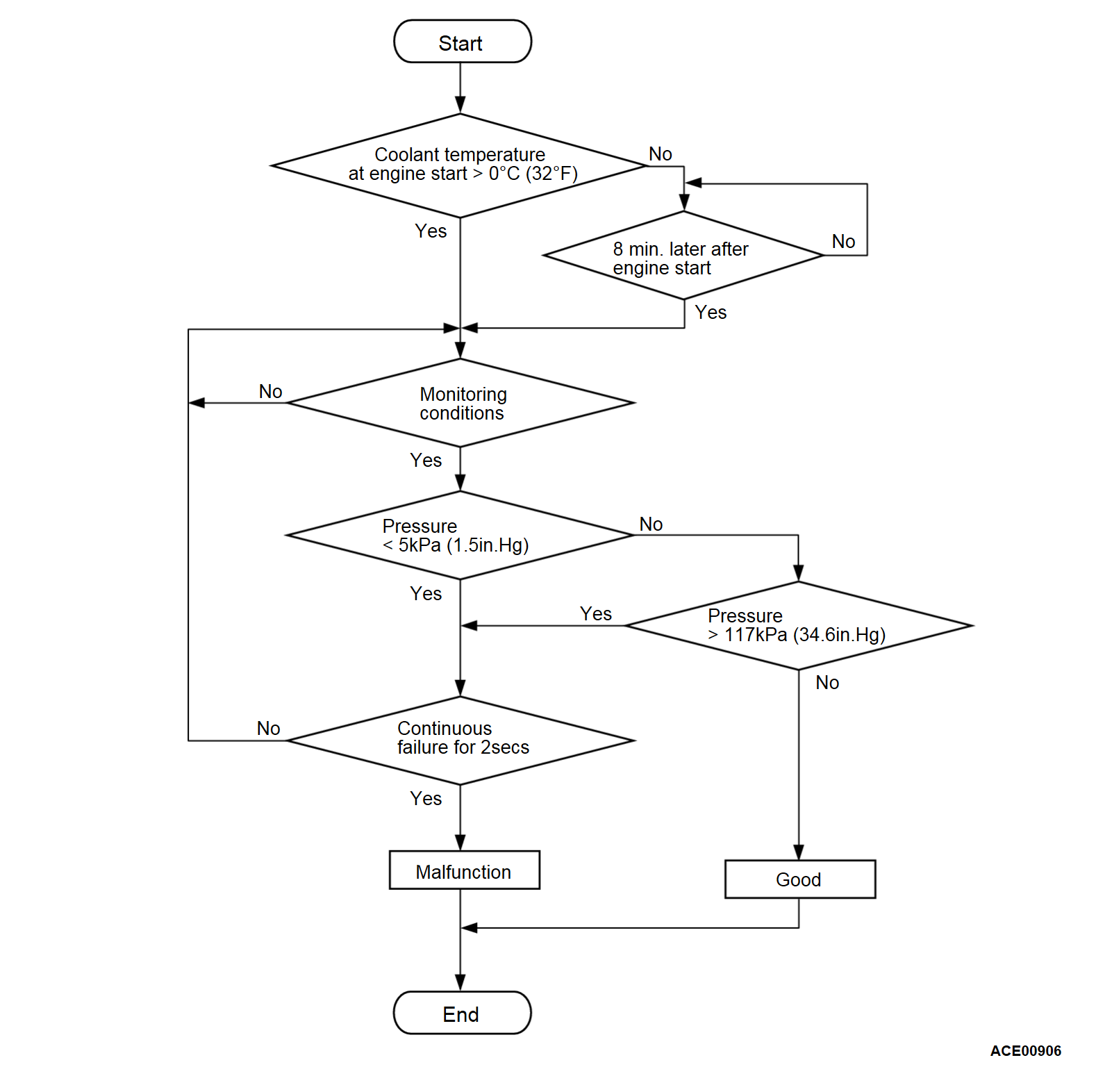

Logic Flow Chart


Check Conditions
  • 8 minutes or more have passed since the engine starting sequence was completed, when the engine coolant temperature at engine start is 0°C (32°F) or lower.
Judgment Criterion
  • Manifold absolute pressure is 117 kPa (34.6 in.Hg) or higher for 2 seconds.


FAIL-SAFE AND BACKUP FUNCTION
  • Control as if the inlet manifold vacuum pressure is 101 kPa.


OBD-II DRIVE CYCLE PATTERN
  • Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 22 .


TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
  • Manifold absolute pressure sensor failed.
  • Connector damage
  • Harness damage
  • ECM failed.



DIAGNOSIS
Required Special Tools:
  • MB992744: Vehicle Communication Interface-Lite (V.C.I.-Lite)
  • MB992745: V.C.I.-Lite Main Harness A
  • MB992747: V.C.I.-Lite USB Cable Short
  • MB992748: V.C.I.-Lite USB Cable Long
  • MB991958: Scan Tool (M.U.T.-III Sub Assembly)
    • MB991824: Vehicles Communication Interface (V.C.I.)
    • MB991827: M.U.T.-III USB Cable
    • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
STEP 1. Using scan tool (M.U.T.-III), check data list item 8: Manifold Absolute Pressure Sensor.
cautionTo prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).
(1) Connect scan tool (M.U.T.-III). Refer to HOW TO CONNECT THE SCAN TOOL (M.U.T.-III) .
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool (M.U.T.-III) to the data reading mode for item 8, Manifold Absolute Pressure Sensor.
  • When altitude is 0 m (0 foot), 101 kPa (29.8 in.Hg).
  • When altitude is 600 m (1,969 feet), 95 kPa (28.1 in.Hg).
  • When altitude is 1,200 m (3,937 feet), 88 kPa (26.0 in.Hg).
  • When altitude is 1,800 m (5,906 feet), 81 kPa (23.9 in.Hg).
(4) Start the engine.
  • When the engine is idling, 16 - 36 kPa (4.7 - 10.6 in.Hg).
  • When the engine is suddenly revved, manifold absolute pressure varies.
(5) Turn the ignition switch to the "LOCK" (OFF) position.
Is the sensor operating properly?
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions .
Go to Step 2.

STEP 2. Measure the ground voltage at manifold absolute pressure sensor connector by backprobing.
(1) Do not disconnect the connector.
(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal MAPE line and ground by backprobing.
  • Voltage should be 0.5 volt or less.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the measured voltage 0.5 volt or less?
Go to Step 5.
Go to Step 3.

STEP 3. Check of open circuit in MAPE line between manifold absolute pressure sensor connector and ECM connector.
Is the harness wire in good condition?
Go to Step 4.
Repair the connector(s) or wiring harness. Then go to Step 6.

STEP 4. Using scan tool (M.U.T.-III), check data list item 8: Manifold Absolute Pressure Sensor.
(1) Turn the ignition switch to the "ON" position.
(2) Set scan tool (M.U.T.-III) to the data reading mode for item 8, Manifold Absolute Pressure Sensor.
  • When altitude is 0 m (0 foot), 101 kPa (29.8 in.Hg).
  • When altitude is 600 m (1,969 feet), 95 kPa (28.1 in.Hg).
  • When altitude is 1,200 m (3,937 feet), 88 kPa (26.0 in.Hg).
  • When altitude is 1,800 m (5,906 feet), 81 kPa (23.9 in.Hg).
(3) Start the engine.
  • When the engine is idling, 16 - 36 kPa (4.7 - 10.6 in.Hg).
  • When the engine is suddenly revved, manifold absolute pressure varies.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Is the sensor operating properly?
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions .
Replace the ECM (Refer to Removal and Installation ). Then go to Step 6.

STEP 5. Replace the manifold absolute pressure sensor.
(1) Replace the manifold absolute pressure sensor.
(2) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 22 .
(3) Check the diagnostic trouble code (DTC).
Is DTC P0108 set?
Replace the ECM (Refer to Removal and Installation ). Then go to Step 6.
The inspection is complete.

STEP 6. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 22 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P0108 set?
Retry the troubleshooting.
The inspection is complete.
