DTC P0053: Linear Air-Fuel Ratio Sensor Heater Resistance (bank 1, sensor 1)




CIRCUIT OPERATION
  • Power is supplied from the MFI relay to the right bank linear air-fuel ratio sensor heater.
  • The ECM terminal LHFR controls continuity to the right bank linear air-fuel ratio sensor heater by turning the power transistor in the ECM "ON" and "OFF".


TECHNICAL DESCRIPTION
  • The ECM checks whether the heater current is within a specified range when the heater is energized.


DESCRIPTIONS OF MONITOR METHODS
  • Right bank linear air-fuel Ratio Sensor heater current is out of specified range.


MONITOR EXECUTION
  • Continuous


MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC set in memory for the item monitored below)
  • Not applicable
Sensor (The sensor below is determined to be normal)
  • Not applicable


DTC SET CONDITIONS

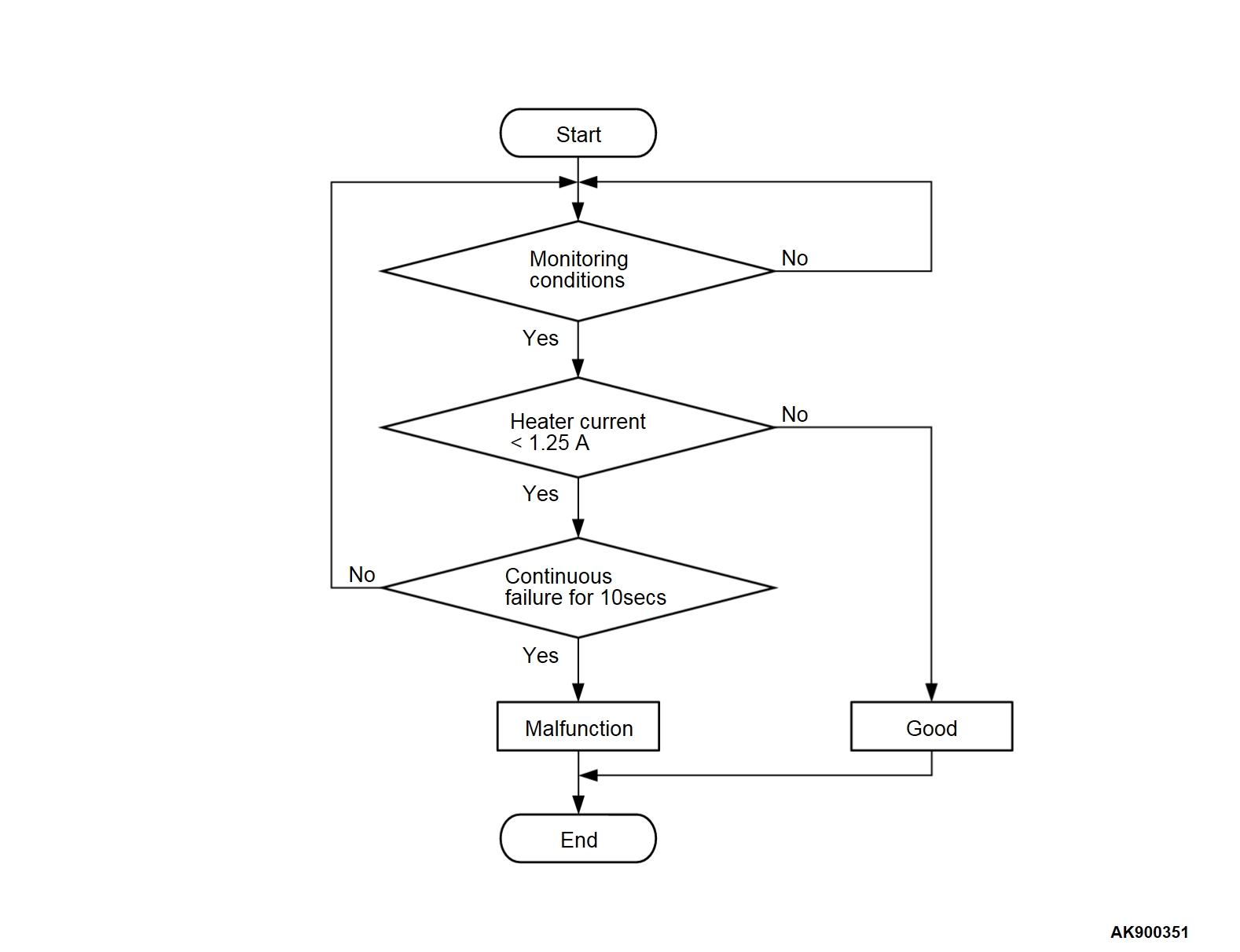

Logic Flow Chart


Check Conditions
  • More than 245 seconds have passed since the engine starting sequence was completed.
  • While the right bank linear air-fuel ratio sensor heater is on.
  • Battery positive voltage is between 11 and 16.5 volts.
  • Intake air temperature is more than -10°C (14°F).
  • On duty cycle of the right bank linear air-fuel ratio sensor heater is between 3 and 97 percent.
Judgment Criterion
  • The right bank linear air-fuel ratio sensor heater current has continued to be lower than average 1.25 ampere for 10 seconds.


FAIL-SAFE AND BACKUP FUNCTION
  • None


OBD-II DRIVE CYCLE PATTERN
  • Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 3 .


TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
  • Right bank linear air-fuel Ratio Sensor circuit harness damage or connector damage.
  • Right bank linear air-fuel Ratio Sensor heater failed.
  • ECM failed.



DIAGNOSIS
STEP 1. Check the right bank linear air-fuel ratio sensor.
(1) Disconnect the right bank linear air-fuel ratio sensor connector.
(2) Measure the resistance between right bank linear air-fuel ratio sensor connector power supply line and terminal LHFR.
Standard value: 2.3 - 4.2 ohms [at 20°C (68°F)]
Is the measured resistance between 2.3 and 4.2 ohms [at 20°C (68°F)]?
Go to Step 2.
Replace the right bank linear air-fuel ratio sensor. Then go to Step 5.

STEP 2. Check of harness damage in power supply line between MFI relay connector and right bank linear air-fuel ratio sensor connector.
Is the harness wire in good condition?
Go to Step 3.
Repair the connector(s) or wiring harness. Then go to Step 5.

STEP 3. Check of harness damage in LHFR line between right bank linear air-fuel ratio sensor connector and ECM connector 34.
Is the harness wire in good condition?
Go to Step 4.
Repair the connector(s) or wiring harness. Then go to Step 5.

STEP 4. Check the trouble symptoms.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 3 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P0053 set?
Replace the ECM (Refer to Removal and Installation ). Then go to Step 5.
It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions .

STEP 5. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 3 .
(2) Check the diagnostic trouble code (DTC).
Is DTC P0053 set?
Retry the troubleshooting.
The inspection is complete.
