REMOVAL AND INSTALLATION


Pre-removal operation
  • Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Removal (Refer to GROUP 51 - Under Cover ).
  • Engine Oil Draining (Refer to GROUP 12 - On-vehicle Service, Engine Oil Replacement ).
  • Drive Belt Removal (Refer to ).
Post-installation operation
  • Drive Belt Installation (Refer to ).
  • Engine Oil Refilling (Refer to GROUP 12 - On-vehicle Service, Engine Oil Replacement ).
  • Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Installation (Refer to GROUP 51 - Under Cover ).

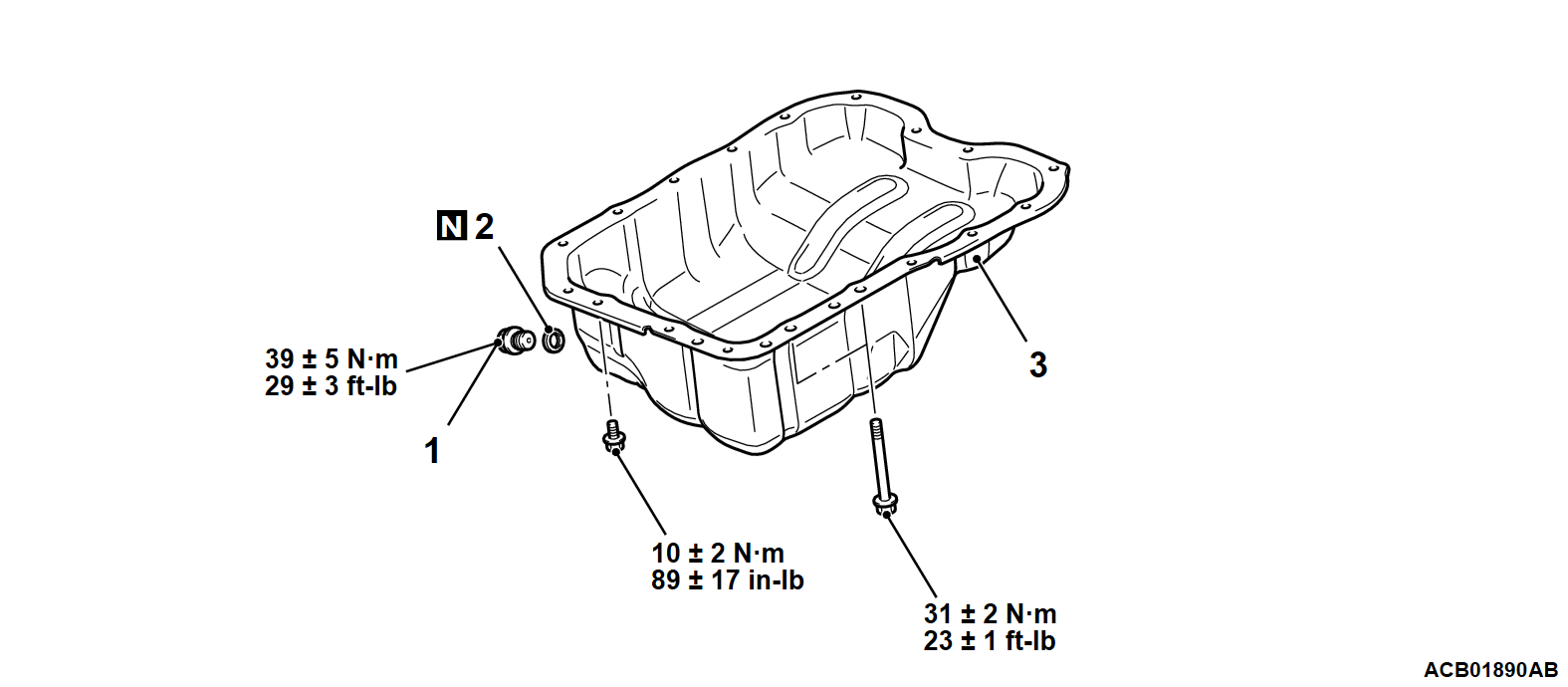

Removal steps
<<A>>•A/C compressor and clutch assembly (Refer to GROUP 55 - Compressor Assembly ).
•A/C compressor bracket (Refer to GROUP 55 - Compressor Assembly ).
1.Engine oil pan drain plug
2.Engine oil pan drain plug gasket
<<B>>>>A<<3.Engine oil pan

Required Special Tool:
  • MD998727: Oil Pan FIPG Cutter


REMOVAL SERVICE POINTS


<<A>> A/C COMPRESSOR AND CLUTCH ASSEMBLY REMOVAL
1. Remove the A/C compressor and clutch assembly together with the hose from the bracket.
2. Tie the removed A/C compressor and clutch assembly with a string at a position where they will not interfere with the removal and installation of engine oil pan.



<<B>> ENGINE OIL PAN REMOVAL
1. Remove the engine oil pan mounting bolts.
2.
cautionDo not forcibly drive in special tool oil pan FIPG cutter (MD998727) to avoid damage to the engine oil pan seal surface of cylinder block assembly.

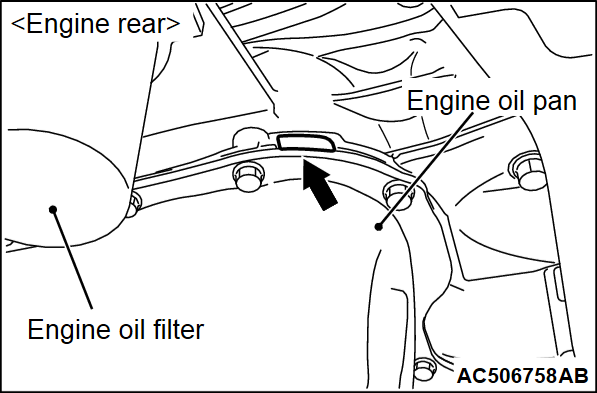

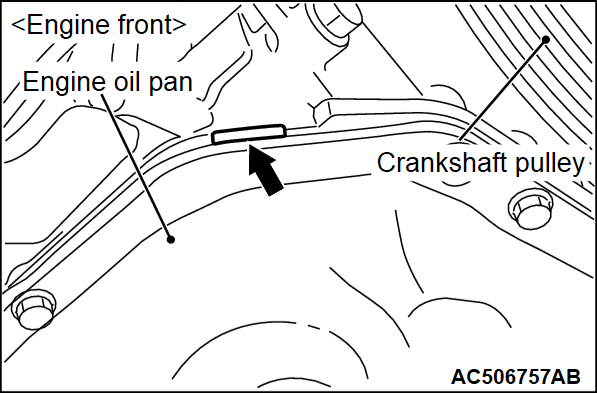

Insert special tool oil pan FIPG cutter (MD998727) from the engine oil pan removal groove of the cylinder block assembly.

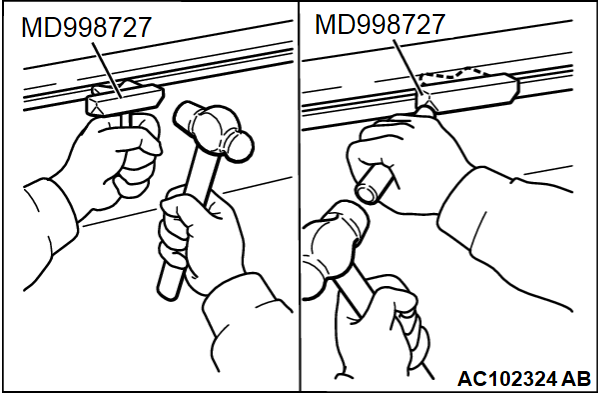

3. Lightly tap the special tool with a hammer to slide the engine oil pan seal surface, cut off the liquid gasket, and remove the engine oil pan.




INSTALLATION SERVICE POINT


>>A<< ENGINE OIL PAN INSTALLATION
1. Remove all the traces of sealant adhering to the engine oil pan and cylinder block assembly using a remover or others. Then, degrease them.

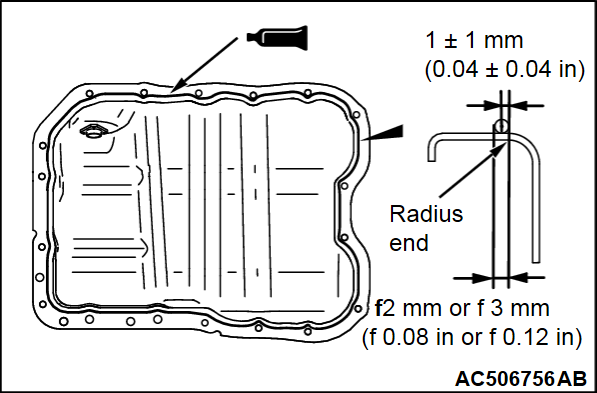

2. Apply the sealant without any gap to the mating surface of engine oil pan as shown in the figure, and install the engine oil pan to the cylinder block assembly.
Specified sealant: ThreeBond 1217G or equivalent
noteInstall the engine oil pan immediately after applying sealant.
3.
cautionAfter the installation, until a sufficient period of time (one hour or more) elapses, do not apply the engine oil or water to the sealant application area or start the engine.
Tighten the engine oil pan mounting bolts to the specified torque.
Tightening torque:
  • M6: 10 ± 2 N·m (89 ± 17 in-lb)
  • M8: 31 ± 2 N·m (23 ± 1 ft-lb)
