Front combination light Removal and Installation (Refer to Front combination light Removal and Installation)

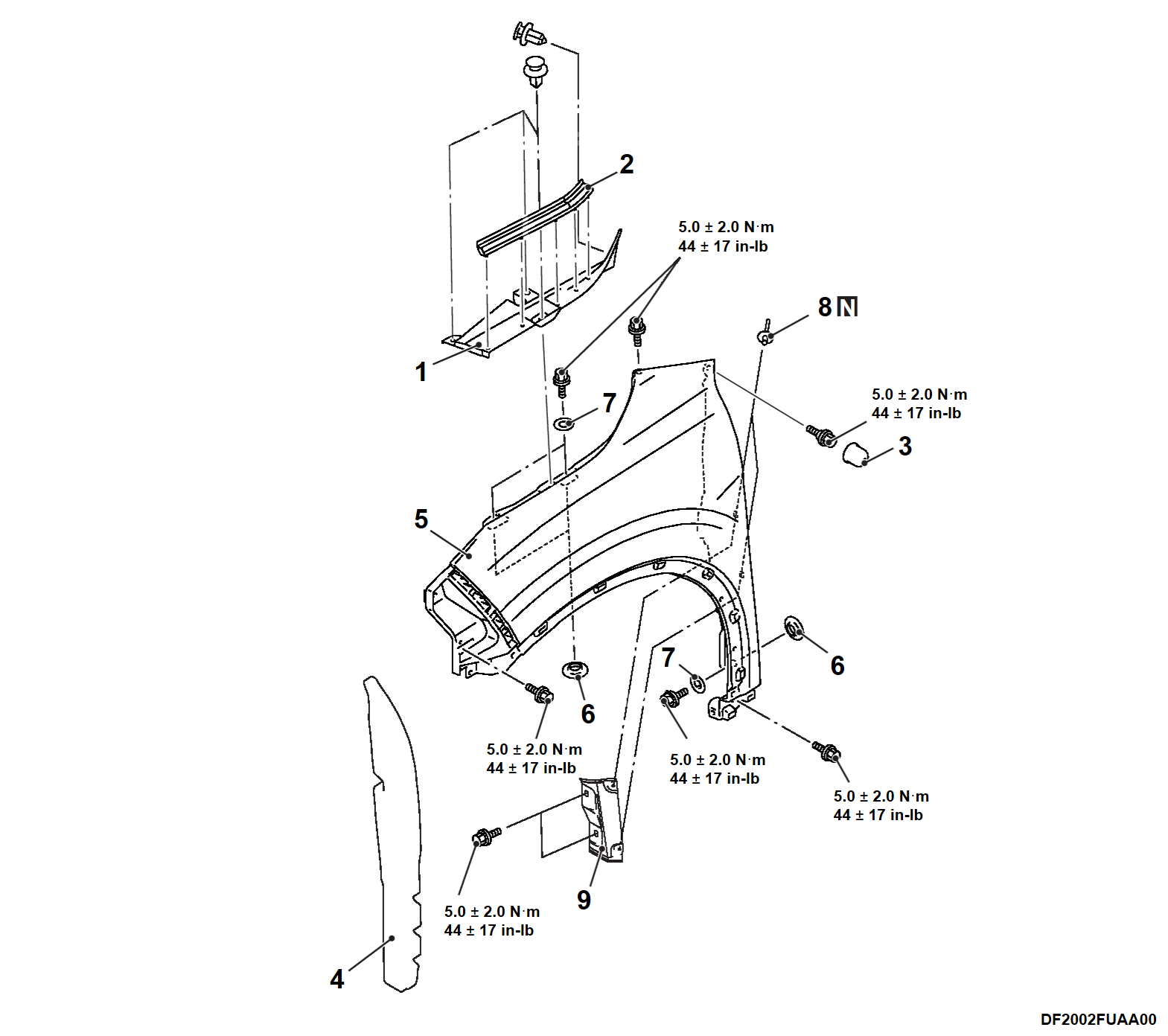

Removal steps
1.
Front fender inner garnish
2.
Hood rear side weatherstrip
3.
Front fender lid holder
4.
Front fender pad
5.
Front fender
6.
Front fender collar
7.
Front fender washer
8.
Rivets
9.
Reinforcement
REMOVAL SERVICE POINT
<<A>> RIVETS REMOVAL

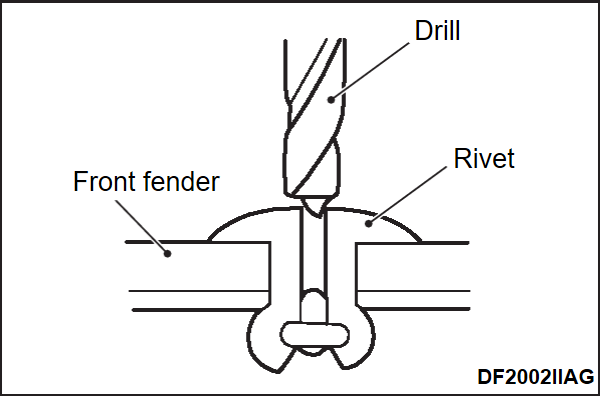

Use a drill [Φ 4.0 mm (0.16 inch)] to make a hole in the rivet to break it, and remove the rivet.
INSTALLATION SERVICE POINT
>>A<< RIVETS INSTALLATION

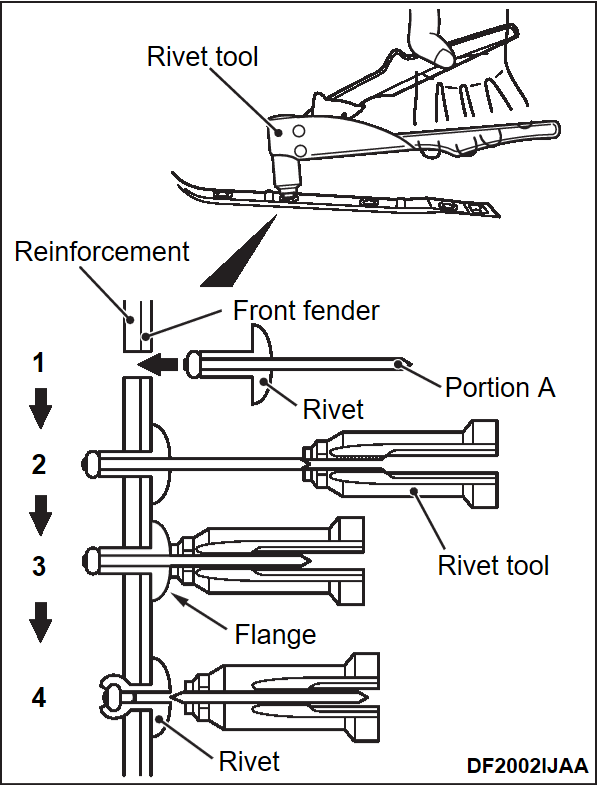

Use a rivet tool shown as in the illustration to connect the parts with rivets by the following procedures:
1. Insert the rivet into a corresponding location.
2. Set the rivet tool at a portion A of rivet.
3. While pushing the flange surface of the rivet onto parts to be fixed with the rivet tool, press the handle of the tool.
4. Thin part of portion A of the rivet will be cut off and the part is fixed in position.
>>B<< FRONT FENDER WASHER / FRONT FENDER COLLAR INSTALLATION

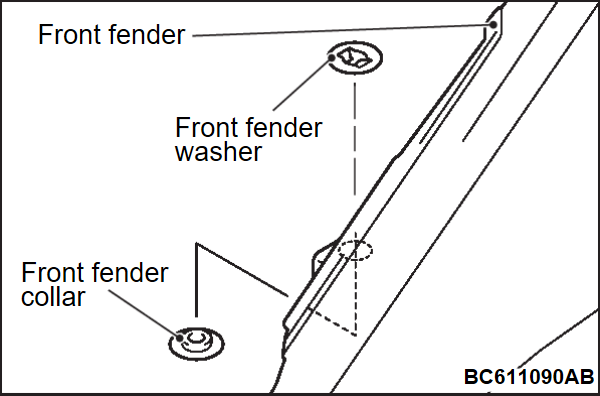

Fit the front fender collar to the front fender, and install the front fender washer to the front fender.
>>C<< FRONT FENDER INSTALLATION

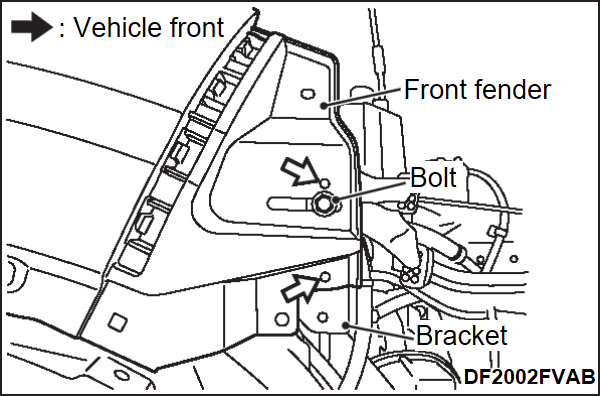

1. Install the front fender, and match the 2 front fender holes and the 2 bracket holes which are positioned on the front end. Then, tightening the mounting bolt.

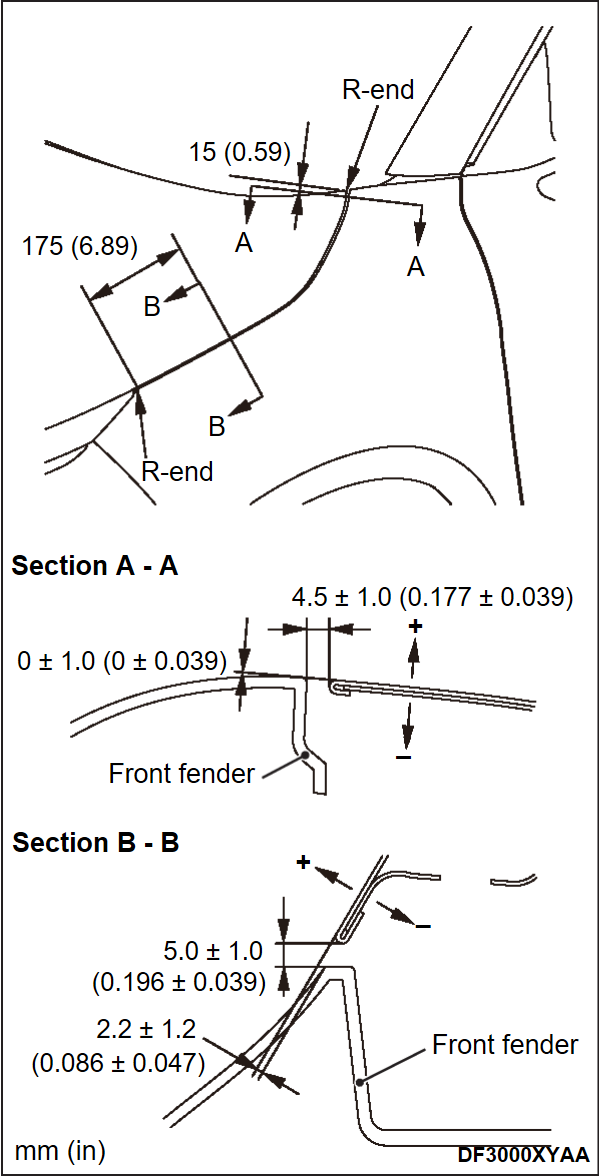

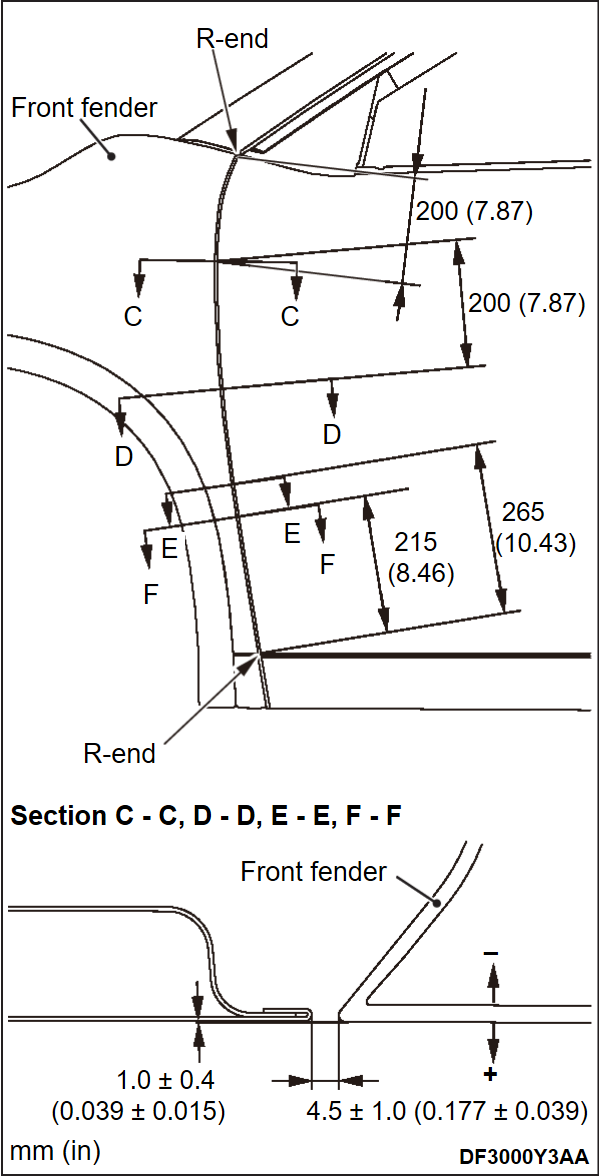

2. Install the front fender so that the gap between the hood and the front fender, and the front door and the front fender fit within the specified value shown in the illustration.
