Component Description
EXPLANATIONS OF COMPONENT PARTS
Component Function Within The System
—
Individual Component Function
8CH CAN gateway transmits CAN signals from each network.

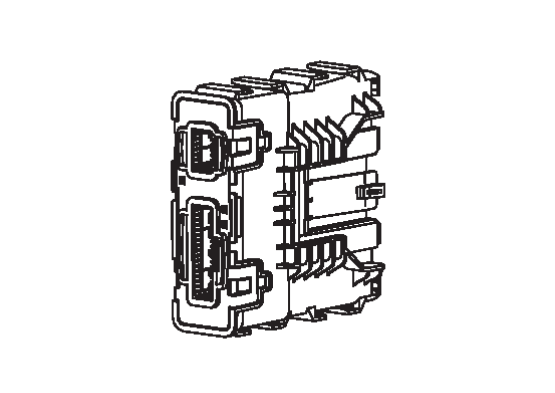

Without ethernet harness connector

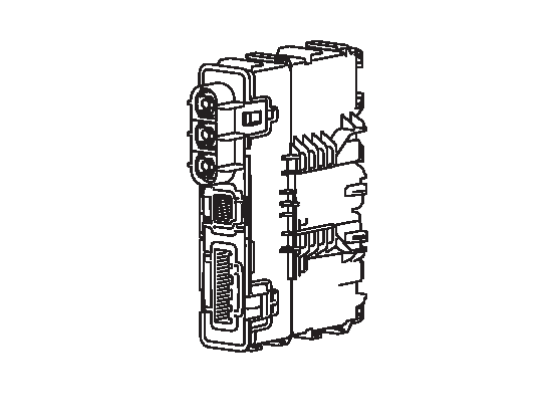

With ethernet harness connector
Component Operation
Refer to
System Description
.
Component Parts Location
8CH CAN gateway is installed at behind the instrument panel. Refer to
Component Parts Location
.
