PURPOSE

This bulletin provides directions for inspection of continuously variable transmission (CVT) fluid hose clamps.

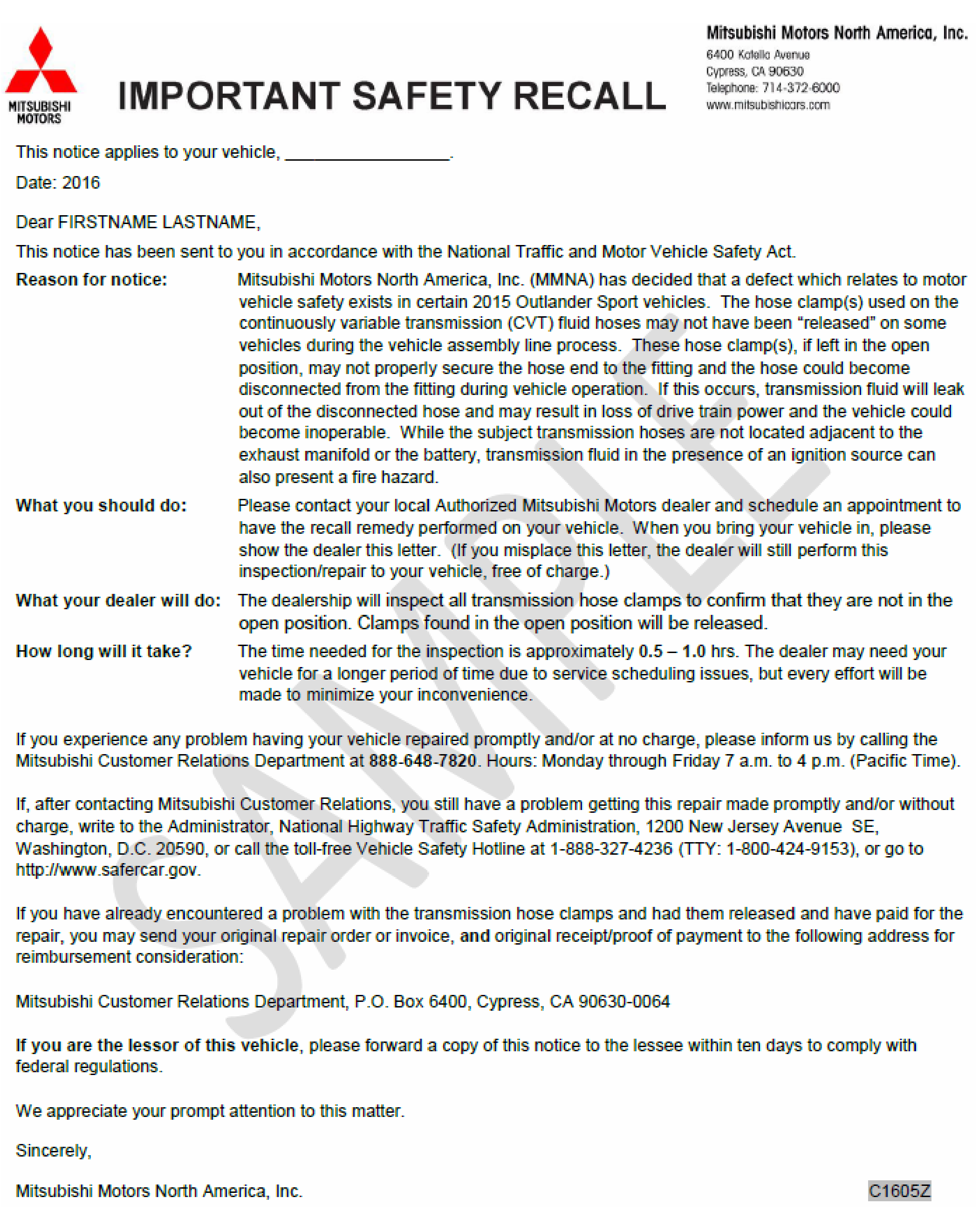

BACKGROUND

The hose clamp(s) used on the CVT fluid hoses may not have been “released” on some vehicles during the vehicle assembly line process. These hose clamp(s), if left in the open position, may not properly secure the hose end to the fitting and the hose could become disconnected from the fitting during vehicle operation. If this occurs, transmission fluid will leak out of the disconnected hose and the transmission will not function properly. While the subject transmission hoses are not located adjacent to the exhaust manifold or the battery, transmission fluid in the presence of an ignition source can also present a fire hazard.

AFFECTED VEHICLES

2015 Outlander Sport / RVR with a 2.0L engine and CVT.

REQUIRED EQUIPMENT

• Trim Removal Tool
• Pliers

INSPECTION PROCEDURE

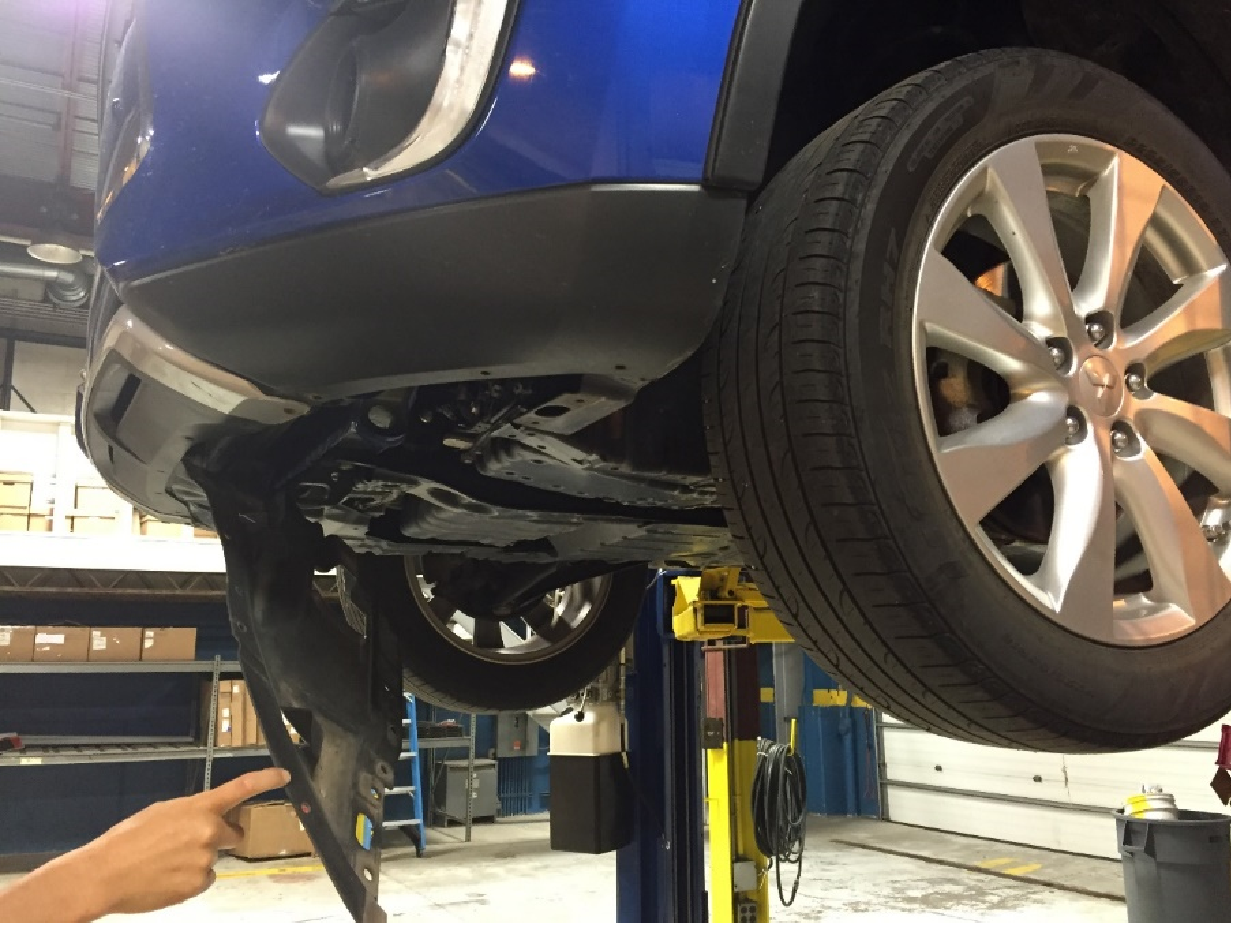

1. Raise the vehicle and partially remove the engine under cover to allow inspection of the hose clamps at the left front corner of the vehicle.

NOTE: Refer to Group 51 of the service manual for detailed instructions.

2. Inspect the hose clamps at the locations illustrated.
1. For CVT with an External Oil Cooler, inspect (10) hose clamps.
2. For CVT without an External Oil Cooler, inspect (6) hose clamps.

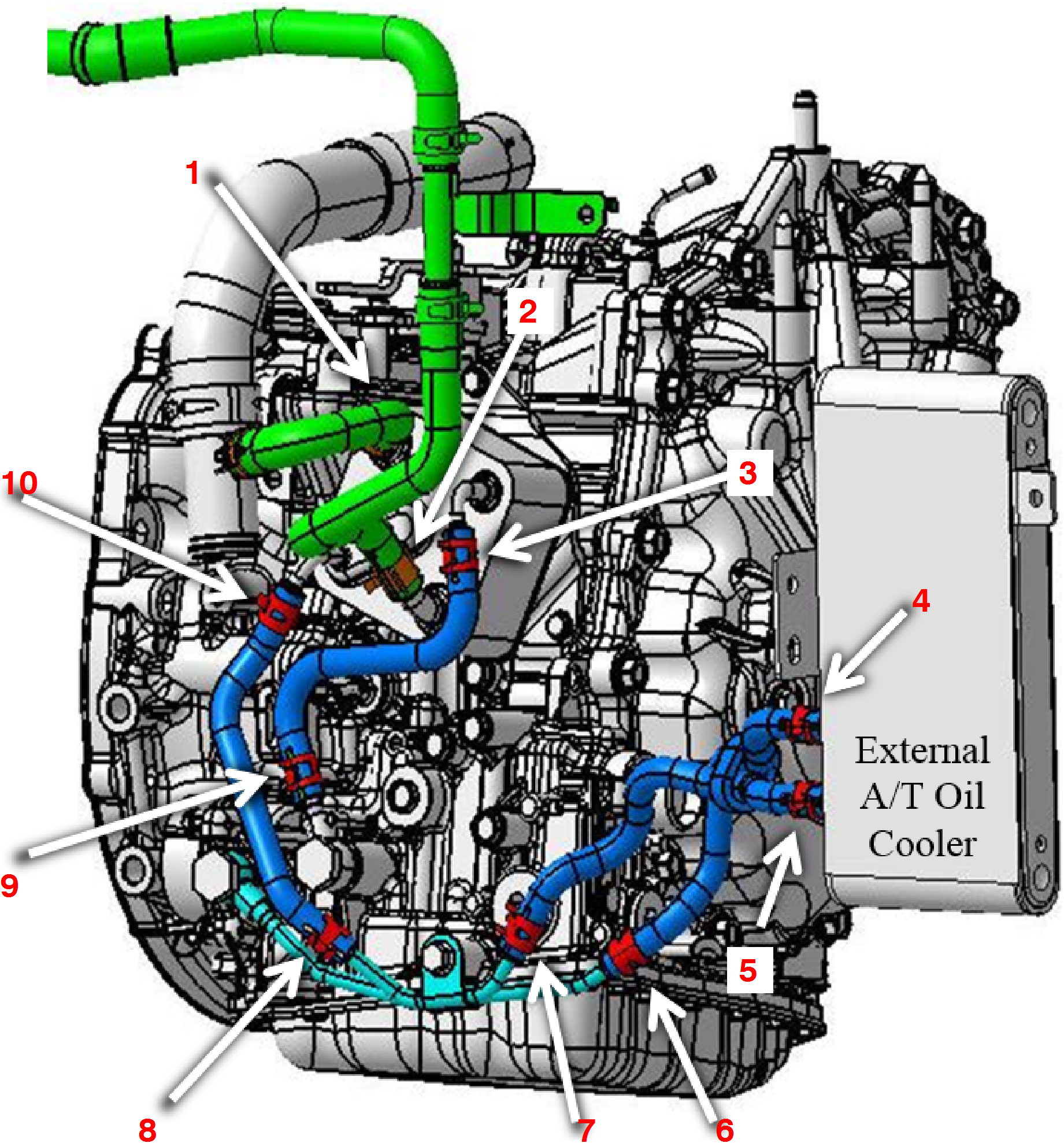

CVT with External Oil Cooler

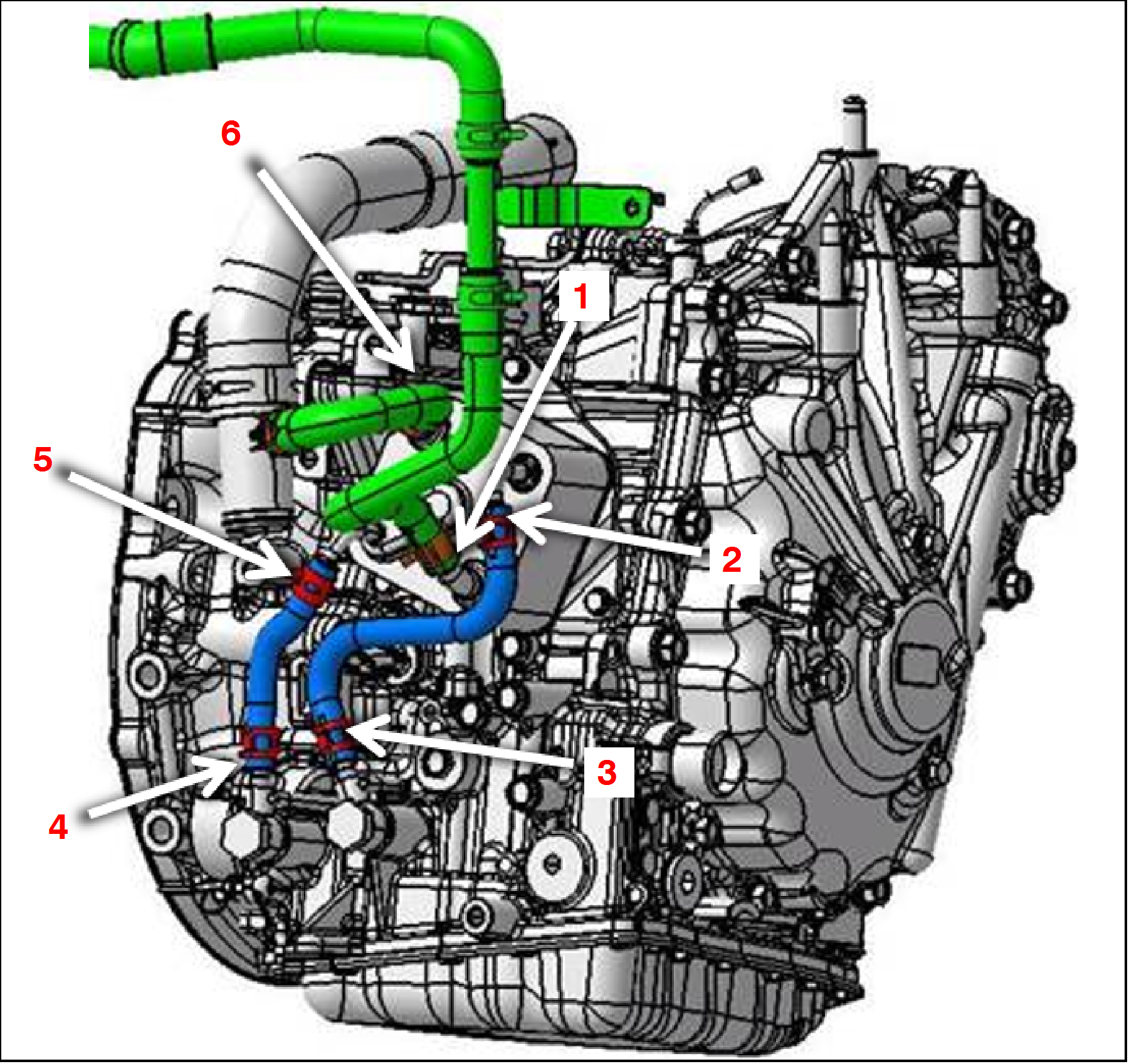

CVT without External Oil Cooler

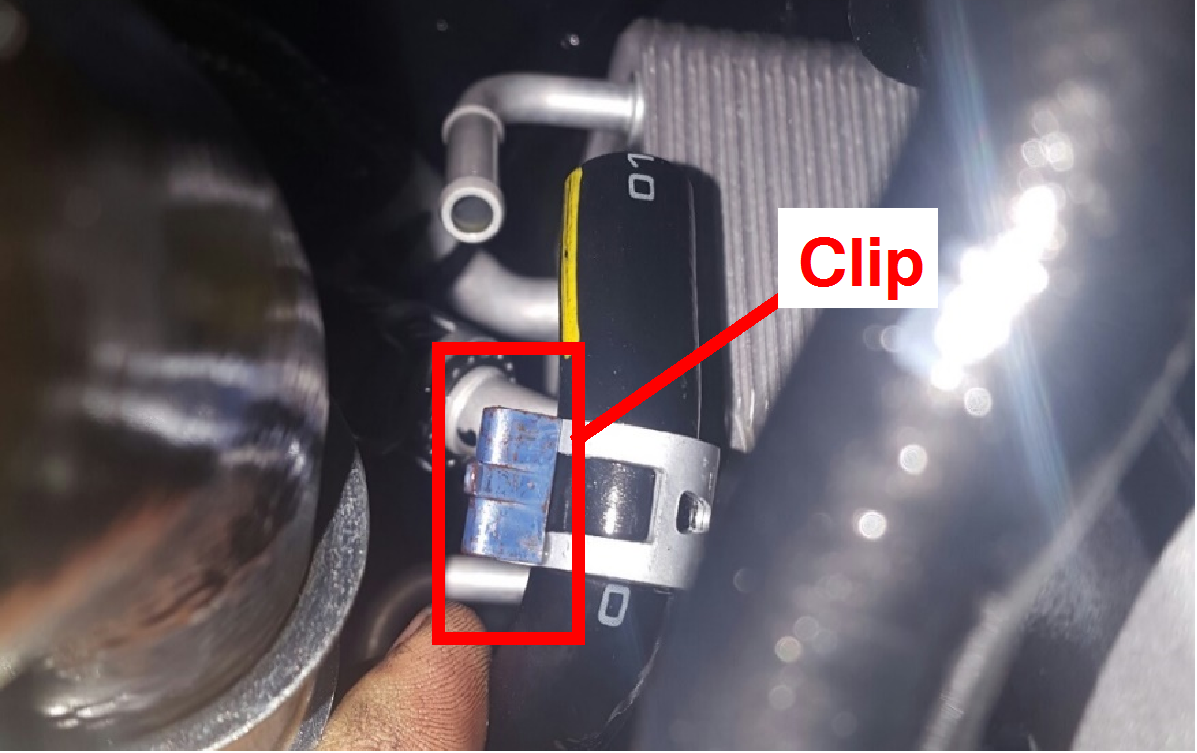

3. Verify that each hose clamp is correctly positioned on the hose and does not have a clip installed.

4. If a clip is found to be installed (i.e., clamp not released), take clear photograph(s) of the clamp and clip, and submit to the MMNA Photo Required Center (PRC). Inspect for any signs of transmission fluid or engine coolant leak. Remove the clip and retain it for potential MMNA inspection. Ensure that the hose and clamp are installed correctly on the fitting, and transmission and coolant fluids are at their recommended levels.
5. Reinstall engine under cover.

PARTS INFORMATION

No parts required to complete this procedure.

WARRANTY INFORMATION

WARRANTY / RECALL CAMPAIGN CLAIM INFORMATION

Enter all claims as claim type ‘C’ – Recall/Campaign Claims.

Please follow the campaign instructions when entering each claim in order to select the applicable operation code that correctly matches up with the work that was actually performed. A claim example is provided below.

Certain 2015MY Outlander Sport and RVR Models

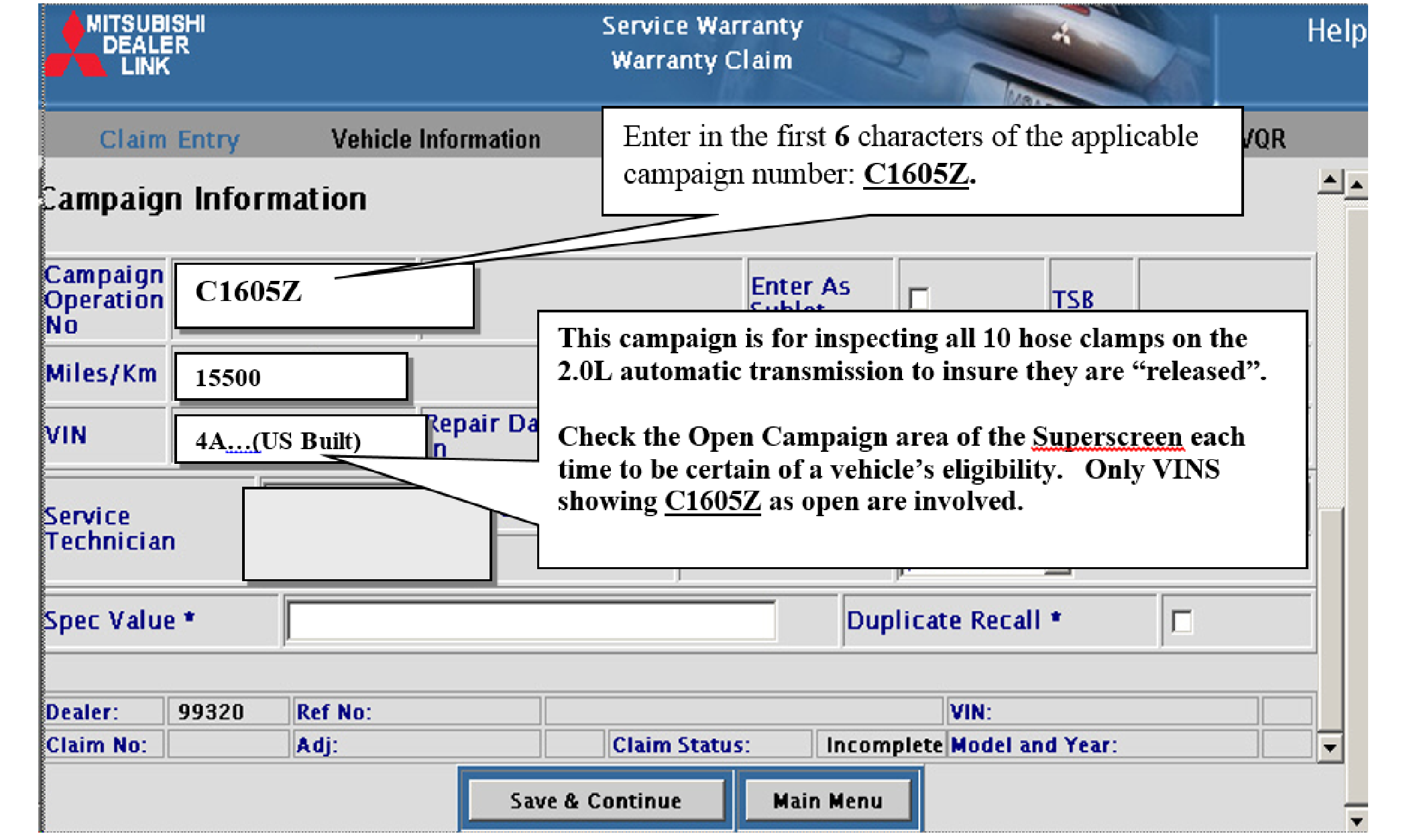

Claim Header Section:

After entering the required customer data, vehicle information, selecting the applicable repair campaign and scenario performed (please note there are 3 possible repair scenarios for this campaign), and then hitting the “Save and Continue” button, the system will automatically fill-in several fields. See the labor and parts examples on the next page. Scenarios 2 and 3 both require photos to be taken of any clamp found to be have NOT been released prior to releasing it.

LABOR:

There are 3 possible repair scenarios for this campaign. You may only select 1 scenario.

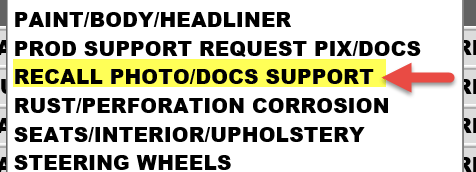

NOTE: For Scenario 2 & Scenario 3, be sure to take photos of the unreleased clamps BEFORE you release them. Post photos to the PRC in the RECALL PHOTO DOCUS SUPPORT category.

PARTS:

In most cases, no parts will be required for this recall. Replacing lost CVT and/or coolant fluid may be required if any clamps that were found not to have been released resulted in a leak.

RENTAL CARS:

If there is a need to provide the owner with a rental car, claim the applicable charges in this section of the claim on the lower portion of the labor entry screen.
