SUBJECT: ABS/ASC WHEEL SPEED SENSOR DIAGNOSIS - SERVICE MANUAL REVISION |
No: TSB-13-35-003 |
||||||||||||||||||
|
DATE: July, 2013 |
|||||||||||||||||||
|
MODEL: See below |
|||||||||||||||||||
|
CIRCULATE TO: |
[ ] GENERAL MANAGER |
[ X ] PARTS MANAGER |
[ X ] TECHNICIAN |
||||||||||||||||
|
[ X ] SERVICE ADVISOR |
[ X ] SERVICE MANAGER |
[ ] WARRANTY PROCESSOR |
[ ] SALES MANAGER |
||||||||||||||||
|
This bulletin supercedes TSB-10-35-002, issued August 2010 to pages for Group 35B - ABS and Group 35C - ASC. All pages have been revised and individual changes are not identified. |
Wheel speed sensor diagnosis procedures for certain ABS/ASC Diagnostic Trouble Codes are incorrect in affected service manuals. This bulletin contains corrected wheel speed sensor diagnostic procedures.
2008-2010 Lancer
2008-2010 Lancer Evolution
2009-2010 Lancer Sportback
2007-2010 Outlander
Refer to the tables below for specific information contained in this bulletin.
|
GROUP 35B - ABS |
|||
|
Model |
Item |
See Attachment # |
|
|
2008-2009 Lancer, 2009 Lancer Sportback, 2008-2010 Outlander |
On-Vehicle Service Hydraulic Unit Check |
1 |
|
|
2008-09 Lancer, 2009 Lancer Sportback, 2008-10 Outlander |
DTCs C1011, C101C, C1027, C1032 |
2 |
|
|
2008-09 Lancer, 2009 Lancer Sportback, 2008-10 Outlander |
DTCs C1014, C101F, C102A, C1035 |
3 |
|
|
2008-09 Lancer, 2009 Lancer Sportback, 2008-10 Outlander |
DTCs C1041, C1042, C1043, C1044 |
4 |
|
|
2008-09 Lancer, 2008-10 Outlander |
DTCs C1046, C1047,
C1048, C1049 |
5 |
|
|
2009 Lancer Sportback |
6 |
||
|
GROUP 35C - ASC |
|||
|
Model |
Item |
See Attachment # |
|
|
2010 Lancer, 2008-2010 Lancer Evolution, 2010 Lancer Sportback, 2008-2010 Outlander |
DTCs C1011, C101C,
C1027, C1032 |
7 |
|
|
2009 Lancer, 2008-2010 Outlander |
8 |
||
|
2007 Outlander |
9 |
||
|
2010 Lancer, 2008-2010 Lancer Evolution, 2010 Lancer Sportback, 2008-2010 Outlander (ASC) |
DTCs C1014, C101F,
C102A, C1035 |
10 |
|
|
2007-2010 Outlander (ABS) |
11 |
||
|
2010 Lancer, 2008-2010 Lancer Evolution, 2010 Lancer Sportback, 2008-2010 Outlander (ASC) |
DTCs C1041, C1042,
C1043, C1044 |
12 |
|
|
2007-2010 Outlander (ABS) |
13 |
||
|
2010 Lancer, 2010 Lancer Sportback (ASC) |
DTCs C1046, C1047,
C1048, C1049 |
14 |
|
|
2008-2010 Outlander (ABS) |
15 |
||
|
22008-2010 Lancer Evolution, 2008-2010 Outlander (ASC) |
16 |
||
|
2007 Outlander |
DTC C1046 |
17 |
|
|
DTCs C1047, C1048, C1049 |
18 |
||
|
2010 Lancer, Lancer Evolution, 2009-2010 Lancer Sportback, 2007-2010 Outlander (ASC) |
Special Tools On-Vehicle Service Hydraulic Unit Check |
19 |
|
|
2007-2010 Outlander (ABS) |
Special Tools On-Vehicle Service Hydraulic Unit Check |
20 |
|
GROUP 35B ANTI-LOCK BRAKING SYSTEM (ABS)

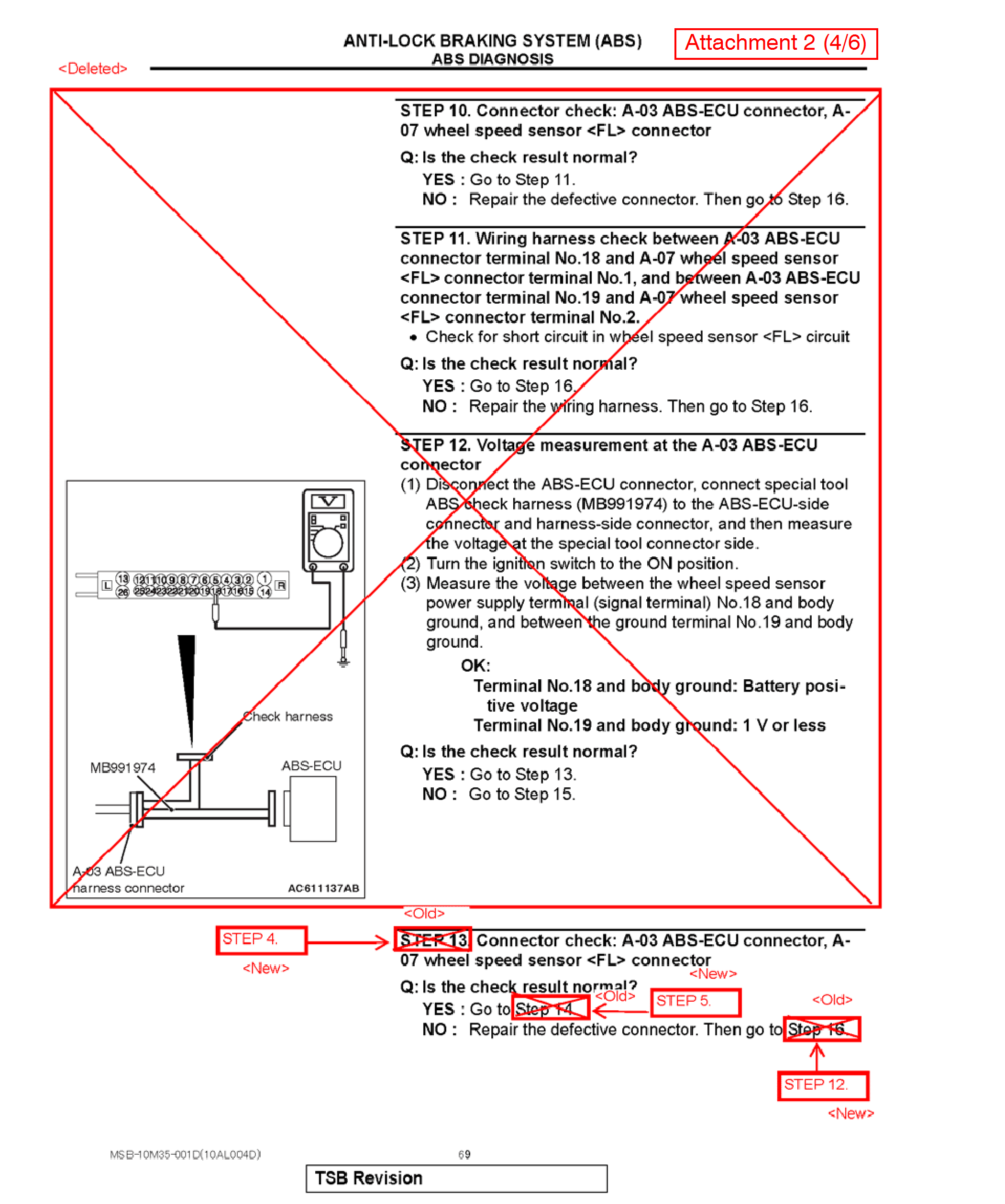

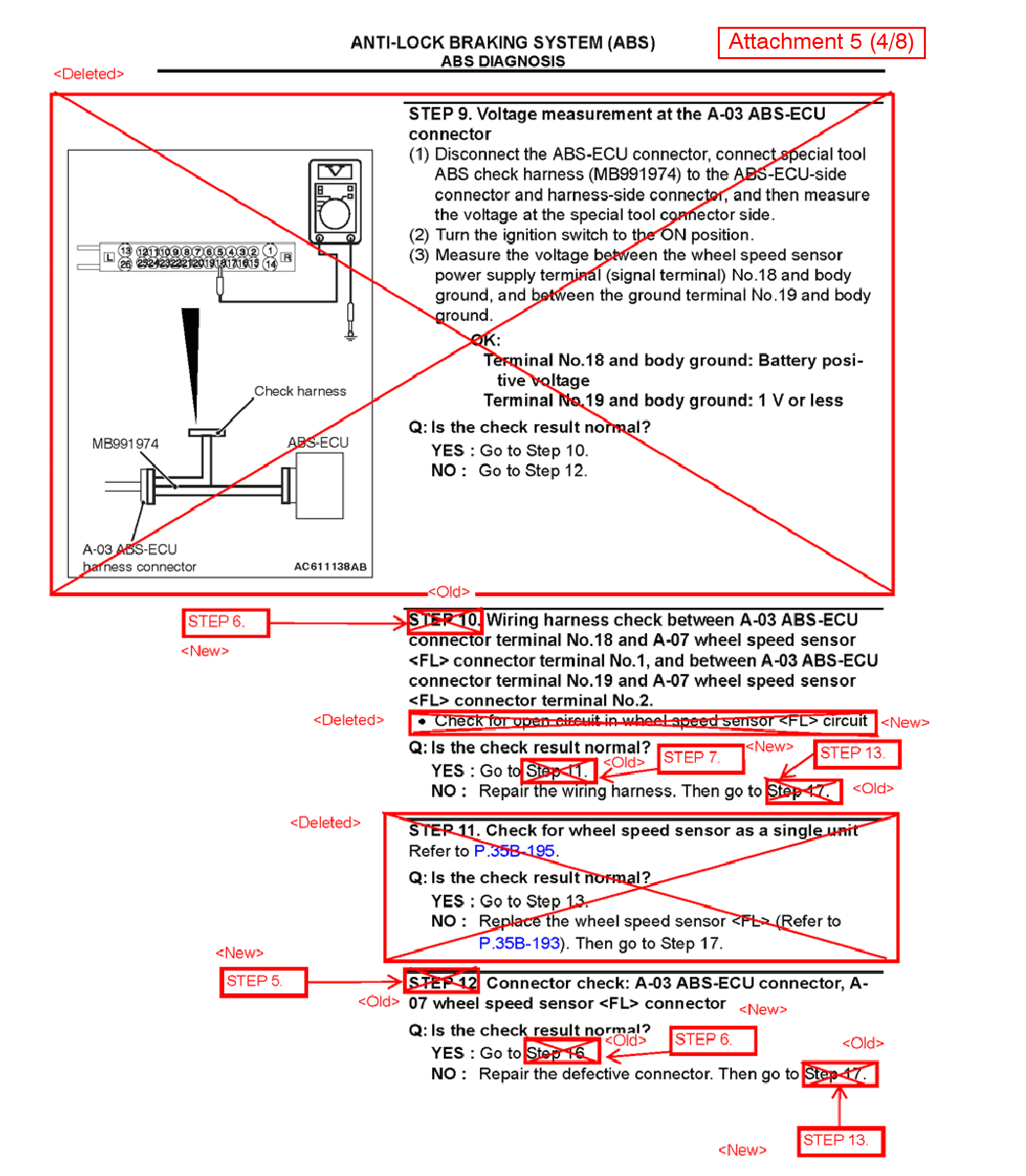

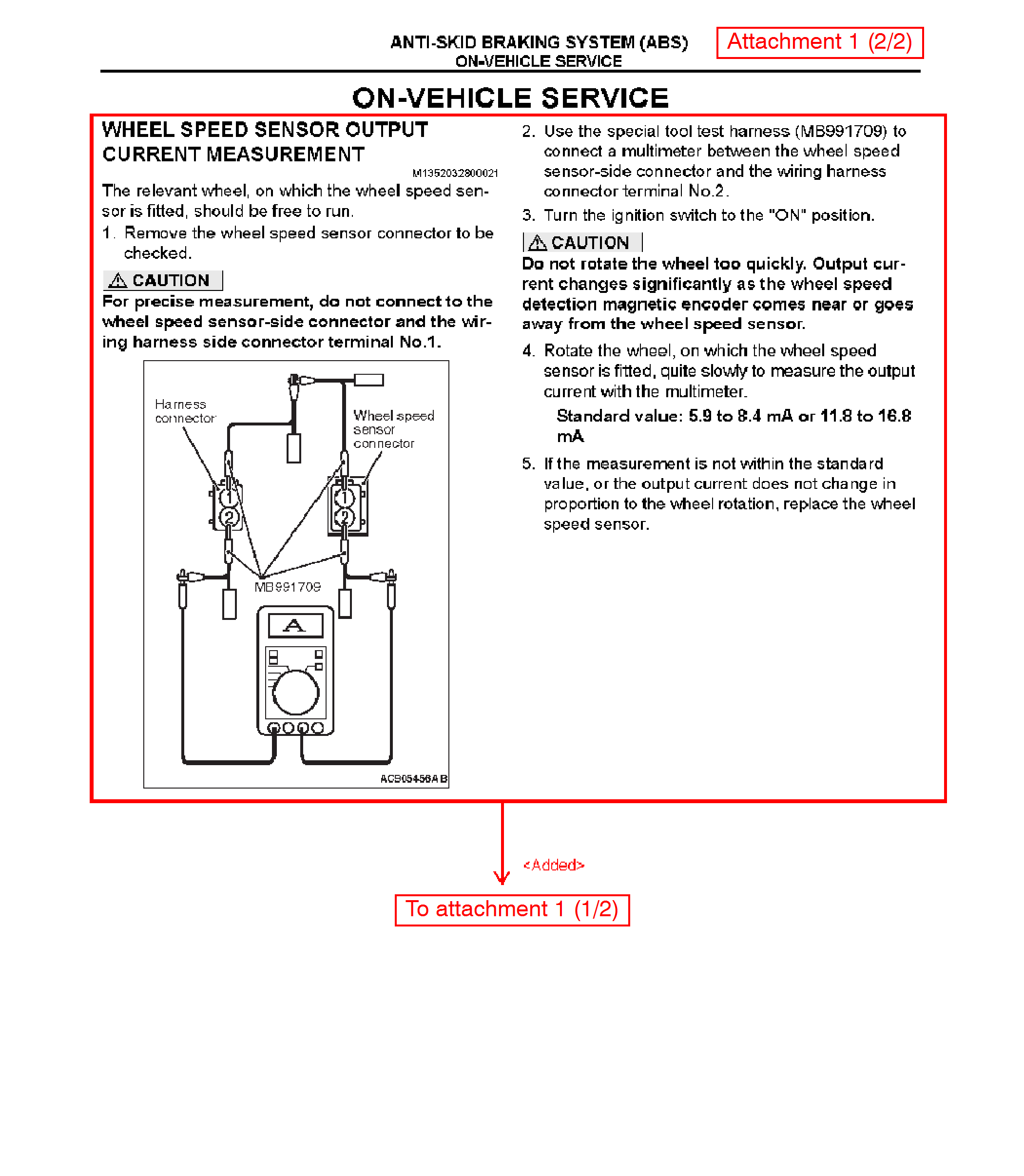

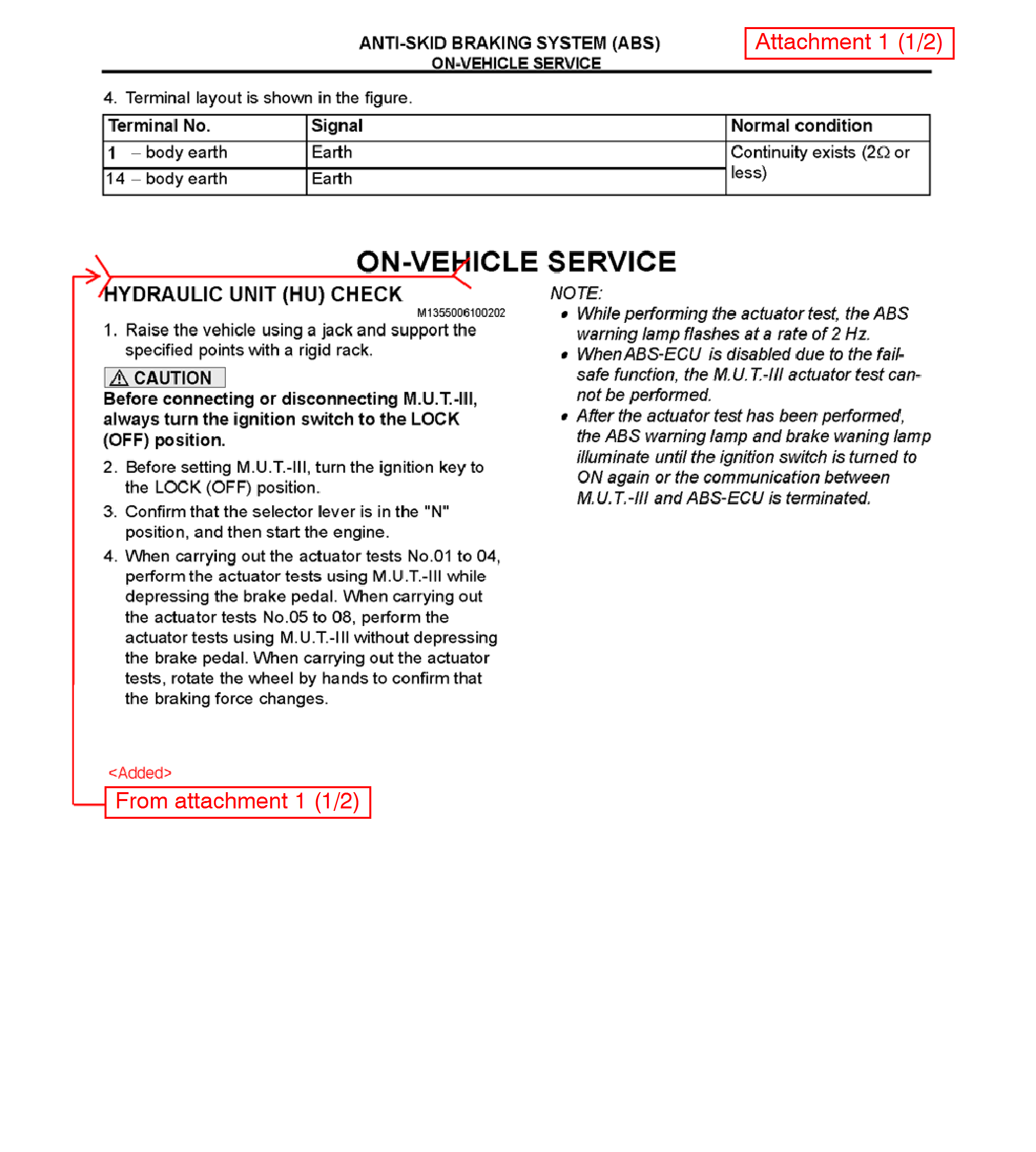

Apply the changes shown on pages 5 - 10 to 2008-09 Lancer, 2009 Lancer Sportback, 2008-10 Outlander Service Manuals, Group 35B Anti-lock Braking System (ABS) > On Vehicle Service

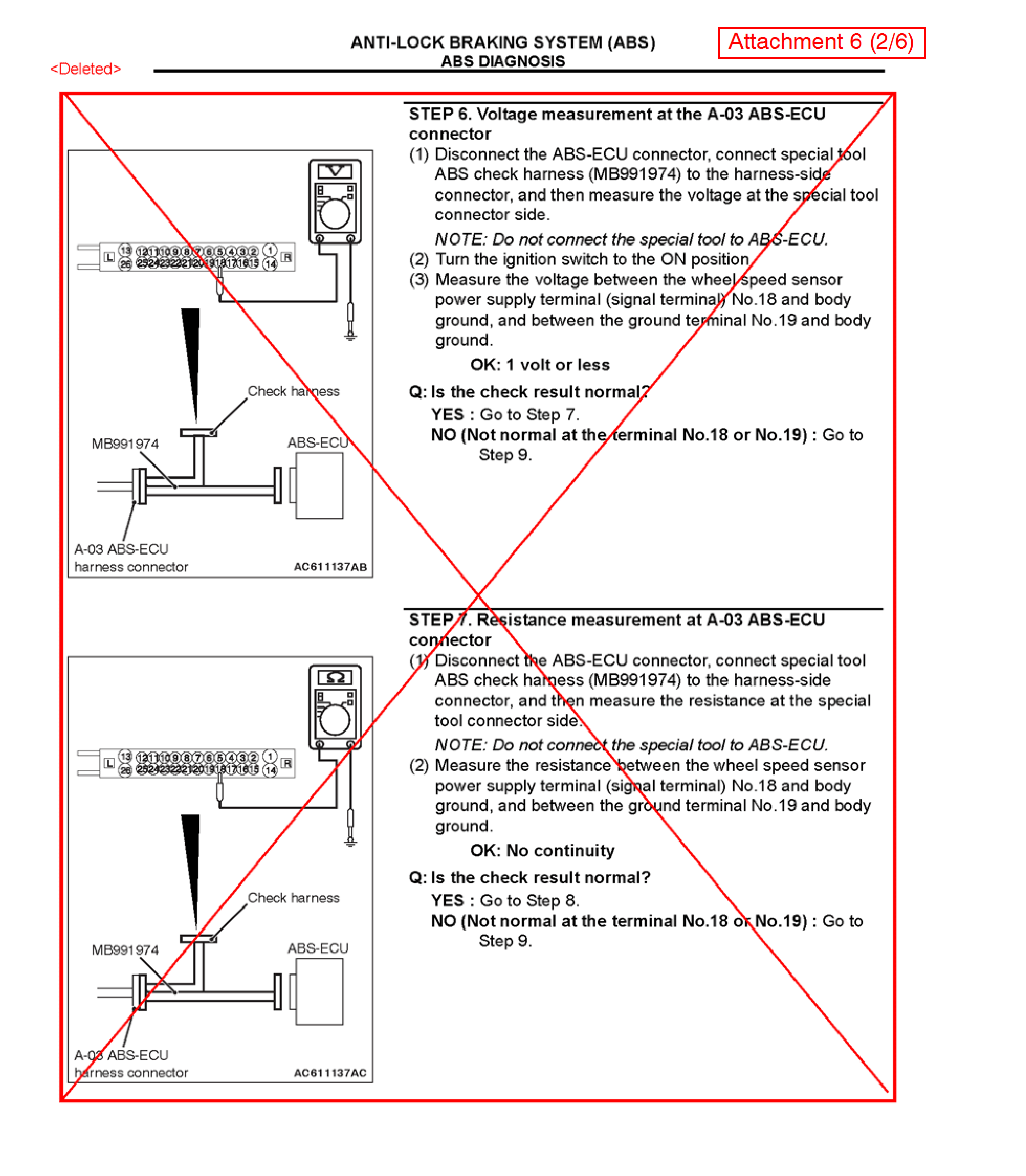

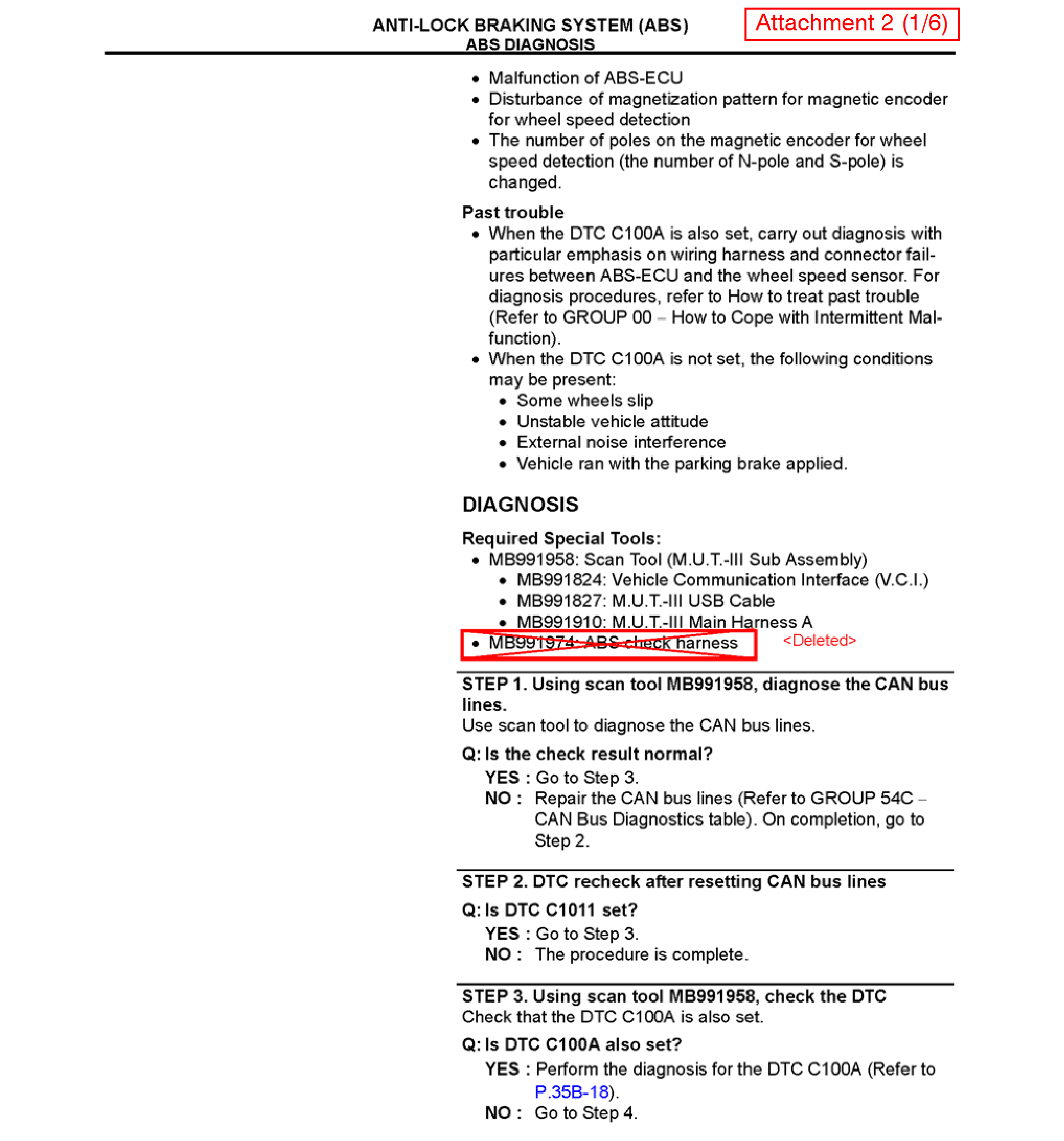

Apply the changes shown on pages 5 - 10 to 2008-09 Lancer, 2009 Lancer Sportback, 2008-10 Outlander Service Manuals Group 35B Anti-lock Braking System (ABS) > Diagnostic Trouble Code Procedures > DTCs C1011, C101C, C1027 and C1032

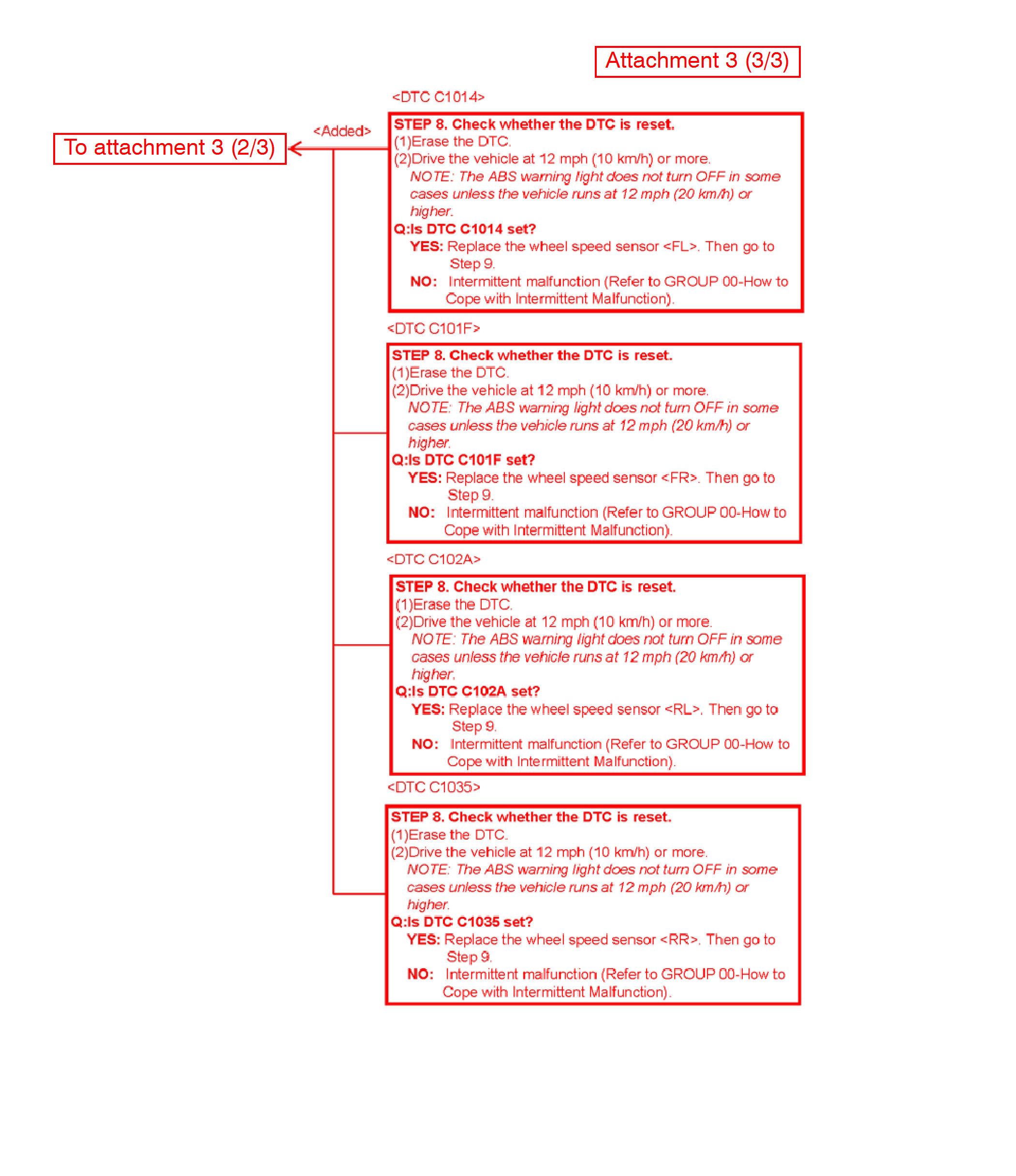

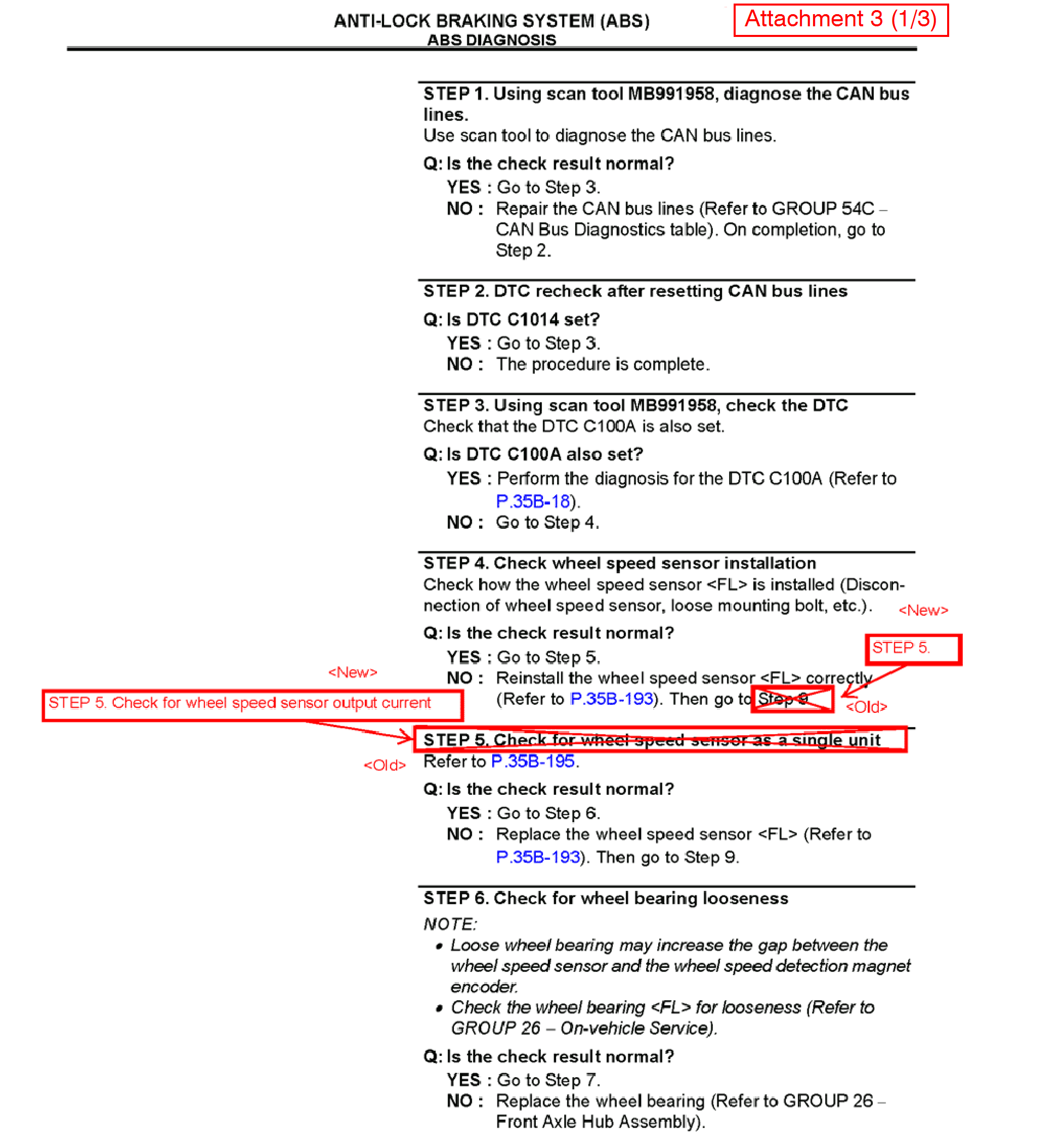

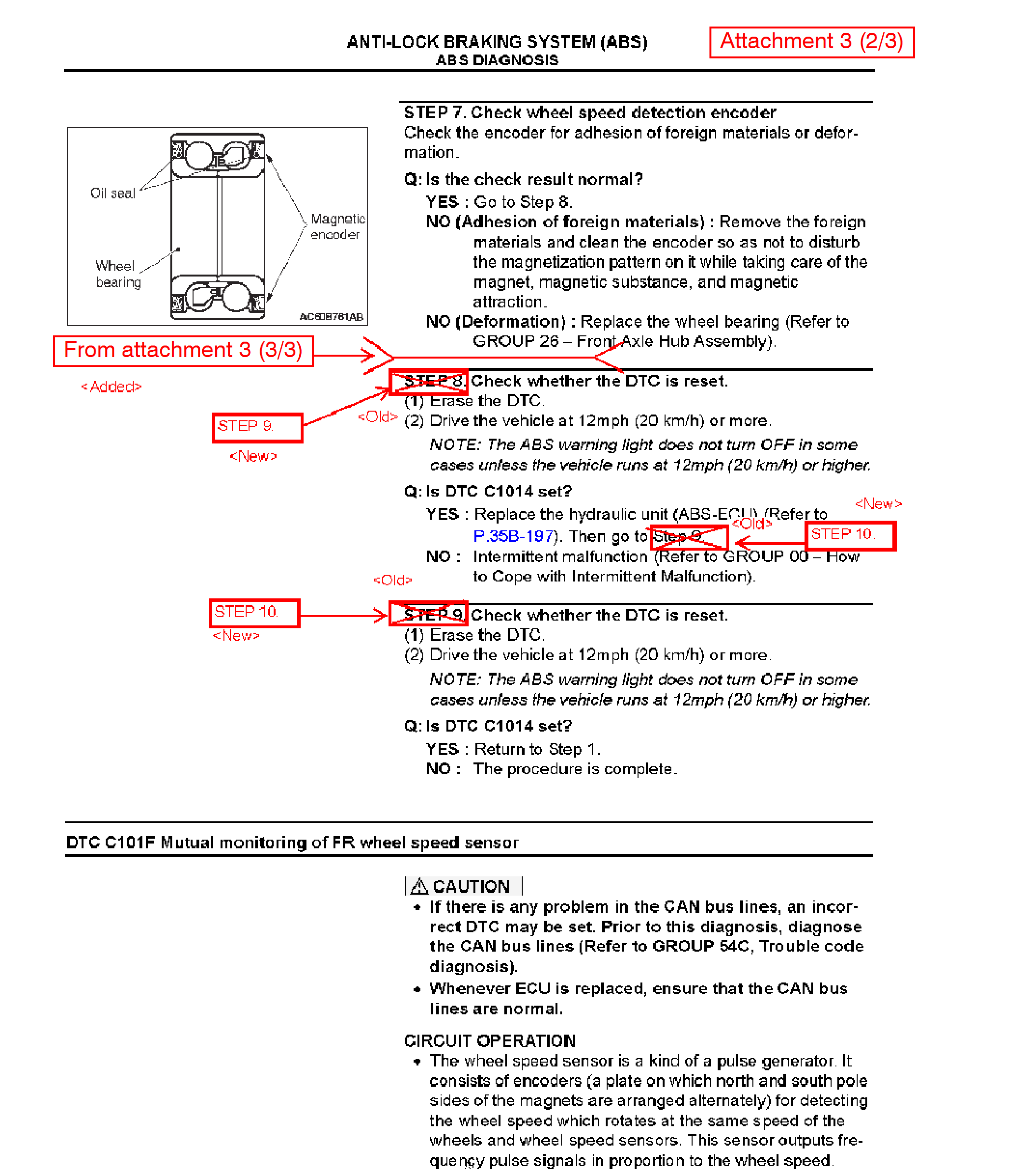

Apply the changes shown on pages 11 - 13 to 2008-09 Lancer, 2009 Lancer Sportback, 2008-10 Outlander Service Manuals, Group 35B Anti-lock Braking System (ABS) DTCs C1014, C101F, C102A, C1035.

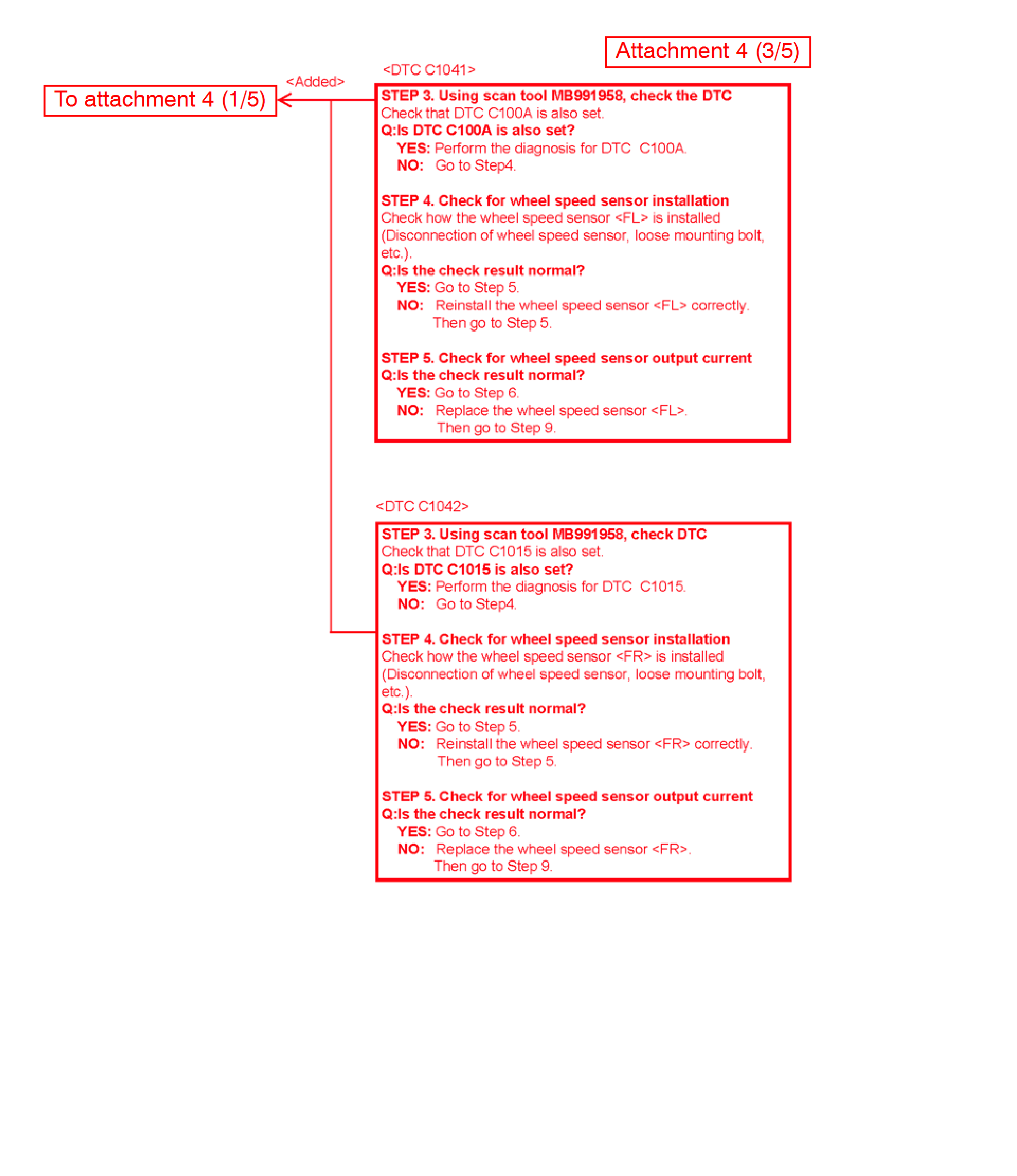

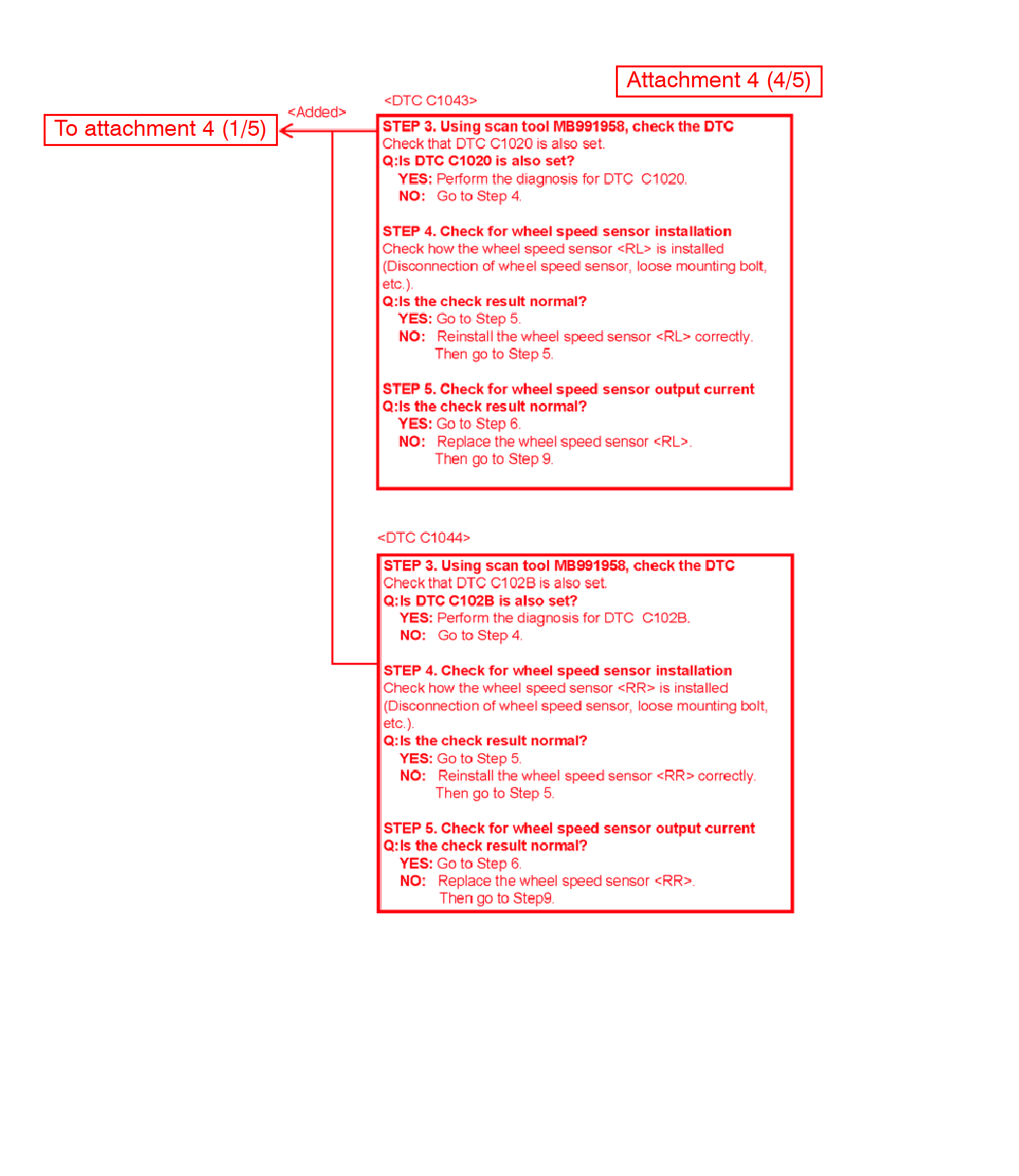

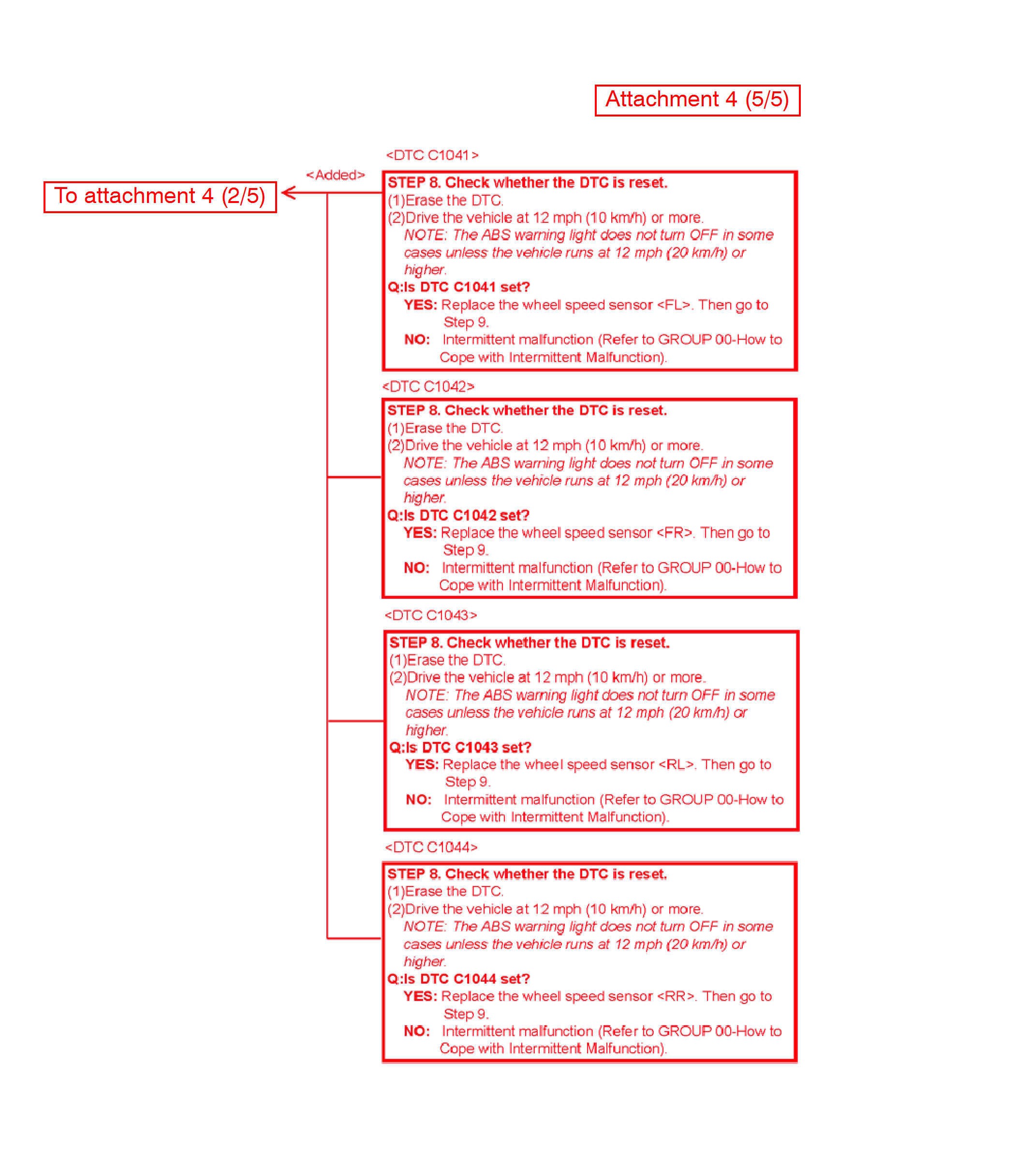

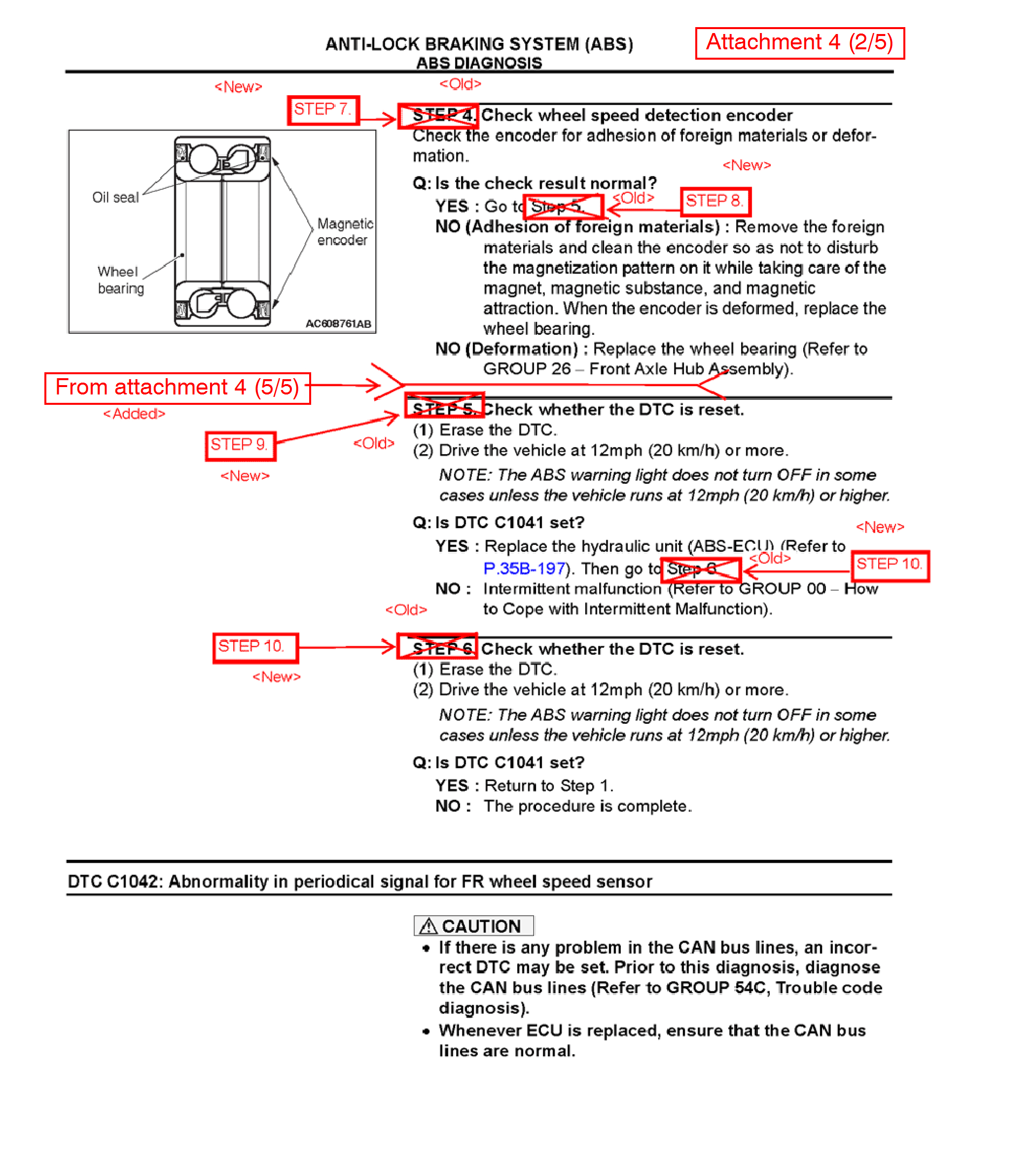

Apply the changes shown on pages 14 - 18 to 2008-09 Lancer, 2009 Lancer Sportback, 2008-10 Outlander Service Manuals, Group 35B Anti-lock Braking System (ABS) DTCs C1041, C1042, C1043, C1044.

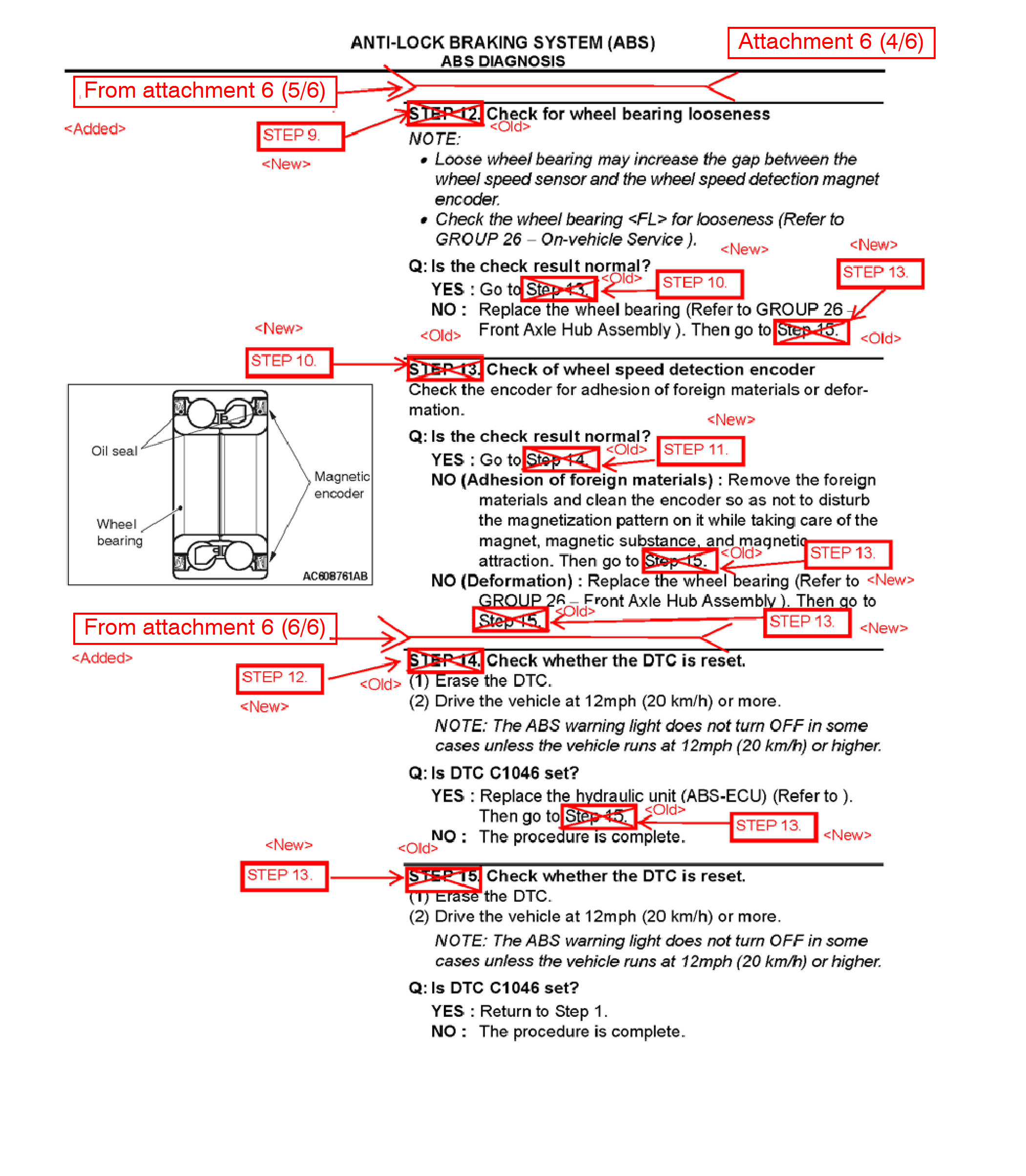

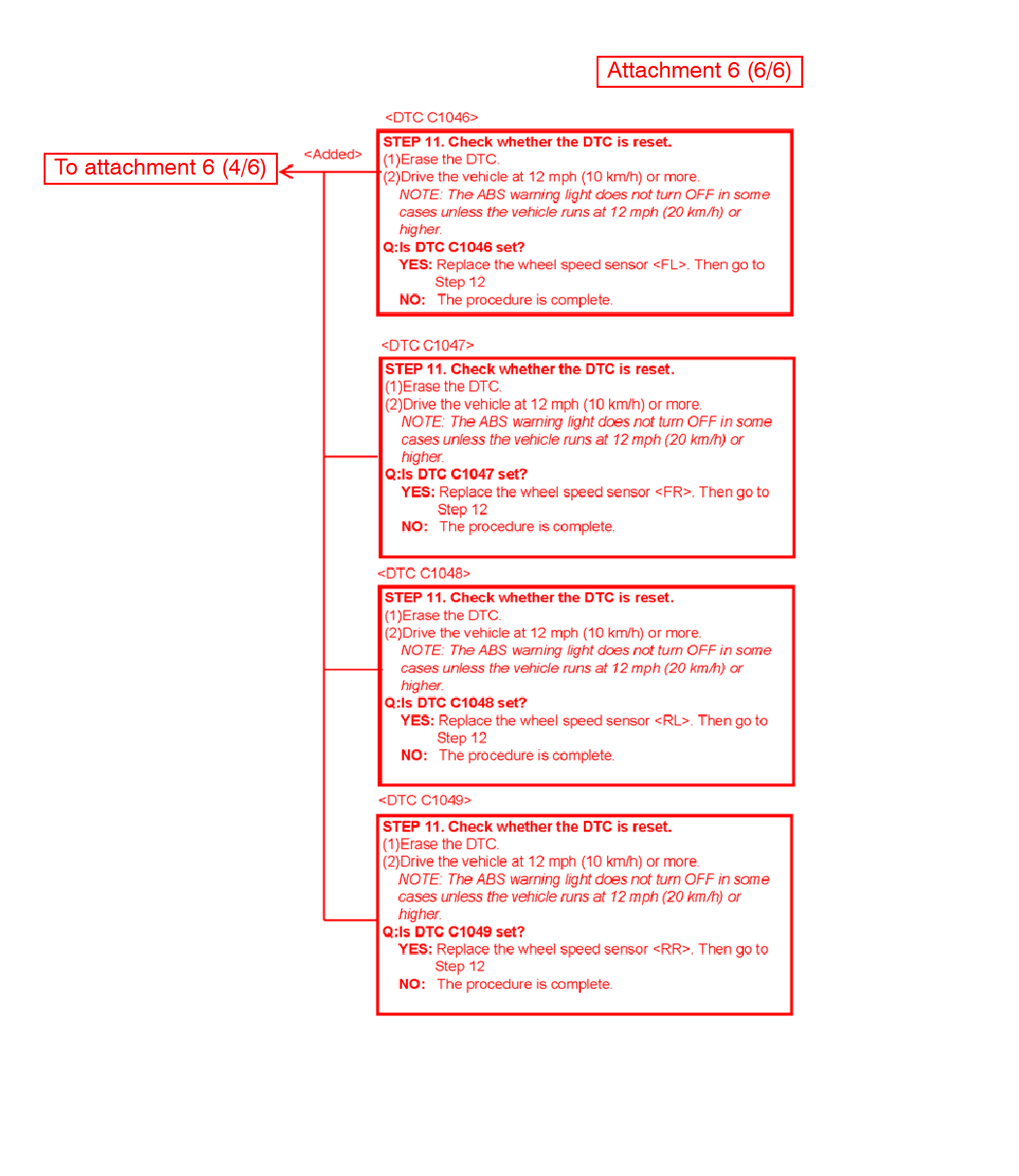

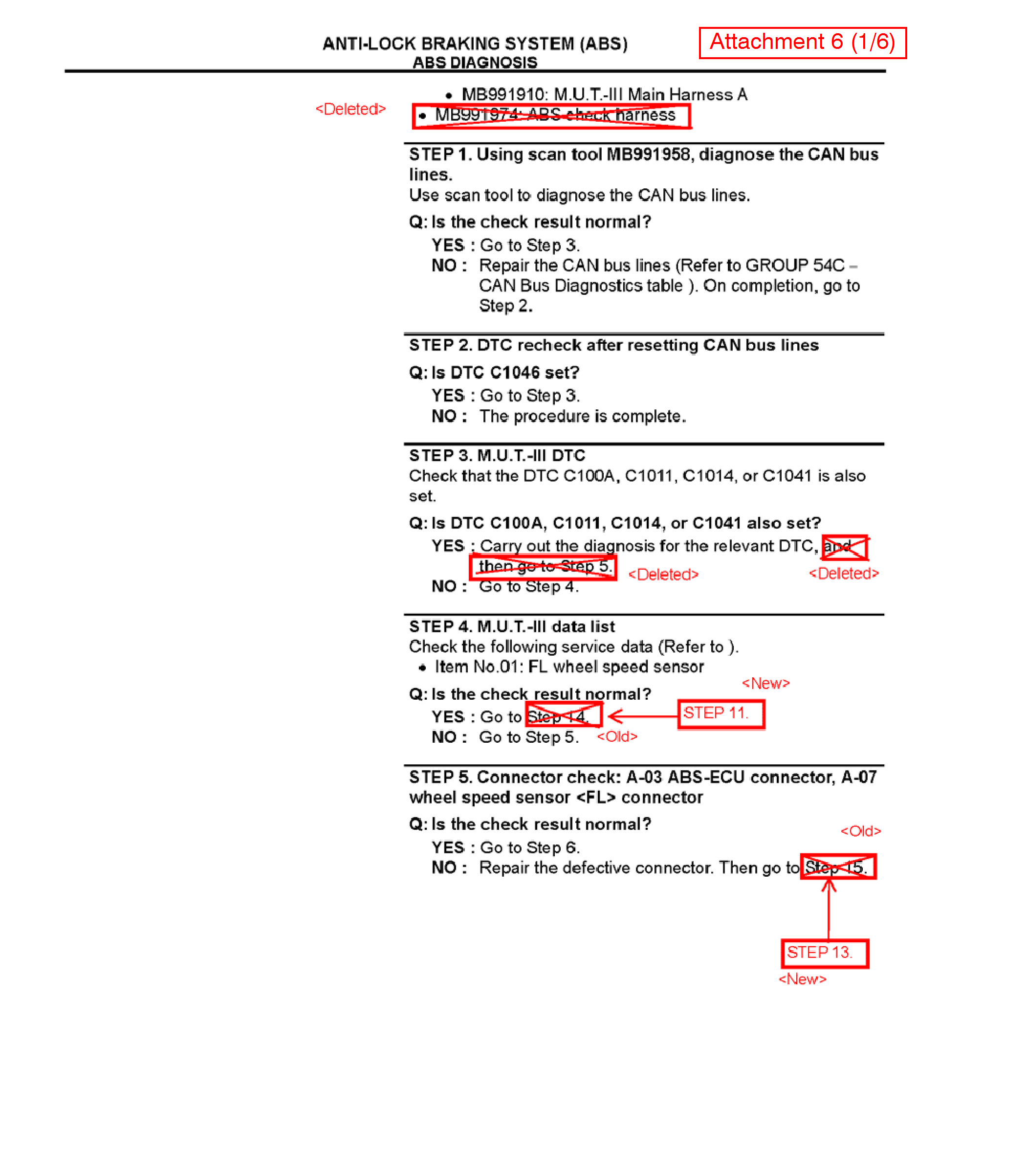

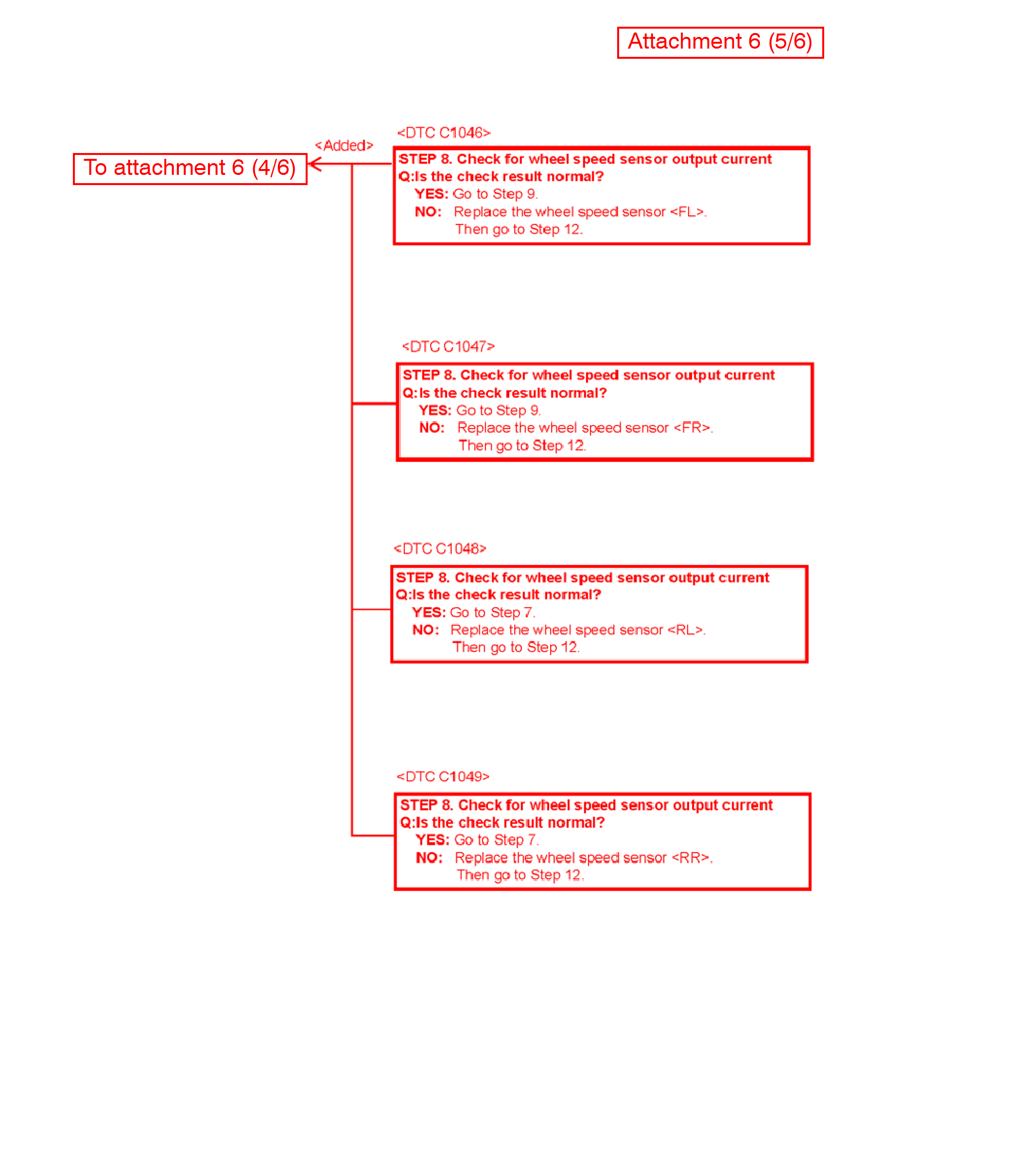

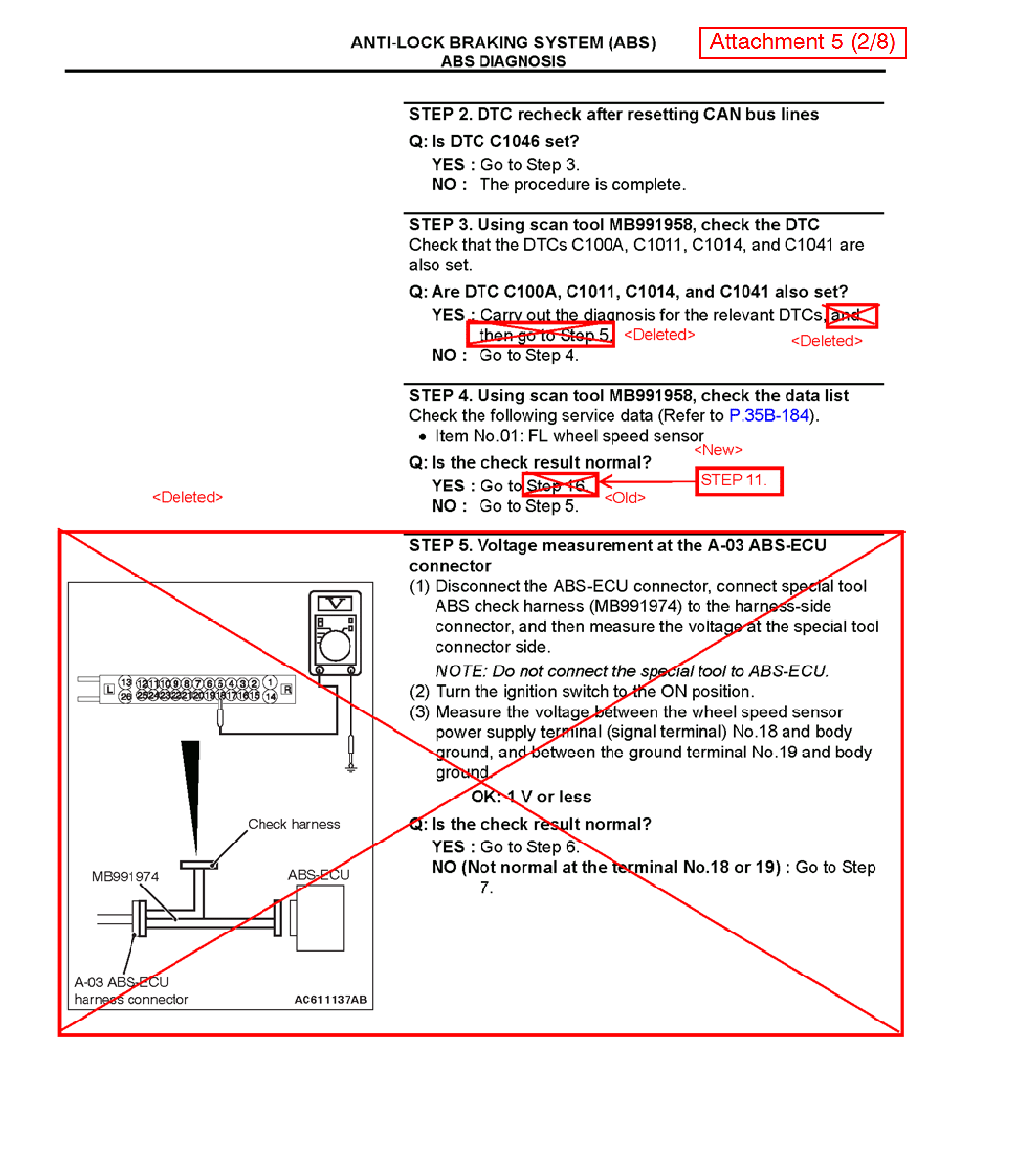

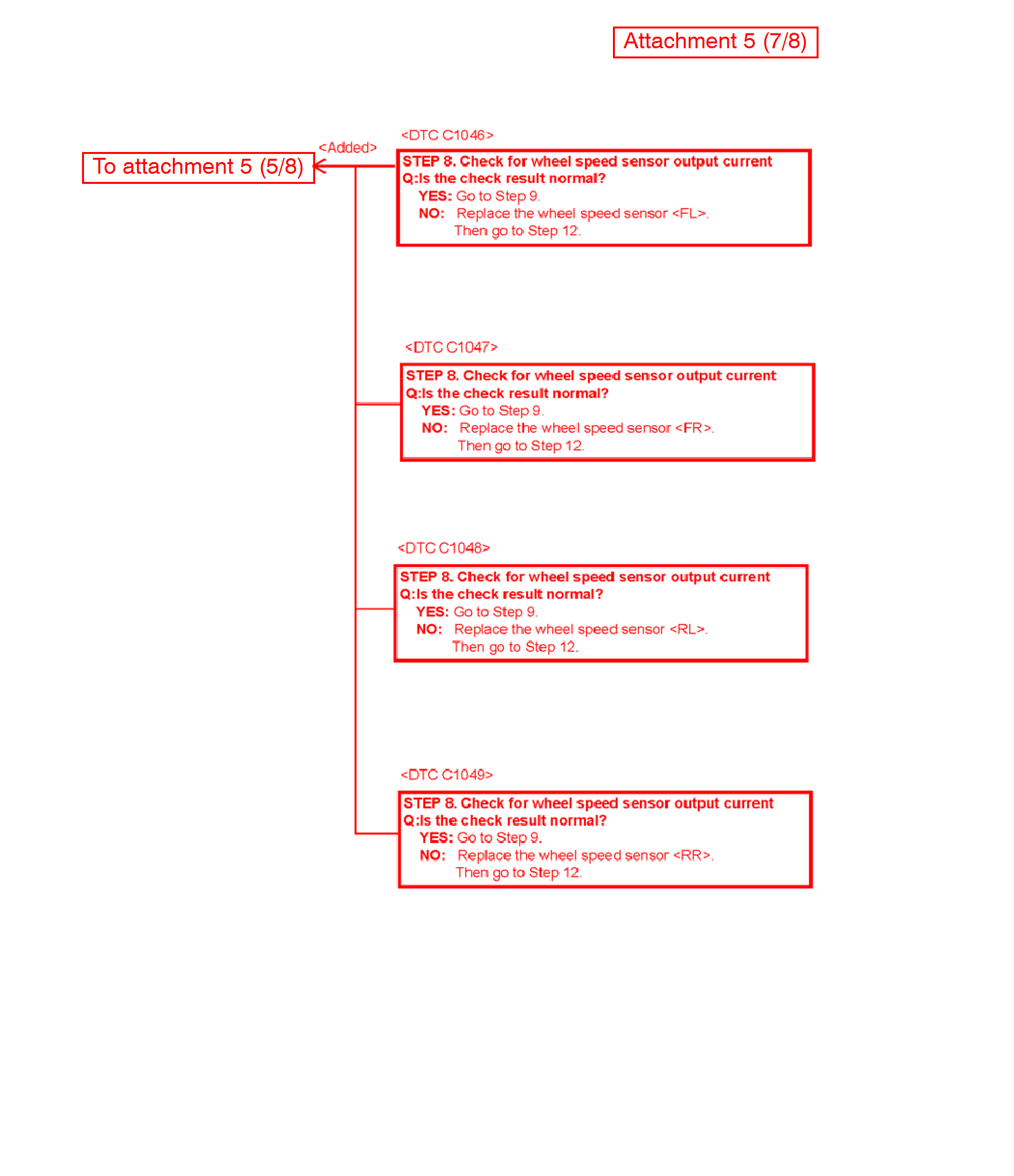

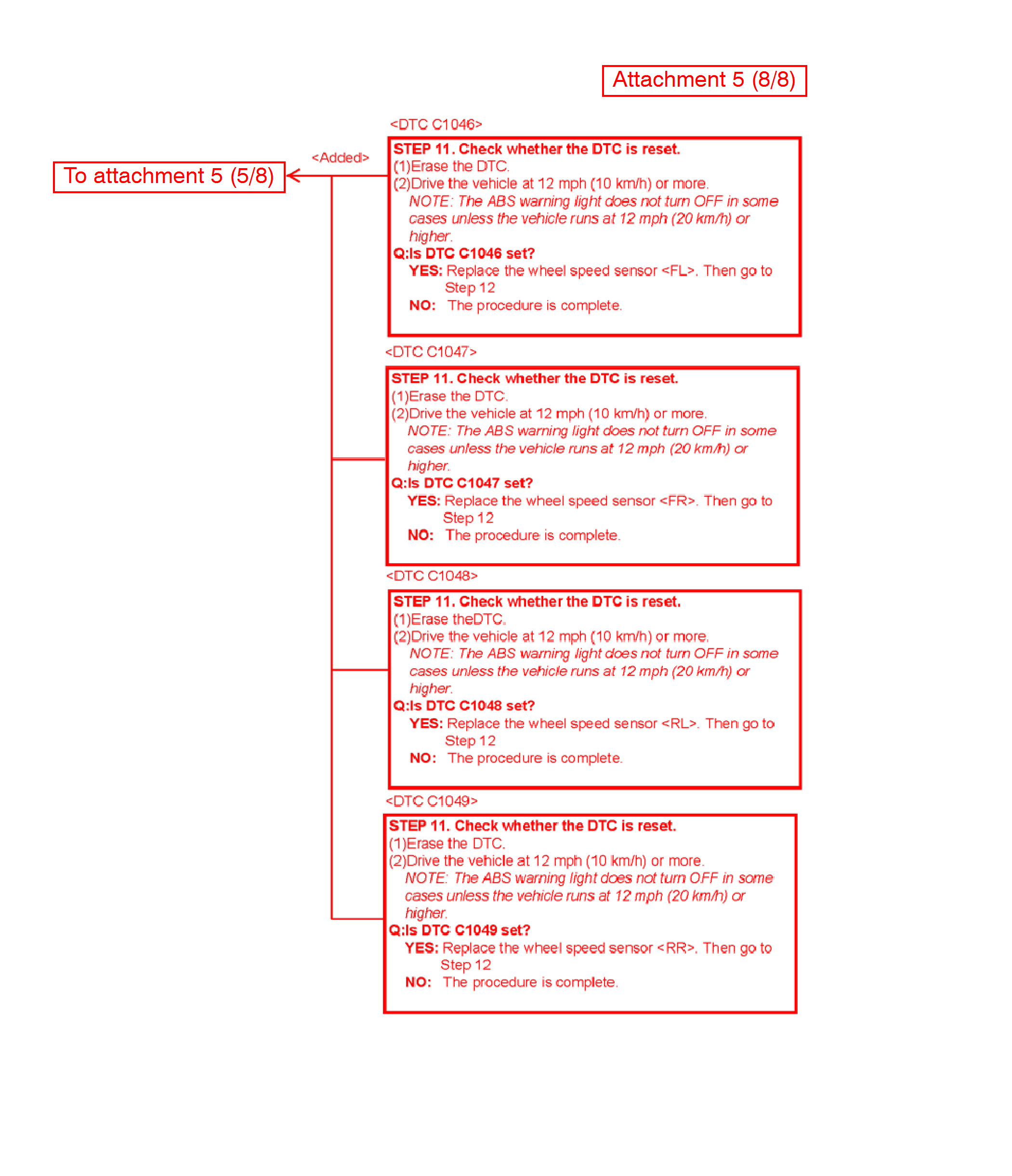

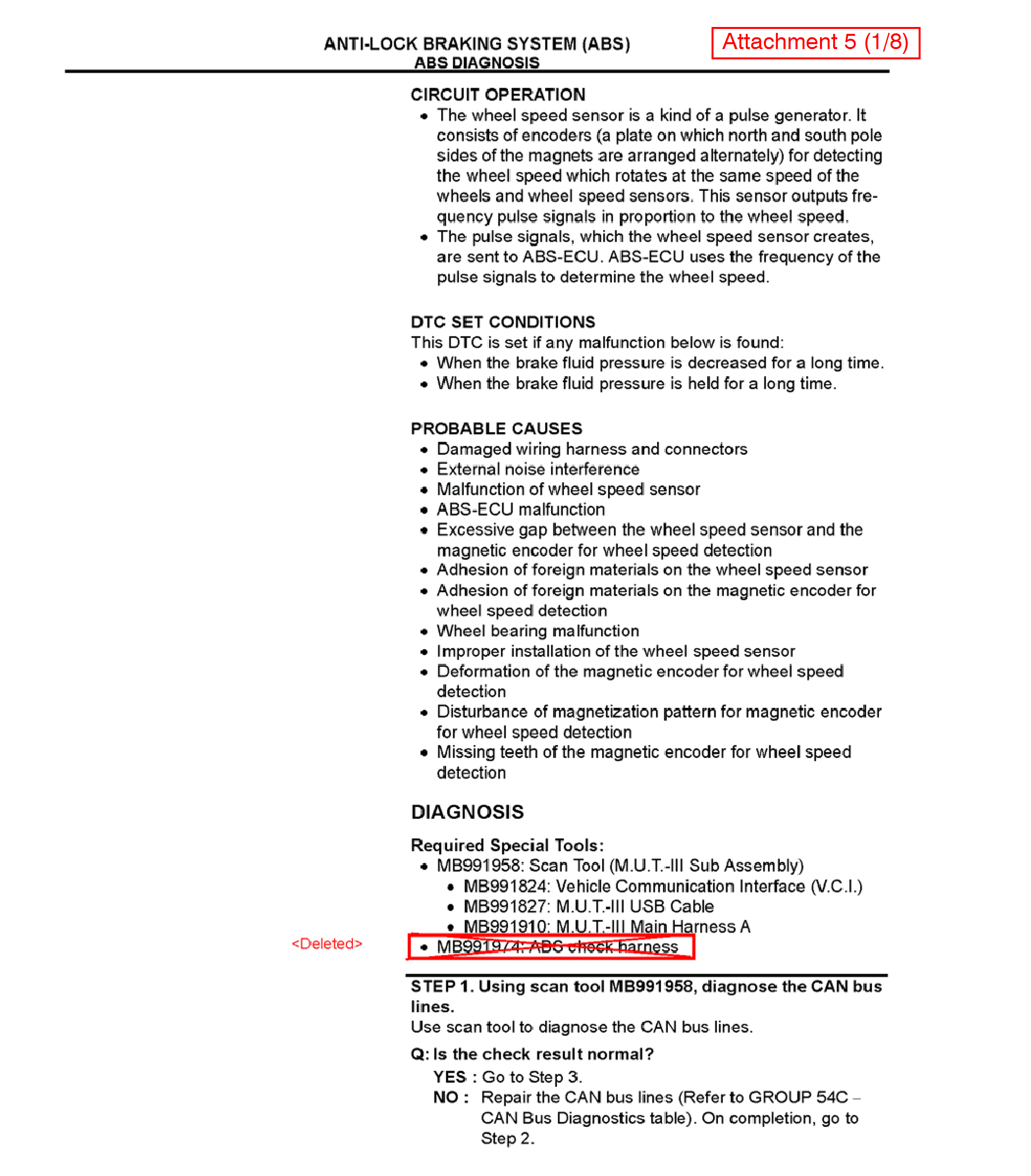

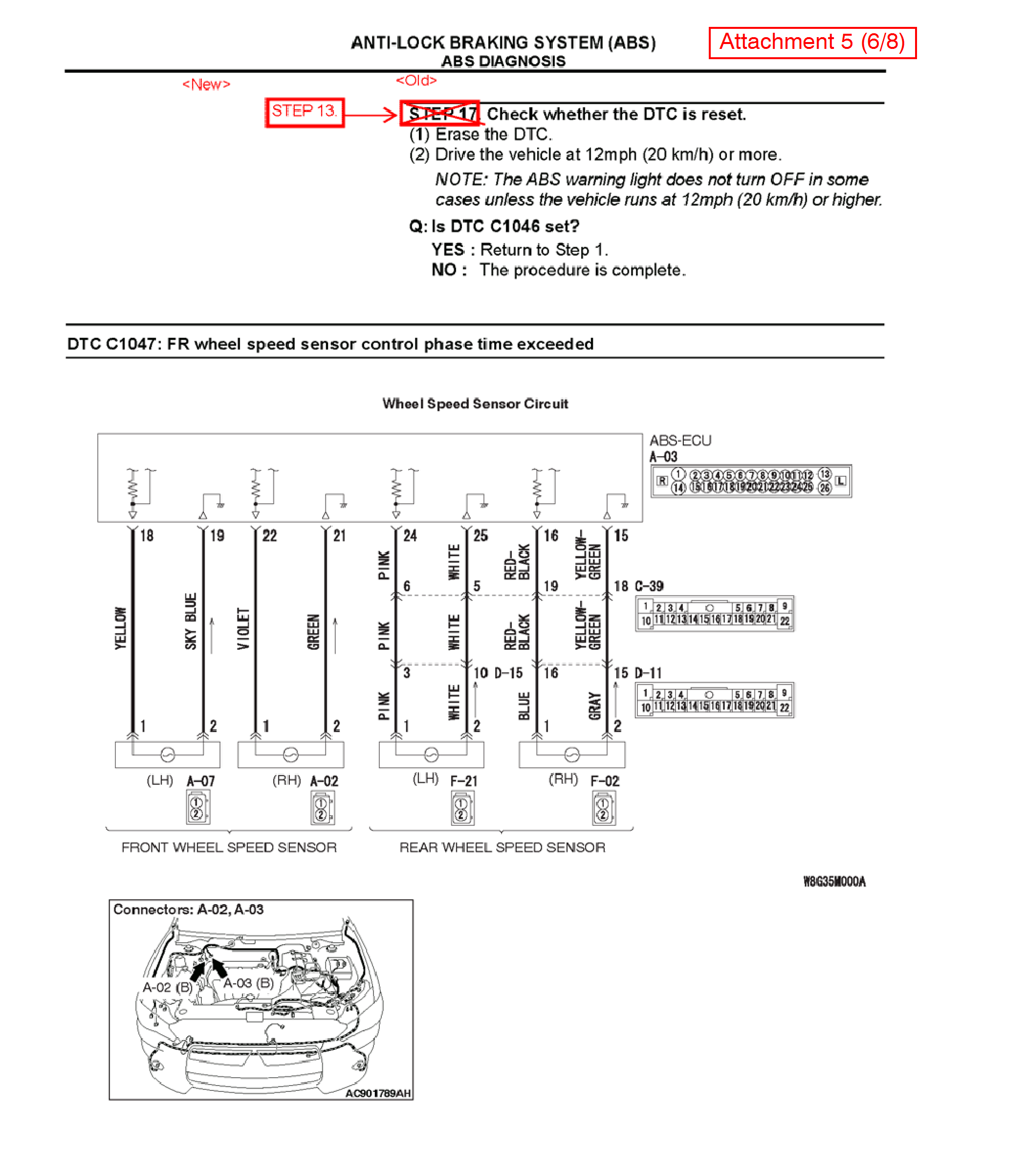

Apply the changes shown on pages 19 - 26 to: 2008-09 Lancer, 2008-10 Outlander Service Manuals, Group 35B Anti-lock Braking System (ABS) DTCs C1046, C1047, C1048, C1049.
Apply the changes shown on pages 27 - 32 to: 2009 Lancer Sportback, 2008-10 Outlander Service Manuals, Group 35B Anti-lock Braking System (ABS) DTCs C1046, C1047, C1048, C1049.
