| Lubricant |
Specifications |
Remarks |
| Engine oil |
Engine oils displaying ILSAC certification symbol ("Starburst" symbol) or conforming to the API classification SN. |
For further details, refer to "LUBRICANTS SELECTION" section . |
| Engine coolant |
Mitsubishi Motors Genuine Super Long Life Coolant Premium or equivalent* |
*Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid technology. |
| Rear motor coolant |
||
| Front motor fluid |
Mitsubishi Motors Genuine CVTF-J4 |
- |
| Transaxle fluid |
Mitsubishi Motors Genuine ATF SPIII |
- |
| Driveshaft (inside of knuckle bore) grease |
Shell Alvania Grease HDX or equivalent |
- |
| Driveshaft (PTJ boot, EBJ boot, ETJ joint) grease |
Repair kit grease |
- |
| Brakes fluid |
DOT3 or DOT4 |
- |
| Disc brake (Piston, caliper body , piston seal) |
- |
|
| Front disc brake (Guide pin, lock pin, pin boot, bushing, boot ring, piston boot) |
Repair kit grease (Color: Translucent red), Niglube RX-2 or equivalent |
- |
| Rear disc brake (Guide pin, lock pin, pin boot, bushing, piston boot, o-ring) |
Cosmo rubber grease or equivalent |
- |
| Rear disc brake (Piston, caliper body, piston seal) |
DOT3 or DOT4 |
- |
| Rear disc brake (Shim, brake pad assembly) |
Repair kit grease |
- |
| Tie-rod bellows |
Silicone grease |
- |
| Tie rod end ball joint dust cover |
Multipurpose grease SAE J310, NLGI No.2 or equivalent |
- |
| Sunroof assembly, Sunroof deflector |
Use resin - proof silicone grease |
- |
| Door hinges, back door hinges lubricant |
Engine oil |
- |
| Wiper motor link rod (Contact joint between link rod and wiper motor link plate) |
Multipurpose grease SAE J310, NLGI No.2 or equivalent |
- |
| Compressor refrigerant unit lubricant, each connection of refrigerant line |
MA68EV or Ze-GLES RB68 |
- |
| Refrigerant (air conditioning) |
HFO-1234yf (R-1234yf) |
- |
| Description |
Specification |
|
| Engine oil dm3 (qt) |
Total quantity |
4.3 (4.5) |
| Oil filter |
0.3 (0.32) |
|
| Engine coolant dm3 (qt) [includes 0.65 dm3 (0.69 qt) in the radiator condenser tank] |
7.5 (7.9) |
|
| Rear motor coolant dm3 (qt) [includes 1.07 dm3 (1.13 qt) in the EV radiator condenser tank] |
6.5 (6.9) |
|
| Front motor fluid dm3 (qt) |
2.2 (2.3) |
|
| Fuel tank dm3 (gal) |
43 (11.3) |
|
| Transaxle fluid dm3 (qt) |
Front |
3.46 (3.66) |
| Rear |
0.85 (0.90) |
|
| Connection between the drive shaft assembly and the wheel bearing grease g (oz) |
As required [1.0 - 1.5 (0.04 - 0.05)] |
|
| Driveshaft (Inside of knuckle bore) grease g (oz) |
Front |
As required [About 2.0 (0.07)] |
| Driveshaft (Inboard joint) grease g (oz) |
Front |
115 ± 10 (3.9 ± 0.4) |
| Rear |
55 ± 10 (1.9 ± 0.4) |
|
| Driveshaft (outboard joint) grease g (oz) |
Front |
95 ± 10 (3.4 ± 0.4) |
| Brakes fluid dm3 (qt) |
As required |
|
| Tie rod end ball joint dust cover (inside of dust cover) grease g (oz) |
5.0 ± 1.0 (0.18 ± 0.04) |
|
| Tie rod end ball joint dust cover (lip) grease g (oz) |
As required |
|
| Wiper motor link rod grease g (oz) |
||
| Air conditioning compressor refrigerant unit oil dm3 (qt) |
100 (3.4) |
|
| Air conditioning each connection of refrigerant line oil dm3 (qt) |
As required |
|
| Refrigerant (air conditioning) |
515 ± 20 (18.2 ± 0.7) |
|
LUBRICANT SELECTION |
ENGINE OIL |
) |
|
) |
If these oils are not available, an API classification SN can be used. |

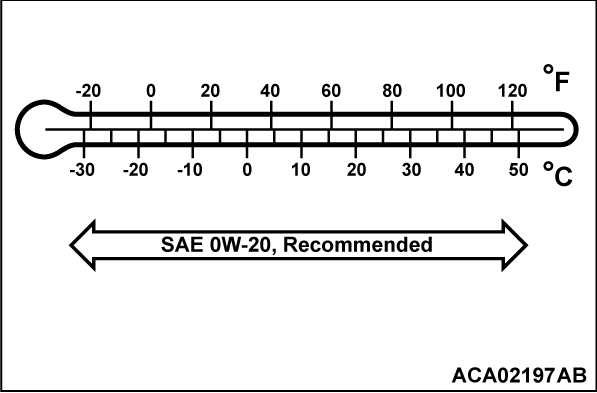

OIL VISCOSITY |
) |
The SAE grade number indicates the viscosity of the oil. A proper SAE grade number should be selected according to ambient temperature. |
