REMOVAL AND INSTALLATION


warningFor removal and installation of the Knee air bag module, always observe the service procedures described in GROUP 52B, Knee Air Bag Module .
Pre-removal and Post-installation Operation
  • Knee air bag module (Refer to GROUP 52B - Knee Air Bag Module ).

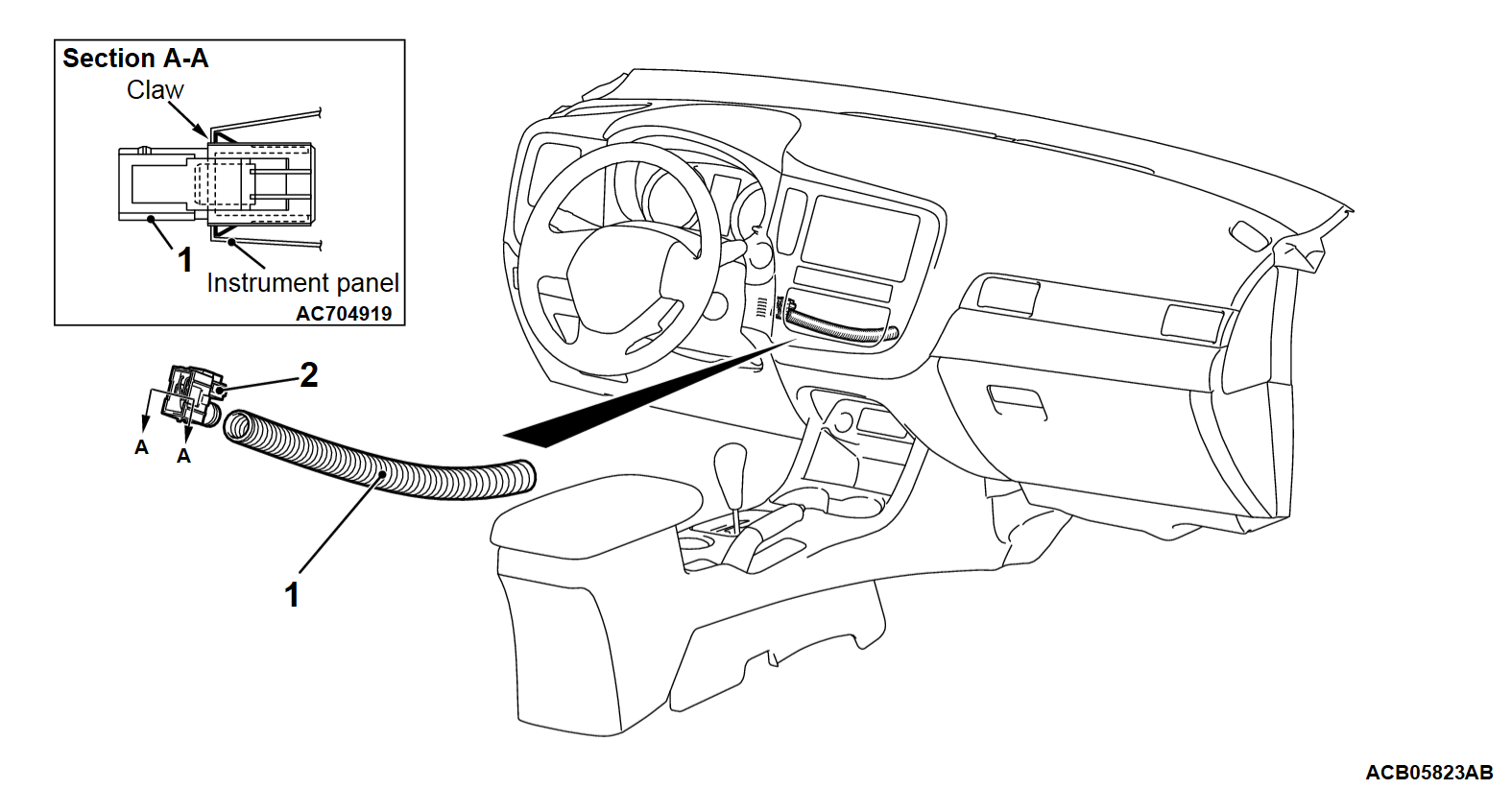

Removal steps
1.Aspirator hose
2.Interior temperature sensor
