DISASSEMBLY AND ASSEMBLY

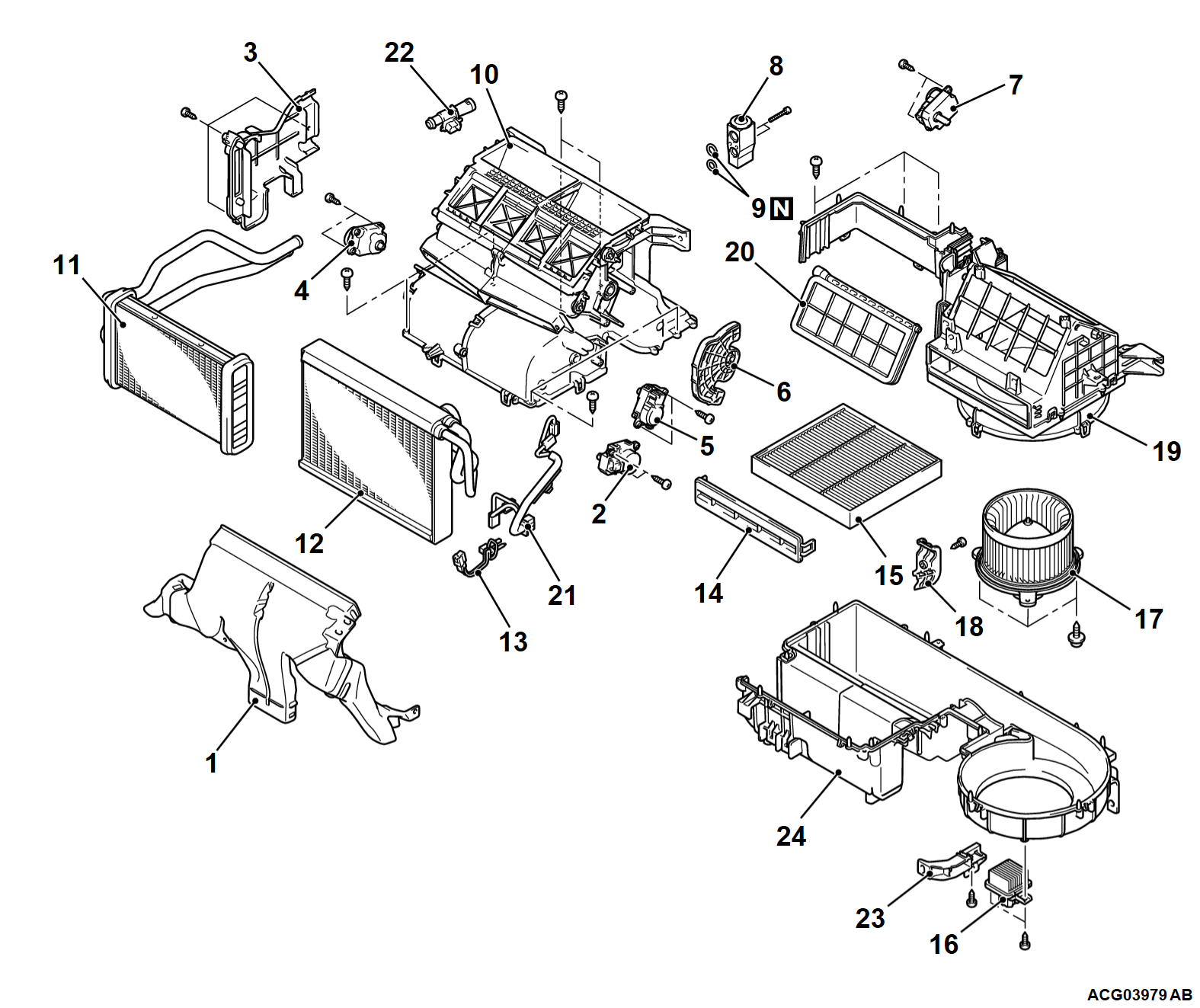

Disassembly steps
1.Foot duct
2.Air mixing damper control motor (driver’s side)
3.Cover A
4.Air mixing damper control motor (passenger’s side)
5.Mode selection damper control motor
6.Mode lever
7.Outside/Inside air selection damper control motor

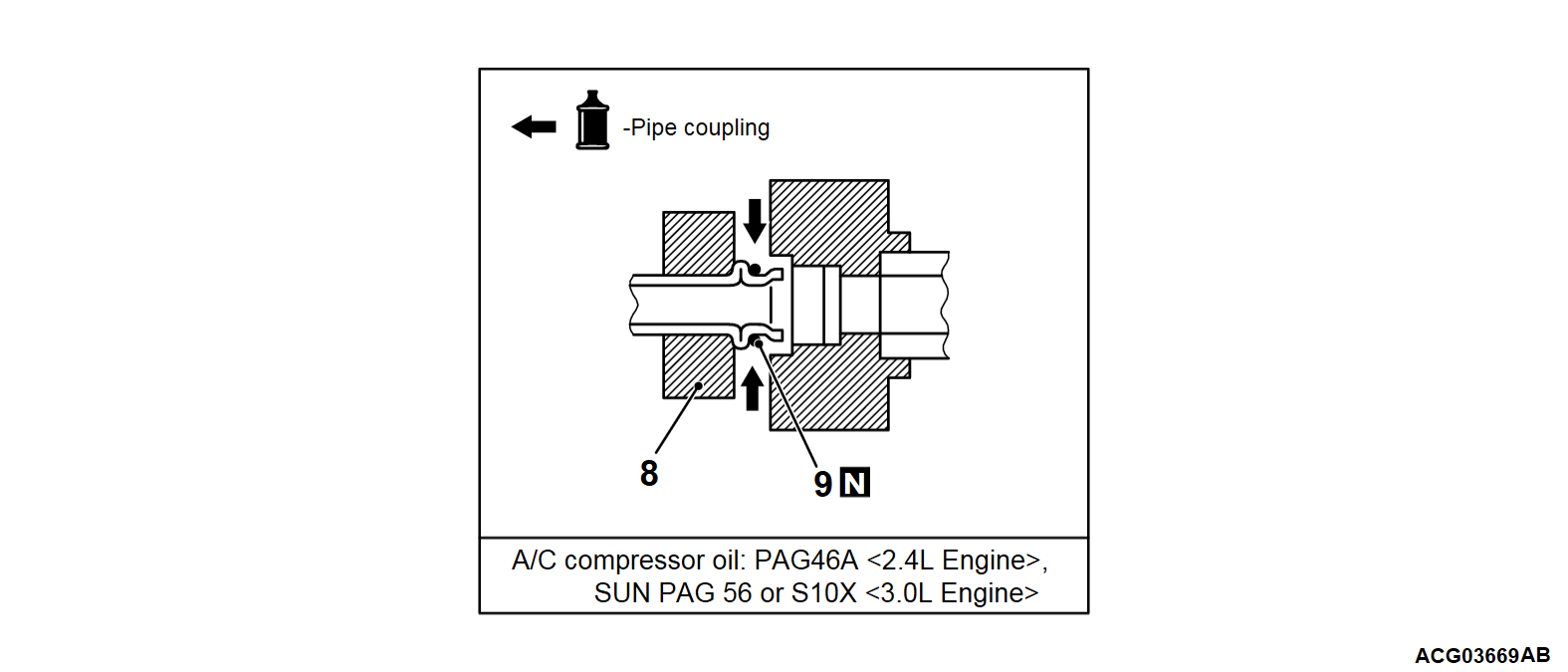

8.Expansion valve
9.O-ring
10.Upper case assembly
11.Heater core
12.Evaporator
13.Fin thermo sensor
14.Clean air filter cover
15.Clean air filter
16.Power transistor
17.Blower motor
18.Cover C
19.Blower case assembly
20.Outside/inside air selection damper
21.Wiring harness
22.Aspirator
23.Duct bracket
24.Lower case
