LDW SWITCH INSPECTION


ON/OFF CHECK

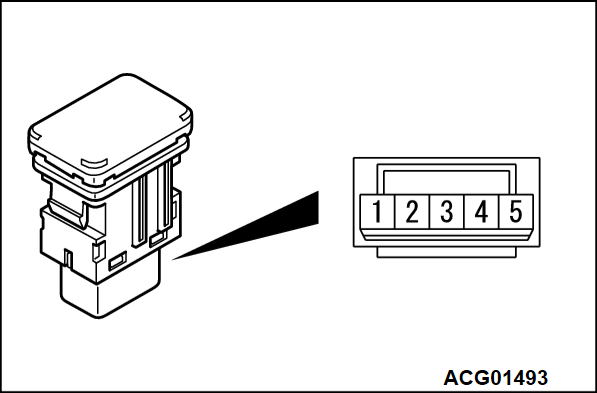

Switch positionTester connectionSpecified condition
ON (switch pushed)2 - 5Continuity exists (2 ohms or less)
OFF (switch released)Open circuit
Switch positionTester connectionSpecified condition
ON (switch pushed)2 - 5Continuity exists (2 ohms or less)
OFF (switch released)Open circuit



ILLUMINATION CHECK
Apply the battery voltage to the connector terminal No. 3, ground the terminal No. 4, and then check that the illuminates.
