STEERING WHEEL VOICE CONTROL SWITCH CHECK

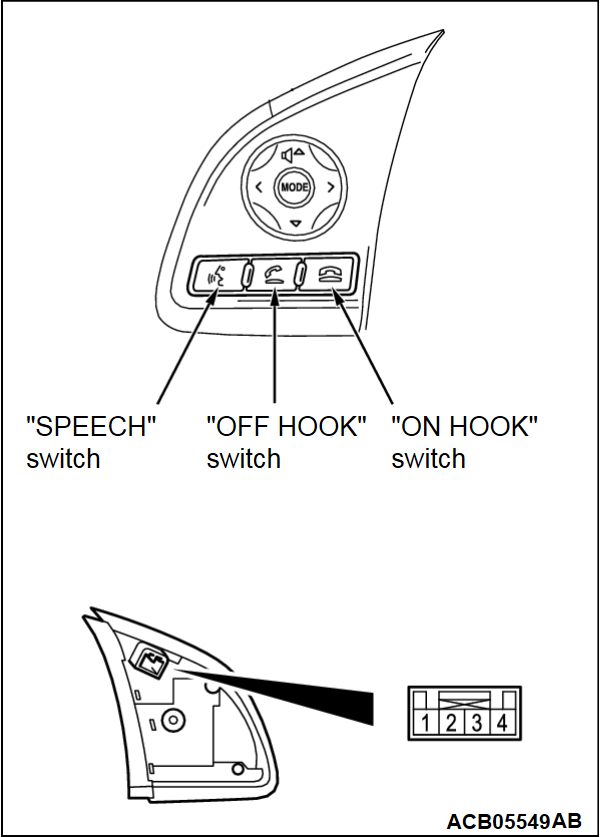

Switch positionTester connectionMeasurement Value
"SPEECH" switch pushed <Vehicles with 1CD audio or display audio (CD player equipped)>1 - 2Approximately 4.6 kΩ
"OFF HOOK" switch pushedApproximately 6.3 kΩ
"ON HOOK" switch pushedApproximately 8.6 kΩ



ILLUMINATION CHECK
Apply the battery voltage to the connector terminal No. 3, ground the terminal No. 4, and then check that the illumination lights up.
