HOW TO REGISTER AND DELETE BLUETOOTH® DEVICE


It is possible to perform Bluetooth® pairing and remove a paired Bluetooth® device from the multivision display via a touch panel operation on the multivision display screen.
note
  • Some Bluetooth® devices may not be compatible with the multivision display.
  • A maximum of five Bluetooth® devices can be registered.
  • This system cannot be used when a battery of Bluetooth® devices was exhausted.


HOW TO REGISTER BLUETOOTH® DEVICE


1. Select "Settings" button on the "Home" screen.

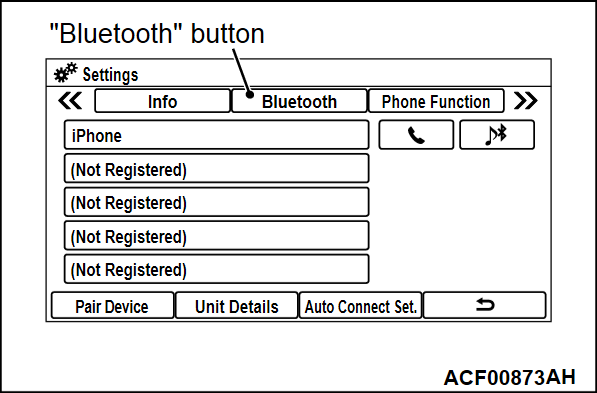

2. Select "Bluetooth" button on "Settings" screen.

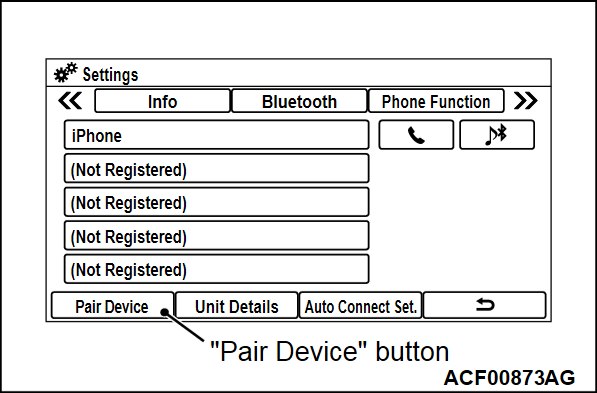

3. Select "Pair Device" button to start the registration.

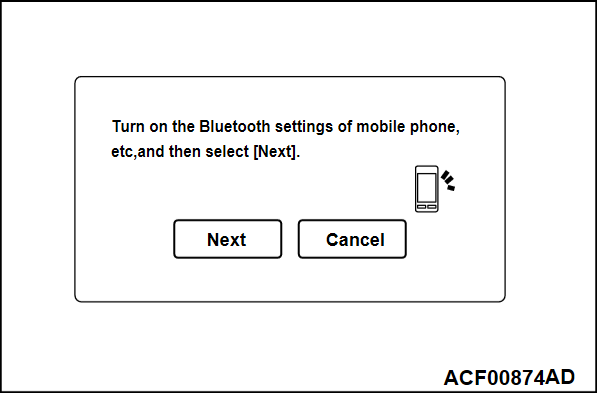

4. Activate a Bluetooth® function on the Bluetooth® device and then press "Next" button.
noteWhen "Cancel" button is selected, the registration will be cancelled.

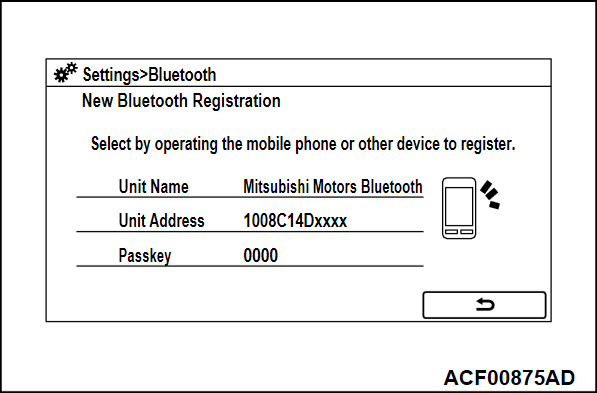

5. On the registered Bluetooth® device, "Unit Name", "Unit Address" and "Passkey" must be displayed.
noteThe initial value of "Passkey" is "0000."




HOW TO DELETE BLUETOOTH® DEVICE


1. Select "Settings" button on the "Home" screen.

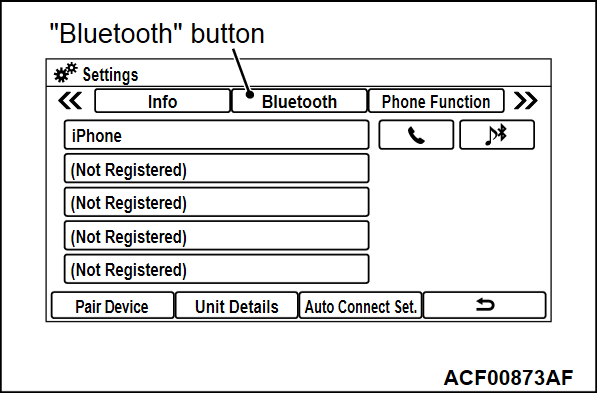

2. Select "Bluetooth" button on "Settings" screen.
3. Select the Bluetooth® device which you want to delete.

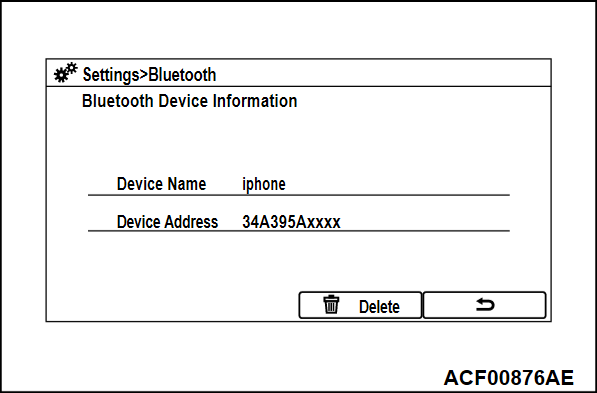

4. Select "Delete" button on "Bluetooth Device Information" screen.
5. A message window is displayed. Select "Yes" button
