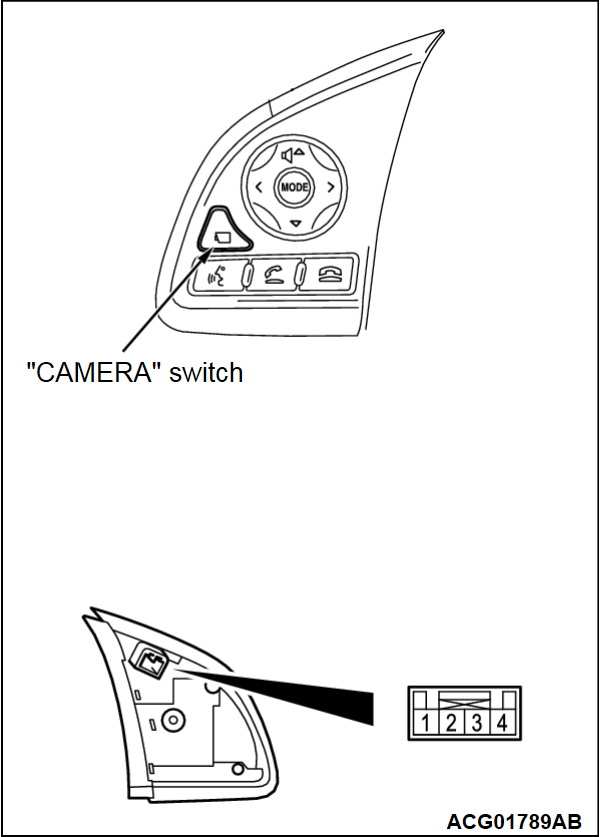

STEERING WHEEL CAMERA SWITCH CHECK


Switch PositionTester ConnectionResistance
"CAMERA" switch pushed1 - 2Approximately 13.0 KΩ



ILLUMINATION CHECK
Apply the battery voltage to the connector terminal No.3, ground the terminal No.4, and then check that the illumination lights up.
