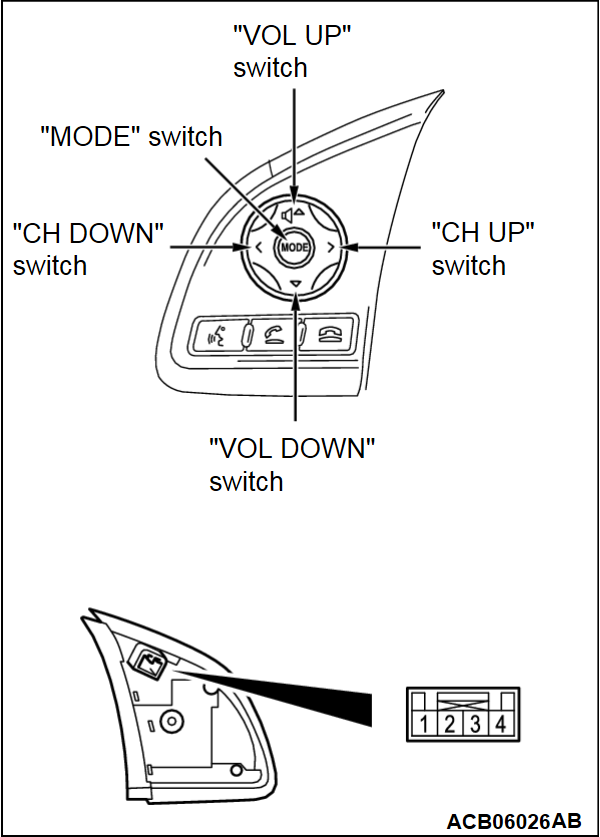

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH CHECK


Switch PositionTester ConnectionMeasurement Value
"MODE" switch pushed1 - 2Approximately 270 Ω
"CH UP" switch pushedApproximately 740 Ω
"CH DOWN" switch pushedApproximately 1.3 kΩ
"VOL UP" switch pushedApproximately 2.1 kΩ
"VOL DOWN" switch pushedApproximately 3.1 kΩ



ILLUMINATION CHECK
Apply the battery voltage to the connector terminal No. 3, ground the terminal No. 4, and then check that the illumination lights up.
