REMOVAL AND INSTALLATION


Pre-removal and Post-installation Operation
  • Liftgate upper trim (Refer to GROUP 52A - Liftgate Trim ).
Removal
<<A>>1.High-mounted stoplight assembly


REMOVAL SERVICE POINT


<<A>> HIGH-MOUNTED STOPLIGHT ASSEMBLY REMOVAL

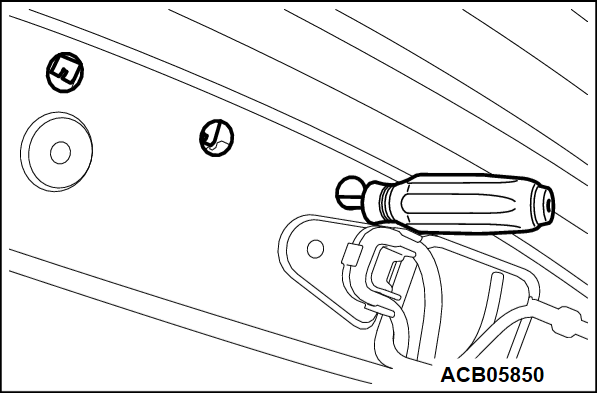

1. Insert a flat-tipped screwdriver into the service hole on the liftgate, and then push up the hook.

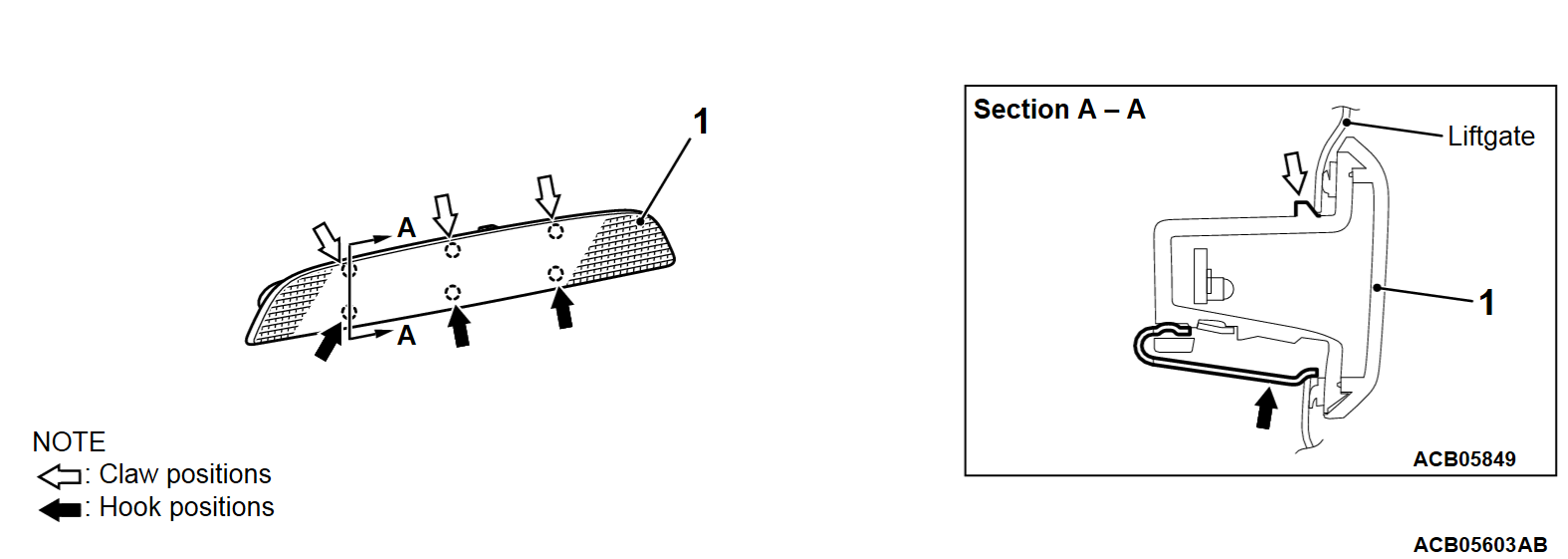

2. Push the high-mounted stoplight assembly down to release the hook, and then remove by disengaging the claw from the liftgate.
