HAZARD WARNING LIGHT SWITCH CHECK

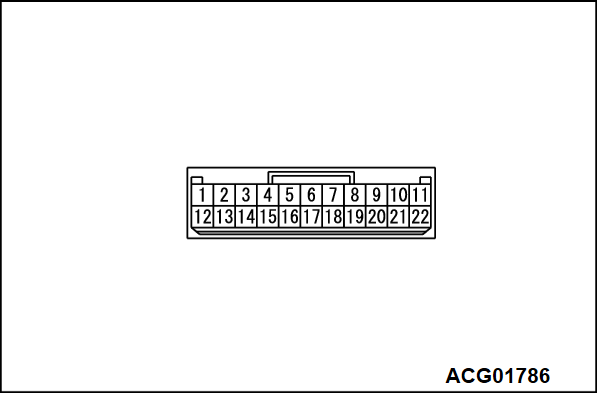

Switch resistance check
Switch positionTerminal numberSpecified condition
OFF 2 - 11Open circuit
ON (Push)Continuity exists (2 ohms or less)
Switch resistance check
Switch positionTerminal numberSpecified condition
OFF 2 - 11Open circuit
ON (Push)Continuity exists (2 ohms or less)

Illumination check
Battery voltageTerminal numberNormal condition
At no energization12 (+) - 16 (-)Not illuminated
With current supplyIlluminated
Illumination check
Battery voltageTerminal numberNormal condition
At no energization12 (+) - 16 (-)Not illuminated
With current supplyIlluminated
