REMOVAL AND INSTALLATION

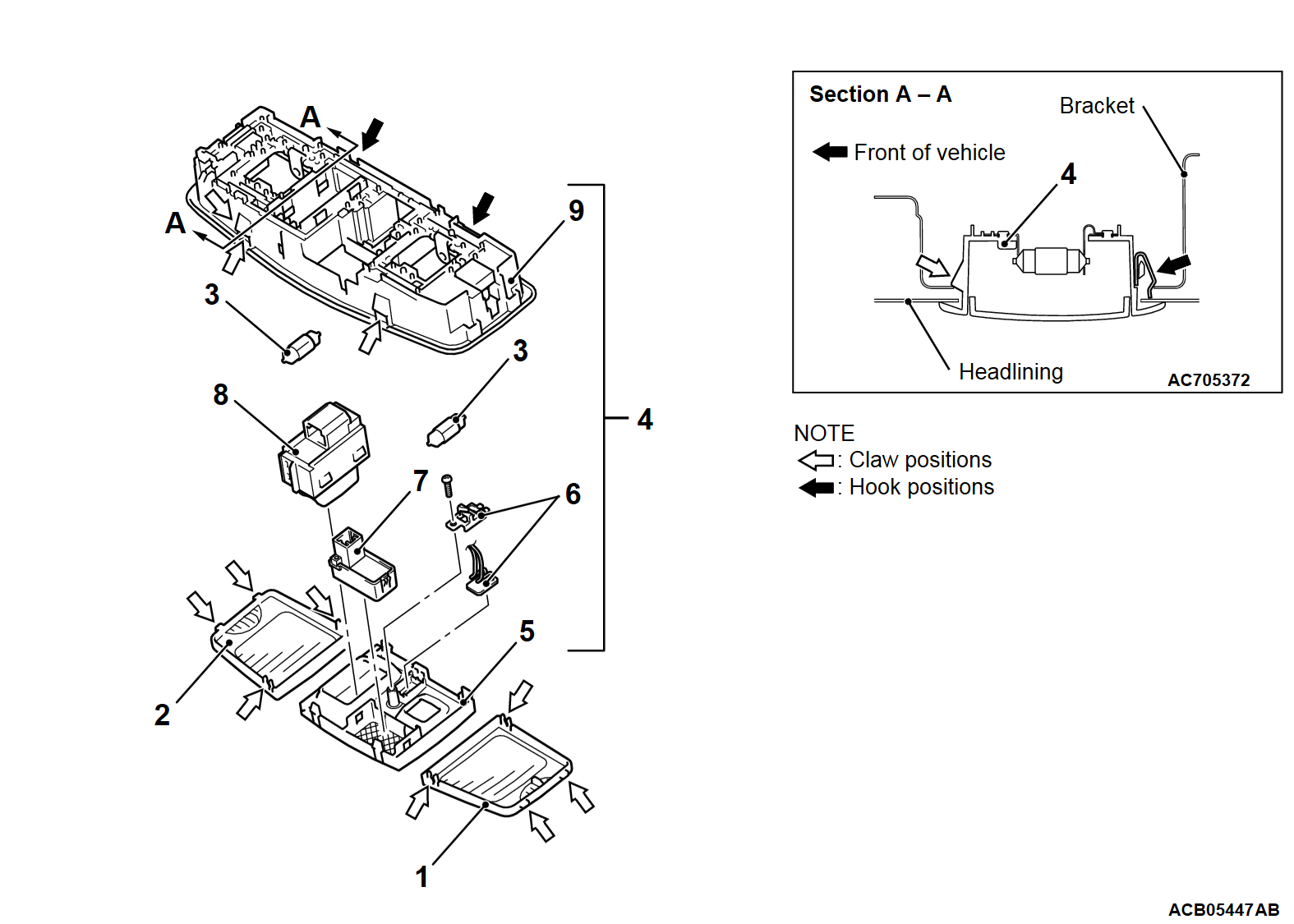

FRONT DOME LIGHT
Removal steps
1.Front dome light lens LH
2.Front dome light lens RH
3.Front dome light bulb
<<A>>4.Front dome light
5.Front dome light cover
6.Downlight unit
>>A<<7.Microphone unit
8.Sunroof switch
9.Front dome light body

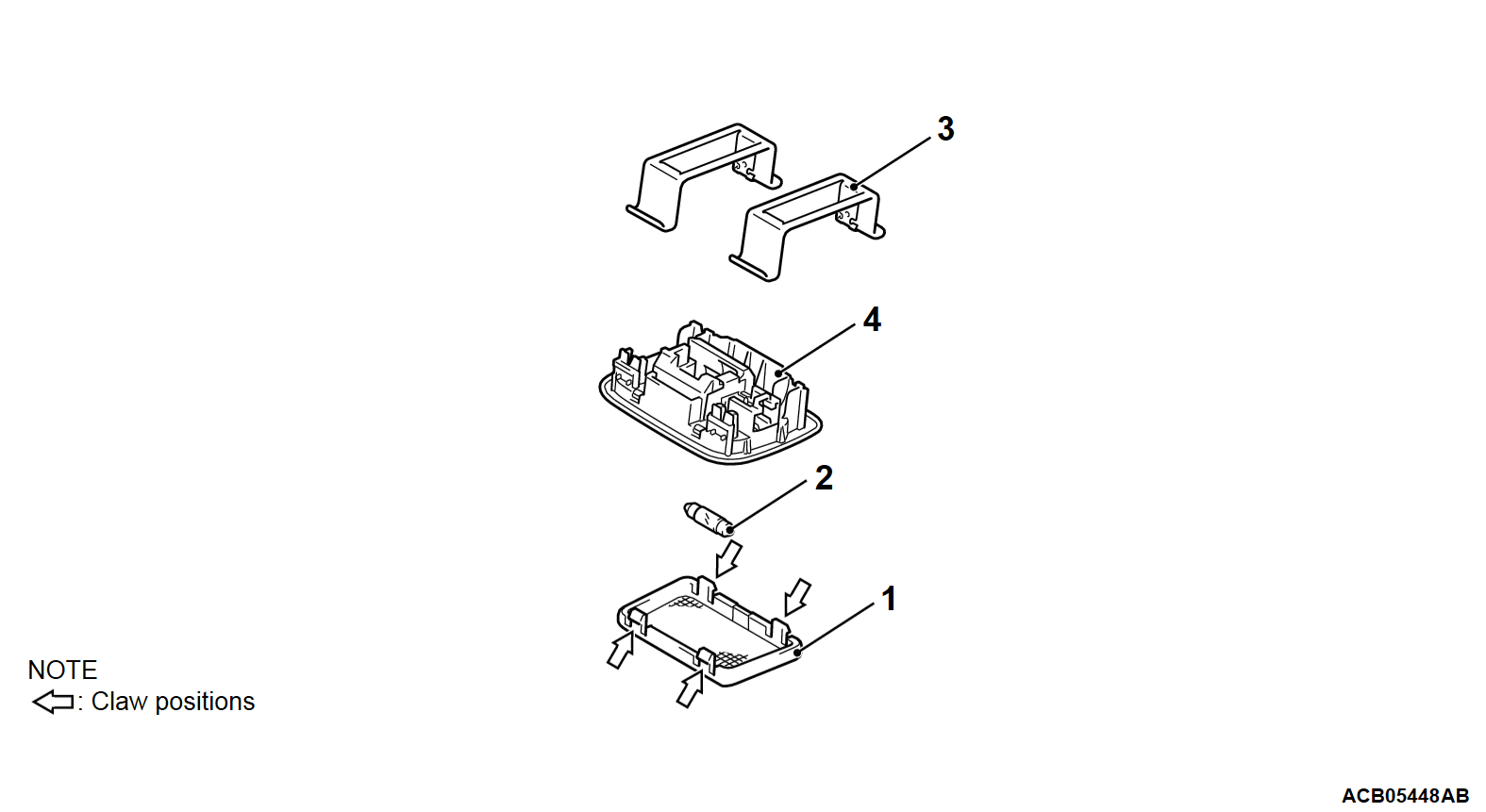

REAR DOME LIGHT, LUGGAGE COMPARTMENT LIGHT
Rear dome light removal steps
1.Rear dome light lens
2.Rear dome light bulb
•Headlining (Refer to GROUP 52A - Headlining ).
3.Dome light clip
4.Rear dome light body
Luggage compartment light removal steps
1.Luggage compartment light lens
2.Luggage compartment light bulb
•Headlining (Refer to GROUP 52A - Headlining ).
3.Dome light clip
4.Luggage compartment light body


REMOVAL SERVICE POINT


<<A>> FRONT DOME LIGHT REMOVAL
Push the front dome light toward the vehicle rear to bend the hook, and then remove by disengaging the claw from the headlining.




INSTALLATION SERVICE POINT

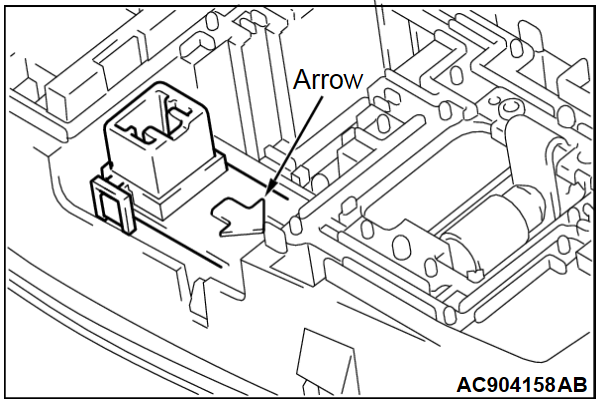

>>A<< MICROPHONE UNIT INSTALLATION
Install the microphone unit so that the arrow face toward the driver's seat.
