KEY REMINDER SWITCH CHECK

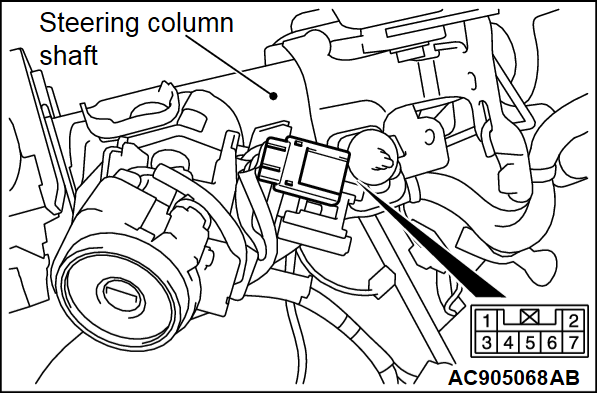

With the key reminder switch mounted to the vehicle, disconnect the key reminder switch connection connector, and then perform the continuity check.

Key statusTerminal numberNormal condition
Key removed4 - 6Continuity exists (2 ohms or less)
Key inserted4 - 6No continuity
Key statusTerminal numberNormal condition
Key removed4 - 6Continuity exists (2 ohms or less)
Key inserted4 - 6No continuity
