IGNITION SWITCH CHECK

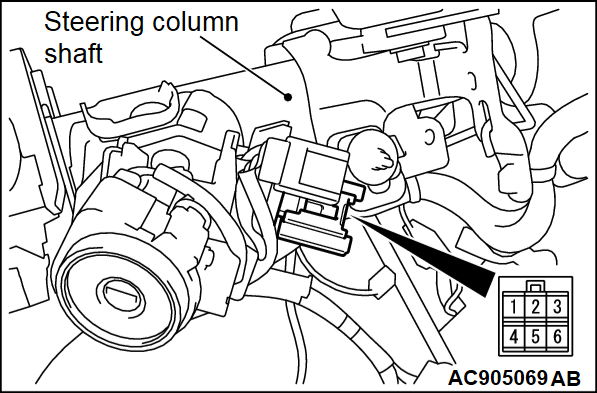

With the ignition switch mounted to the vehicle, disconnect the ignition switch connection connector, and then perform the continuity check in each ignition key position.
Ignition key position
Terminal number
Normal condition
LOCK
1 - 2, 1 - 4, 1 - 5, 1 - 6
No continuity
ACC
1 - 6
Continuity exists (2 ohms or less)
ON
1 - 2 - 4 - 6
Continuity exists (2 ohms or less)
START
1 - 2 - 5
Continuity exists (2 ohms or less)
Ignition key position
Terminal number
Normal condition
LOCK
1 - 2, 1 - 4, 1 - 5, 1 - 6
No continuity
ACC
1 - 6
Continuity exists (2 ohms or less)
ON
1 - 2 - 4 - 6
Continuity exists (2 ohms or less)
START
1 - 2 - 5
Continuity exists (2 ohms or less)
