BATTERY CURRENT SENSOR CHECK <2.4L Engine>
CURRENT SENSOR RESISTANCE VALUE

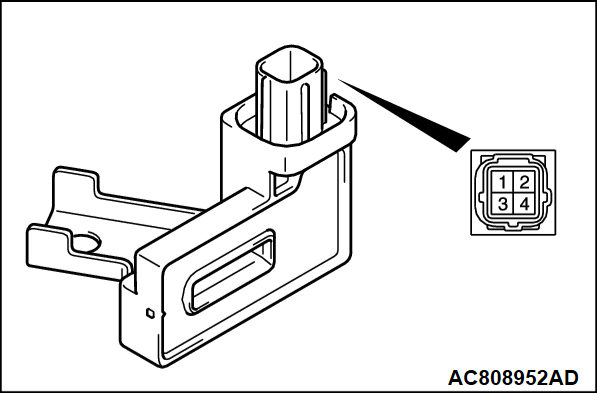

Use the circuit tester to measure the resistance value between battery current sensor connector terminals.
Standard value:
1.
Terminal No. (positive terminal - negative terminal)
Resistance (kΩ)
1 - 3
3 - 10
1 - 4
Less than 0.5
3 - 4
3 - 10
TEMPERATURE SENSOR RESISTANCE VALUE
Using the circuit tester, measure the resistance value between the battery current sensor connector terminal No. 2 and No. 3.
Standard value:
1.
Temperature °C (°F)
Resistance (kΩ)
0 (32)
4.5 - 7.2
25 (77)
1.6 - 2.5
40 (104)
0.96 - 1.40
