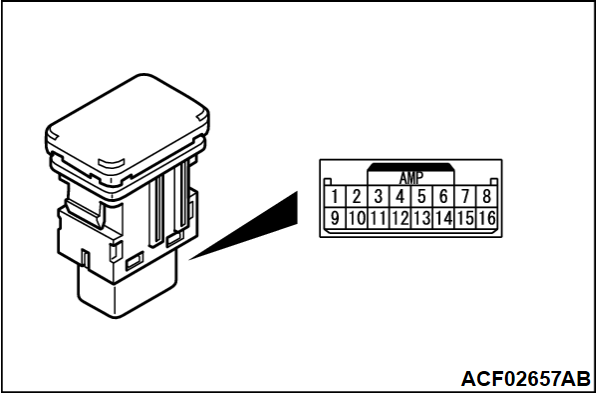

BLIND SPOT WARNING SWITCH INSPECTION


ON/OFF CHECK

Switch positionTester connectionSpecified condition
ON (switch pushed)11 - 14Continuity exists (2 ohms or less)
OFF (switch released)Open circuit
Switch positionTester connectionSpecified condition
ON (switch pushed)11 - 14Continuity exists (2 ohms or less)
OFF (switch released)Open circuit



ILLUMINATION CHECK

Battery voltageTester connectionSpecified condition
At no energisation12 (+) - 13 (-)Not illuminated
With current supplyIlluminated
Battery voltageTester connectionSpecified condition
At no energisation12 (+) - 13 (-)Not illuminated
With current supplyIlluminated
